Epson VIGOR 3300 User Manual
Page 73
Vigor3300 Series User’s Guide
69
F
F
o
o
r
r
P
P
o
o
r
r
t
t
B
B
a
a
s
s
e
e
V
V
L
L
A
A
N
N

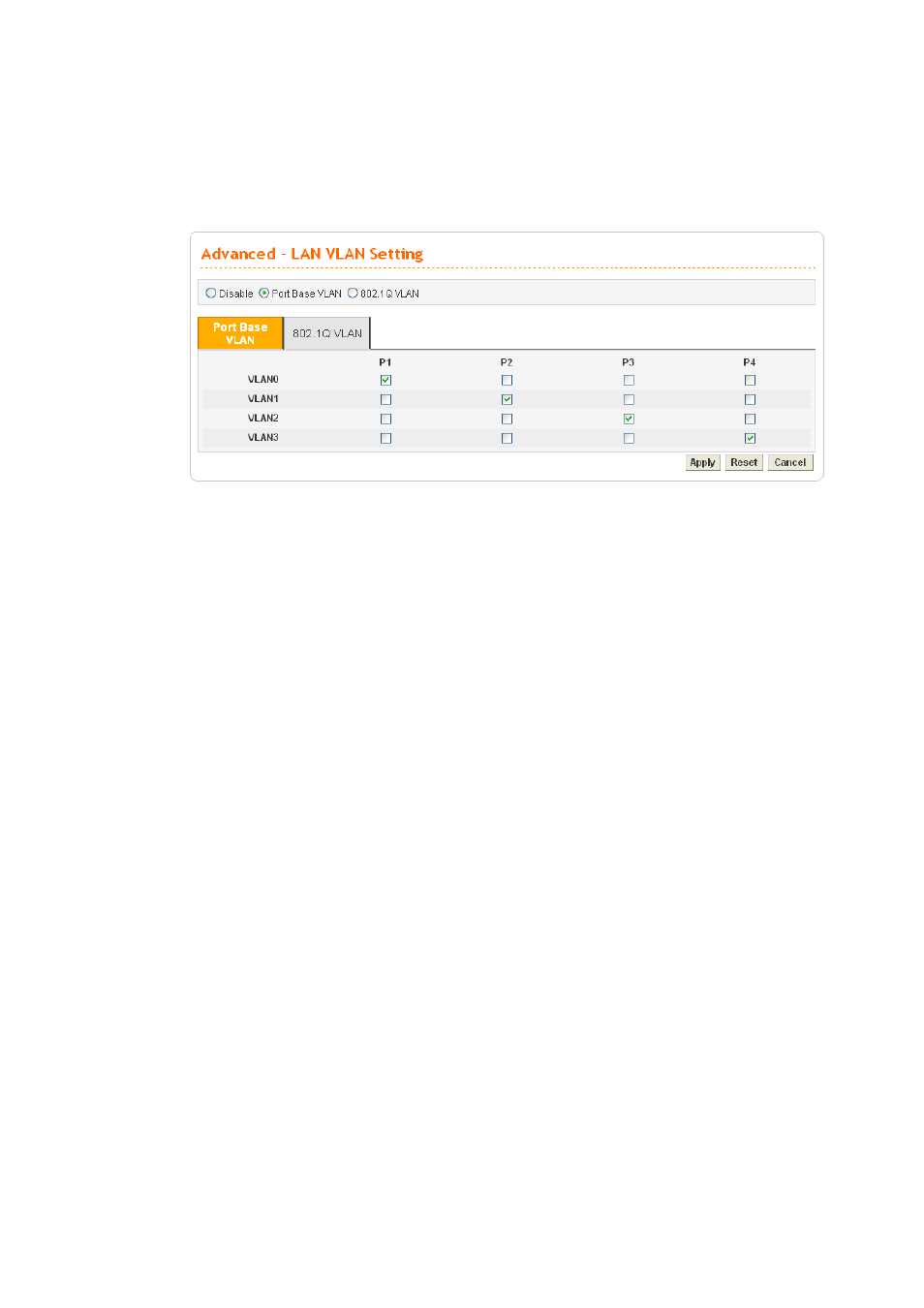

In the Advanced group, click the LAN VLAN option. There are two VLAN settings offered
here for you to configure. If you click Disable, no configuration can be completed. Please
choose Port Base VLAN to open the following page.
P1 – P4
Check the box to make the computer connecting to the port
being grouped in the specified VLAN. Be aware that each port
can be grouped in different VLAN at the same time only if you
check the box. For example, if you check the boxes of
VLAN0-P1 and VLAN1-P1, you can make P1 to be grouped
under VLAN0 and VLAN1 simultaneously.
VLAN 0- 3
This router allows you to set 4 groups of virtual LAN.
Apply
After finishing the settings, please click Apply.
Reset
In addition, you can click Reset to reset the VLAN setting as
default. A dialog will be prompted for you to ask confirmation.
Click OK.
