Vigor3300 Series User’s Guide 34
3 3 . . 1 1 . . 8 8 D D i i a a g g n n o o s s t t i i c c T T o o o o l l s s
In some cases, a user may need to know some information about the router, such as static or
dynamic databases, or other routing information. The Vigor3300 Series supports four
functions, Routing Table, ARP Cache Table, DHCP Assignment Table, and NAT Active
Sessions Table for the user to review such information.

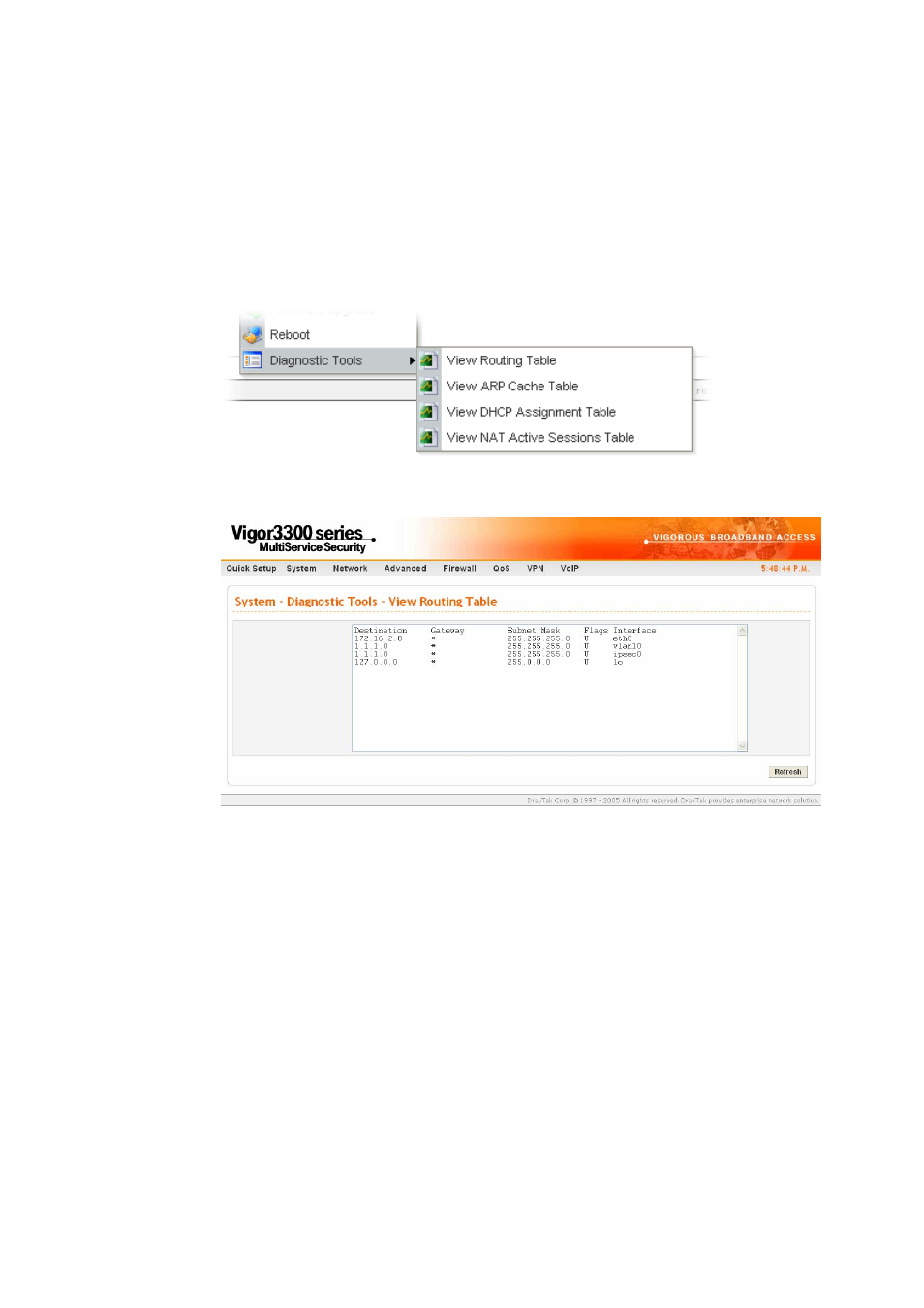

In the System group, click the Diagnostic Tools option
z
Select View Routing Table to get the following page:
Destination Displays the destination IP address for various routings.
Gateway Displays the default gateway.
Subnet Mask Displays the subnet mask for various routings.
Flags Displays the status of the routing entries.
Interface Denoted by eth0 if it is a LAN interface and eth1 if it is a
WAN interface.
Refresh Click Refresh to re-display this web page for getting newest
routing information.
