RGB 168xi

xi

xi

xi

xi • Specifications, Accessories and Part #s

A-7

Adapter Plates

A variety of optional architectural adapter plates for
pass-through connections may be ordered for these
interfaces. The RGB 168xi can hold up to four (4) input
adapter plates and two (2) output adapter plates. The
following configurations of adapters could be installed in
either interface:

Input adapter plates:

• four input adapter plates with a “plate size” of one,

• two input adapter plates with a plate size of one and

one input adapter plate with a plate size of two, or

• two input adapter plates of plate size two.

Output adapter plates:

• one output adapter plate with a plate size of two, or

• two output adapter plates of plate size one.

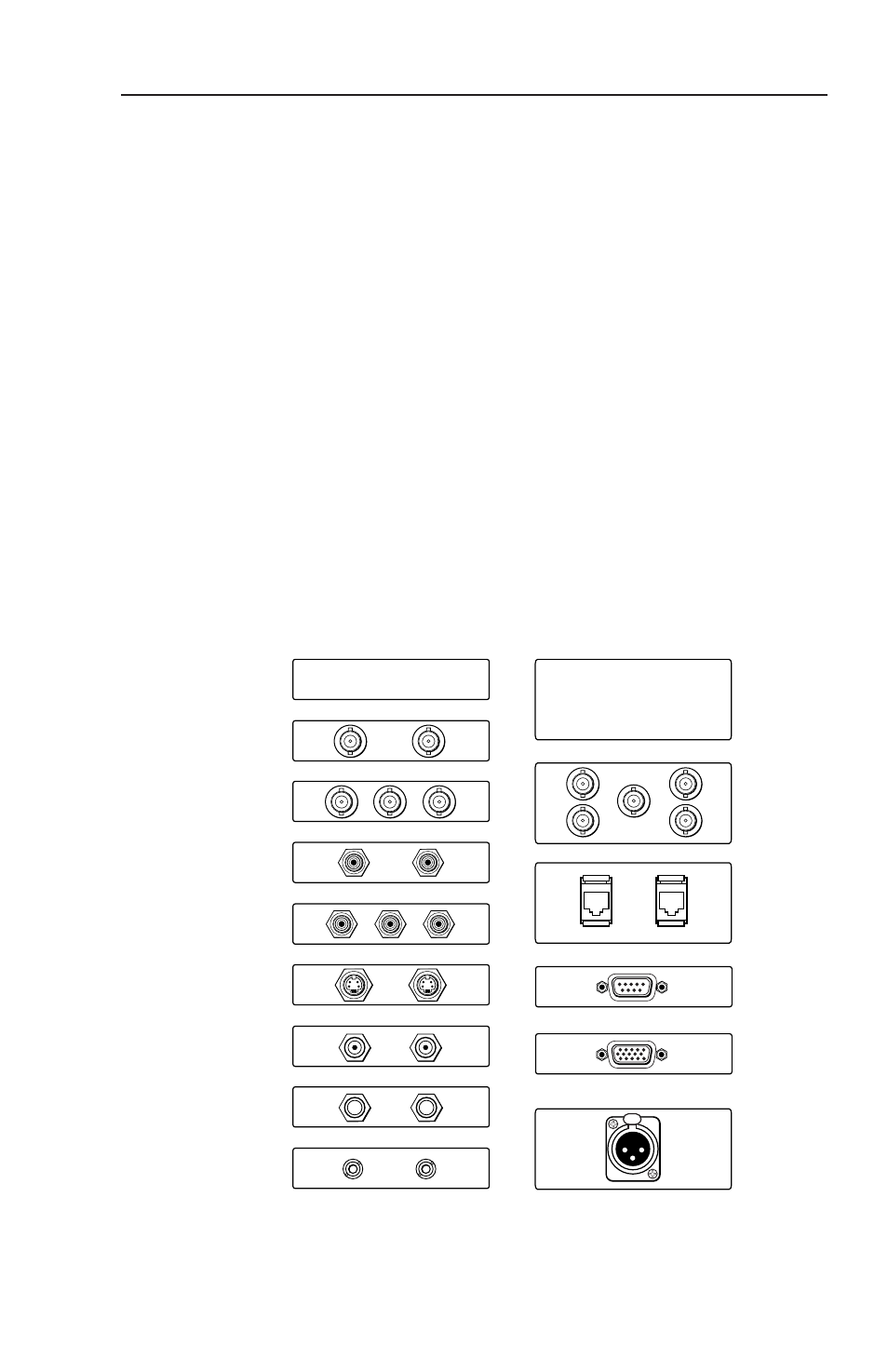

Typical adapter plates are shown below..

Architectural adapter plates

2 - BNC

Blank Plate (no connector)

Single Space

Double Space

Blank Plate (no connector)

5 - BNC (Double)

2 - RJ-11

1 - 3-pin XLR Connector

2 - RCA to Solder Cups

3 - RCA to Solder Cups

2 - S-video

2 - F Connectors

1 - D-9 Pass Through Connector

1 - HD-15 Pass Through Connector

2 - 1/4" Stereo Phono

2 - 3.5mm Stereo Mini

3 - BNC
