RGB 168xi xi xi xi xi • Installation and Operation
Installation and Operation, cont’d
2-16
4. Circuit overloading — Connect the equipment to the
supply circuit and consider the effect that circuit
overloading might have on overcurrent protection and
supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this
concern.
5. Reliable earthing (grounding) — Maintain reliable
grounding of rack-mounted equipment. Pay particular
attention to supply connections other than direct
connections to the branch circuit (e.g. use of power
strips).

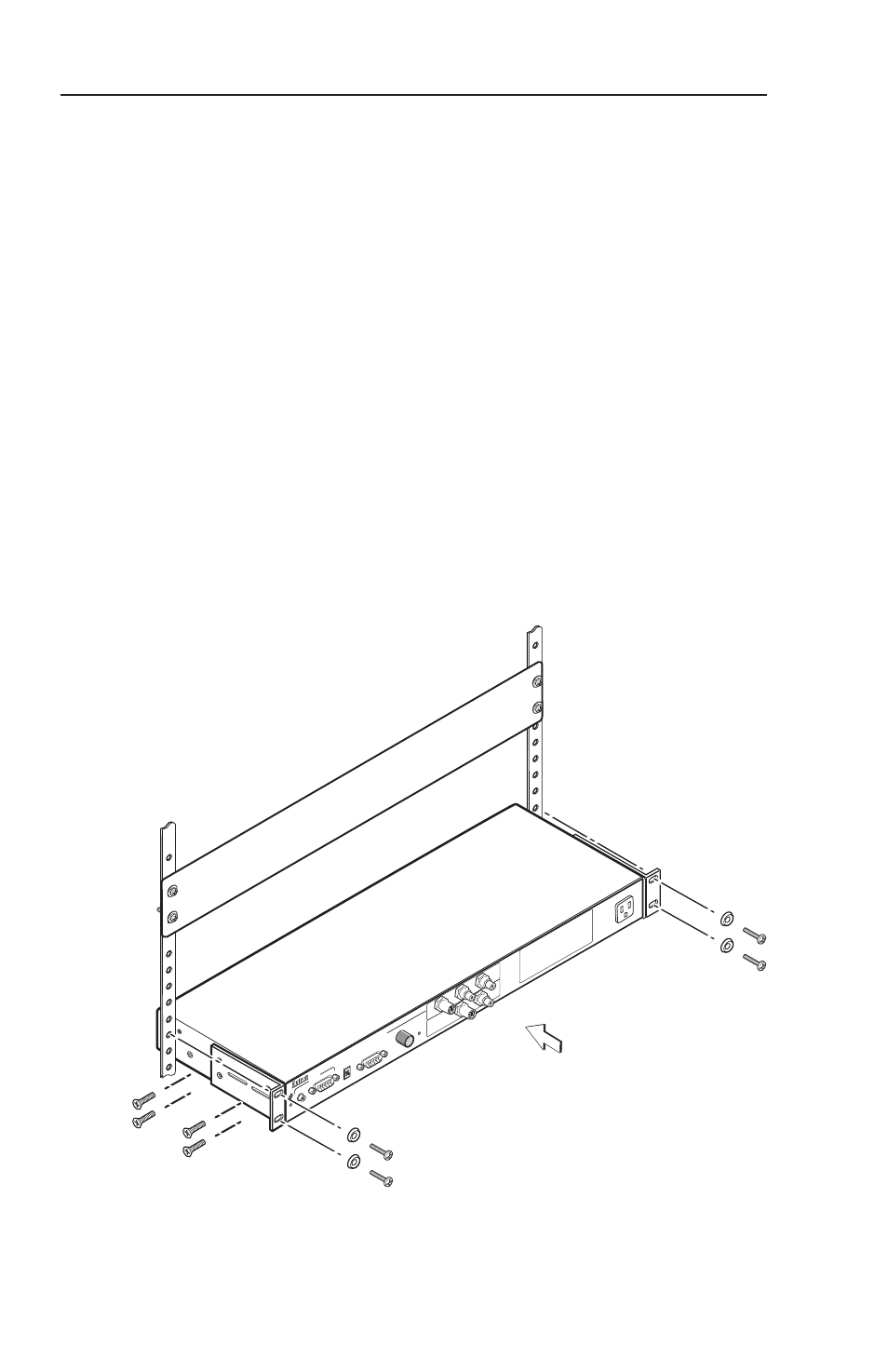

Rack mounting
1 . Attach the Extron MBD 149 through-desk/rack
mounting brackets (part #70-077-03) to the interface
with the provided machine screws, as shown below.
2 . Attach the interface to the rack with the provided
machine screws.
UNSWITCHED
600 W
ATTS
MAX.
RGB 168 xi
INPUTS
AU DIO
ANALOG
MIN/MAX
UNIVERSAL INTERF
ACE
W /ADSP
ID PIN 14 ID PIN 11
BUFFERED LOCAL
MONIT OR OUTPUT
Rack mounting
