RGB 168xi

xi

xi

xi

xi • Installation and Operation

2-17

Cabling

Attach cables to the interface as detailed in the steps below.
A diagram later in this section shows how the system looks
when cabling is finished.

1

. Connect the computer’s video output to the interface’s

front panel analog/ECL 9-pin D connector. If the
computer will provide the audio input, a VGA with
audio combination cable, such as an Extron
VGA M MHRA series cable (#26-490-01 to
#26-490-05), can be used.

2

. Connect the stereo audio source (computer or other

device such as a CD player or tape deck) to the front

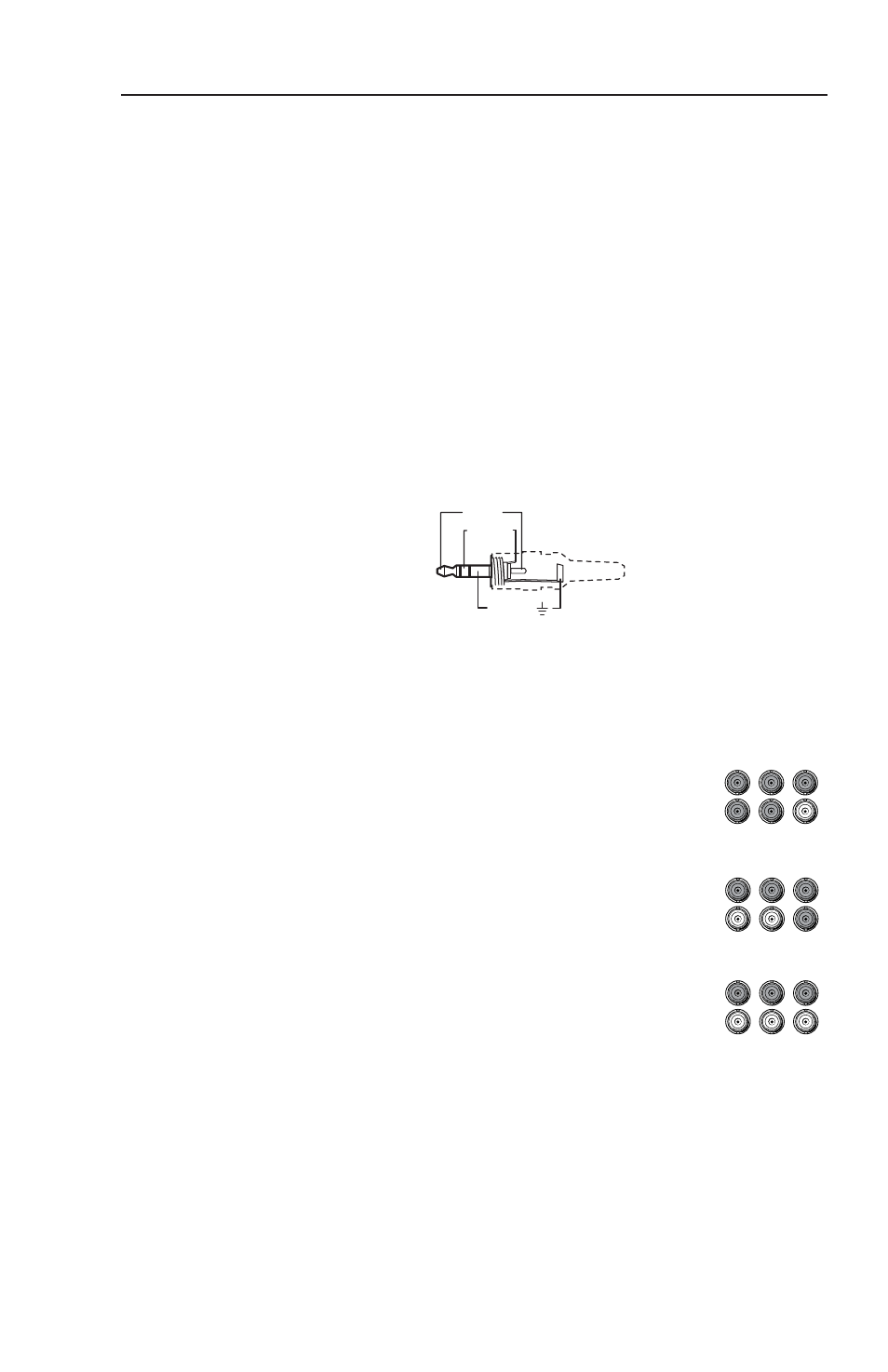

panel. The audio jack should be wired as shown below.

Sleeve ( )

Ring (R)

Tip (L)

Unbalanced

3

. Connect the video output device’s (projector’s,

monitor’s) coaxial BNC cable to the rear panel BNC
connectors.

For RGBHV (separate H and V sync)
output, connect the cables as shown at
left.

For composite sync (RGBS), connect the
sync cable to the connector labeled “S”.

For sync on green (SOG, RGsB), connect
the cables as shown here, and also select
the SOG option on the rear panel DIP
switch.

4

. Connect the local monitor’s cable to the front panel’s

15-pin HD female local monitor output connector. Set
the front panel monitor ID bit DIP switches to On if no
local monitor will be used.

RGBHV

R

H

G

V

B

S

RGBS

R

H

G

V

B

S

RGsB

R

H

G

V

B

S
