RGB 168xi xi xi xi xi • Installation and Operation
Installation and Operation, cont’d
5 . Connect powered speakers or another audio device to
the rear panel captive screw connector. Follow the
wiring guide shown below. Insert the wires into the
appropriate openings. Tighten the screws on top to
fasten the wires, then insert the wired audio connector
into the audio output connector on the interface rear
panel.
CAUTION Connect the sleeve to ground (GND).
Connecting the sleeve to a negative (-)
terminal will damage the audio output circuits.
Unbalanced Output
Tip
NO Ground Here
Sleeve (s)
Tip
NO Ground Here
Balanced Output
Tip
Ring
Sleeve (s)
Tip
Ring

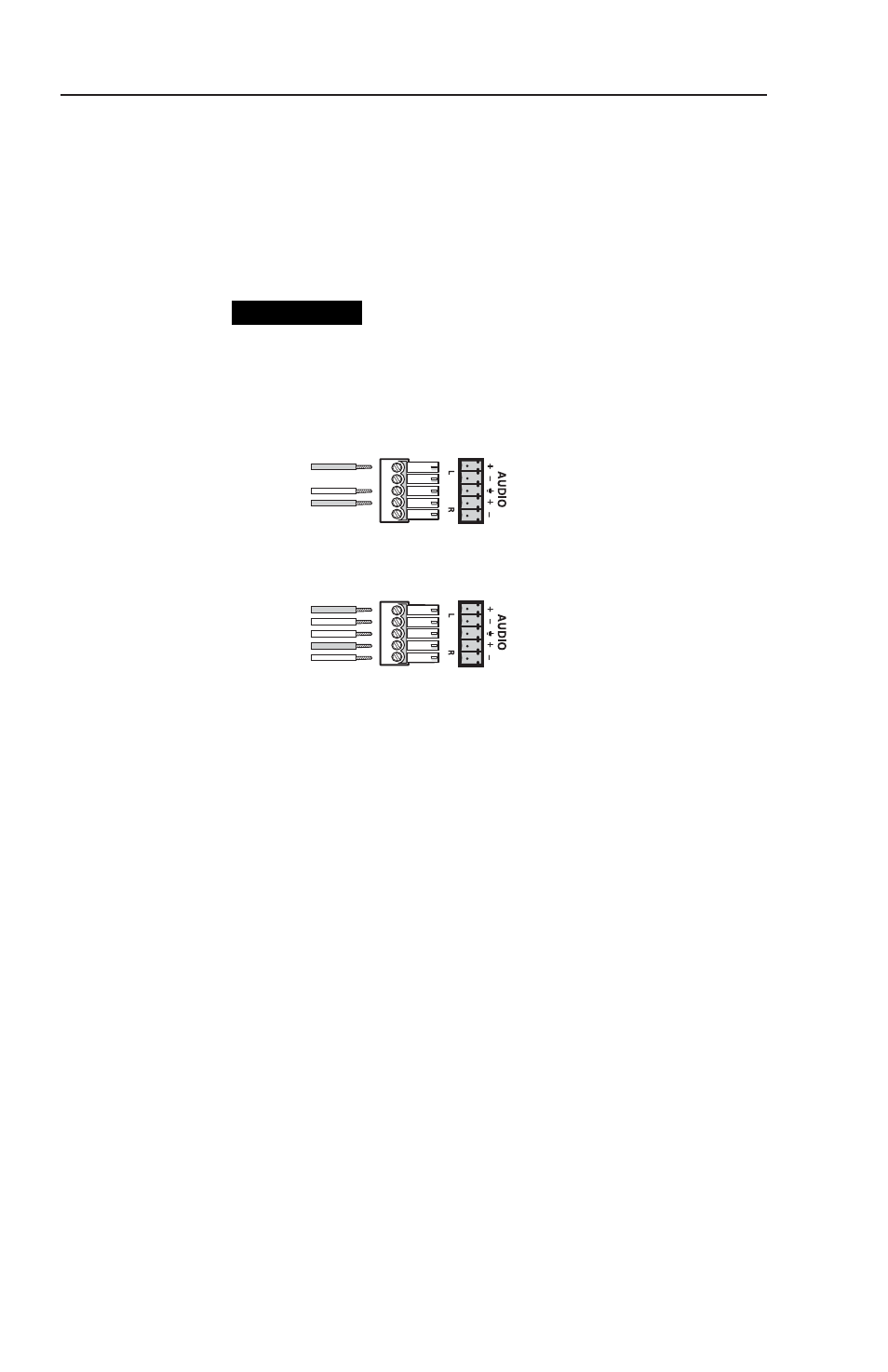

Wiring captive screw connectors for audio output
6 . Set the DIP and toggle switches. Use the “Front Panel”
and “Rear Panel” sections of this chapter as a guide.
7 . Connect power cords and turn on the devices in the
following order: display and audio output devices
(projectors, monitors, speakers), interface, and input
device (computer).
The system is now ready for operation.
The illustration on the facing page shows typical system
installation and cable connections.
2-18
