Electrical Connection SMA Solar Technology AG
32 SB12-17-IA-en-52 Installation Guide

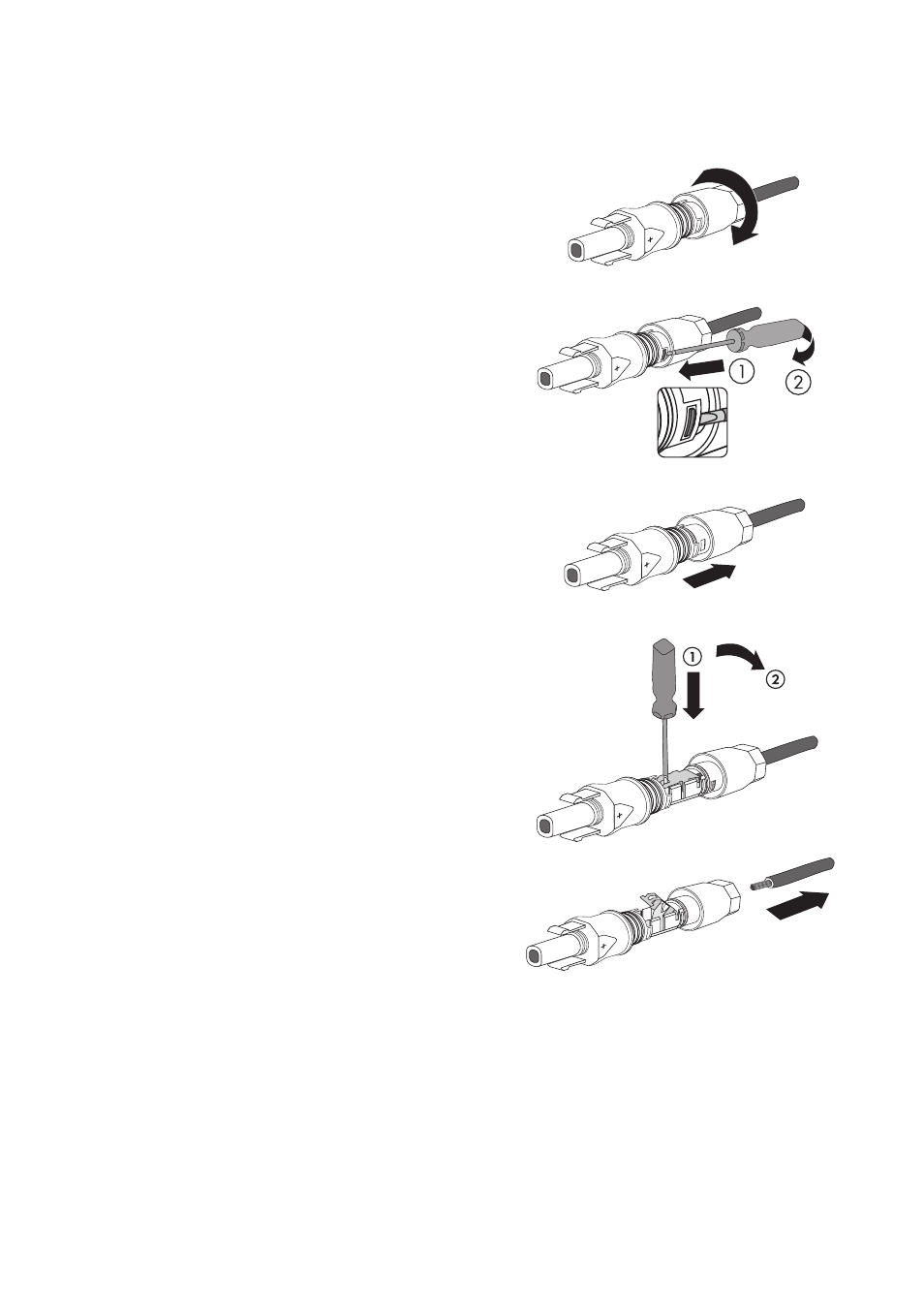

5.4.3 Opening the DC Plug Connector
1. Screw the threaded joint off.
2. To release the plug connector, slot a screw driver
into the side catch mechanism and lever out.Use a
screwdriver with a width of 3.5 mm.
3. Carefully pull the DC plug connector apart.
4. Declamp the clamping clip. Use a screwdriver with
a width of 3.5 mm.
5. Remove the cable.
☑ The cable is now removed from the DC plug connector.
