SMA Solar Technology AG 5 Connection
Installation Manual SWWEBCONDM-IA-en-16 17

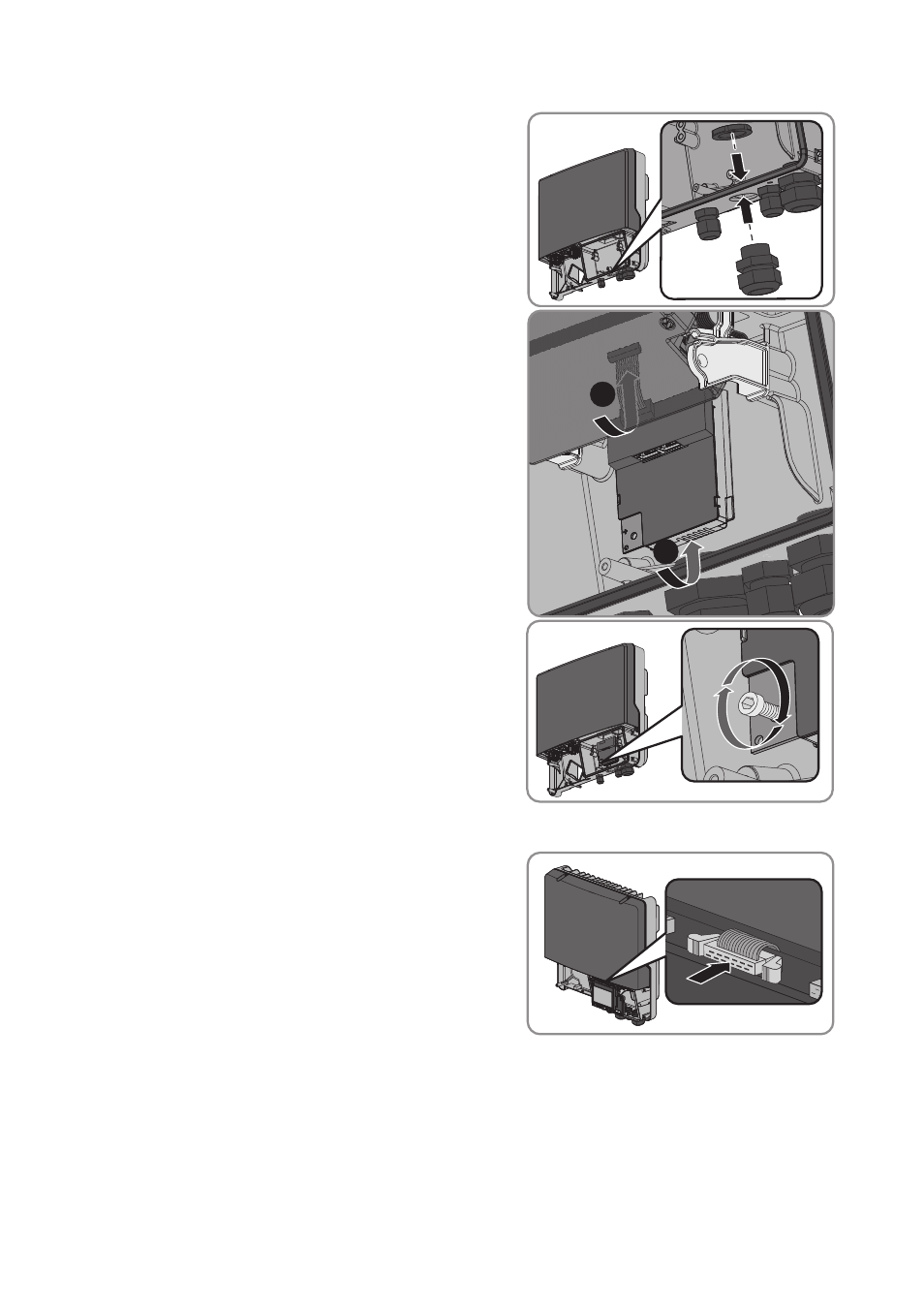

5. Attach the cable gland to the enclosure opening
using the counter nut.
6. Insert the Speedwire/Webconnect data module
and slide the ribbon cable upwards behind the
display. The key on the top edge of the Speedwire/
Webconnect data module must fit into the hole in
the plastic retainer in the inverter.
7. Fasten the Speedwire/Webconnect data module
hand-tight using a hexagon socket screw
(AF 3, torque: 1.5 Nm).
8. Flip the display down.
9. Plug the ribbon cable plug onto the center
connector strip.
10. Stick one of the labels with the data for registration in Sunny Portal (PIC and RID) on the outside
of the inverter in the vicinity of the type label.
11. If you do not wish to proceed immediately with the connection of the Speedwire/Webconnect
data module, close the inverter (see inverter installation manual).
1
2
