70 First steps with the iTNC 530
1
.3 Pr
ogr
amming the first par
t
Programming a simple contour

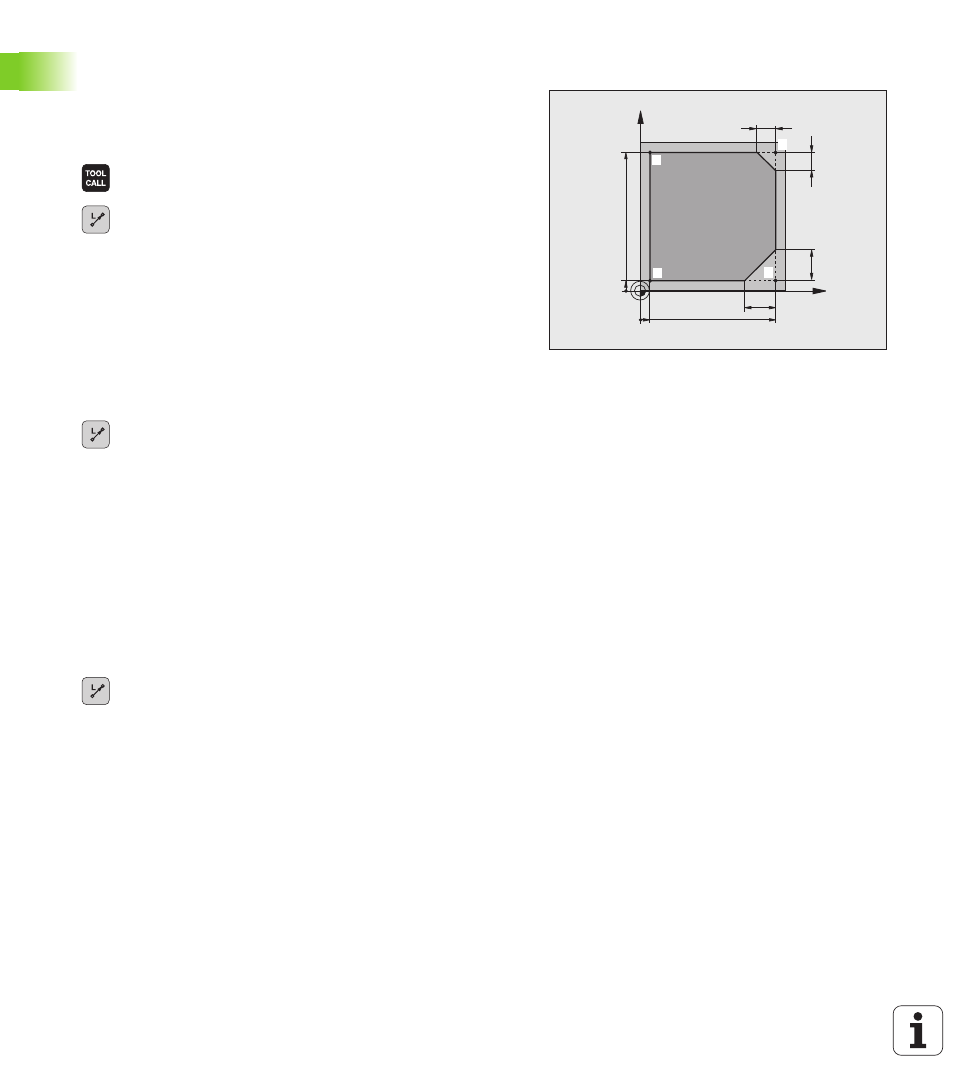

The contour shown to the right is to be milled once to a depth of 5 mm.
You have already defined the workpiece blank. After you have initiated
a dialog through a function key, enter all the data requested by the
TNC in the screen header.
 Call the tool: Enter the tool data. Confirm each of your
entries with the ENT key. Do not forget the tool axis
 Retract the tool: Press the orange axis key Z in order
to get clear in the tool axis, and enter the value for the
position to be approached, e.g. 250. Confirm with the
ENT key
 Confirm Radius comp.: RL/RR/no comp? by pressing
the ENT key: Do not activate the radius compensation
 Confirm Feed rate F=? with the ENT key: Move at
rapid traverse (FMAX)
 Confirm the Miscellaneous function M? with the
END key: The TNC saves the entered positioning
block
 Preposition the tool in the working plane: Press the
orange X axis key and enter the value for the position
to be approached, e.g. –20
 Press the orange Y axis key and enter the value for the
position to be approached, e.g. –20. Confirm with the
ENT key
 Confirm Radius comp.: RL/RR/no comp? by pressing
the ENT key: Do not activate the radius compensation
 Confirm Feed rate F=? with the ENT key: Move at
rapid traverse (FMAX)
 Confirm the Miscellaneous function M? with the
END key: The TNC saves the entered positioning
block
 Move the tool to workpiece depth: Press the orange
axis key and enter the value for the position to be
approached, e.g. –5. Confirm with the ENT key
 Confirm Radius comp.: RL/RR/no comp? by pressing
the ENT key: Do not activate the radius compensation
 Feed rate F=? Enter the positioning feed rate, e.g.
3000 mm/min and confirm with the ENT key
 Miscellaneous function M? Switch on the spindle and
coolant, e.g. M13. Confirm with the END key: The TNC
saves the entered positioning block
X
Y
9 5
95
5
10
10
20
20
1 4
2
3
