ND 522/523 59
I -
4
Tu
rn
ing
Specific
Oper
ations
Tool Table Usage

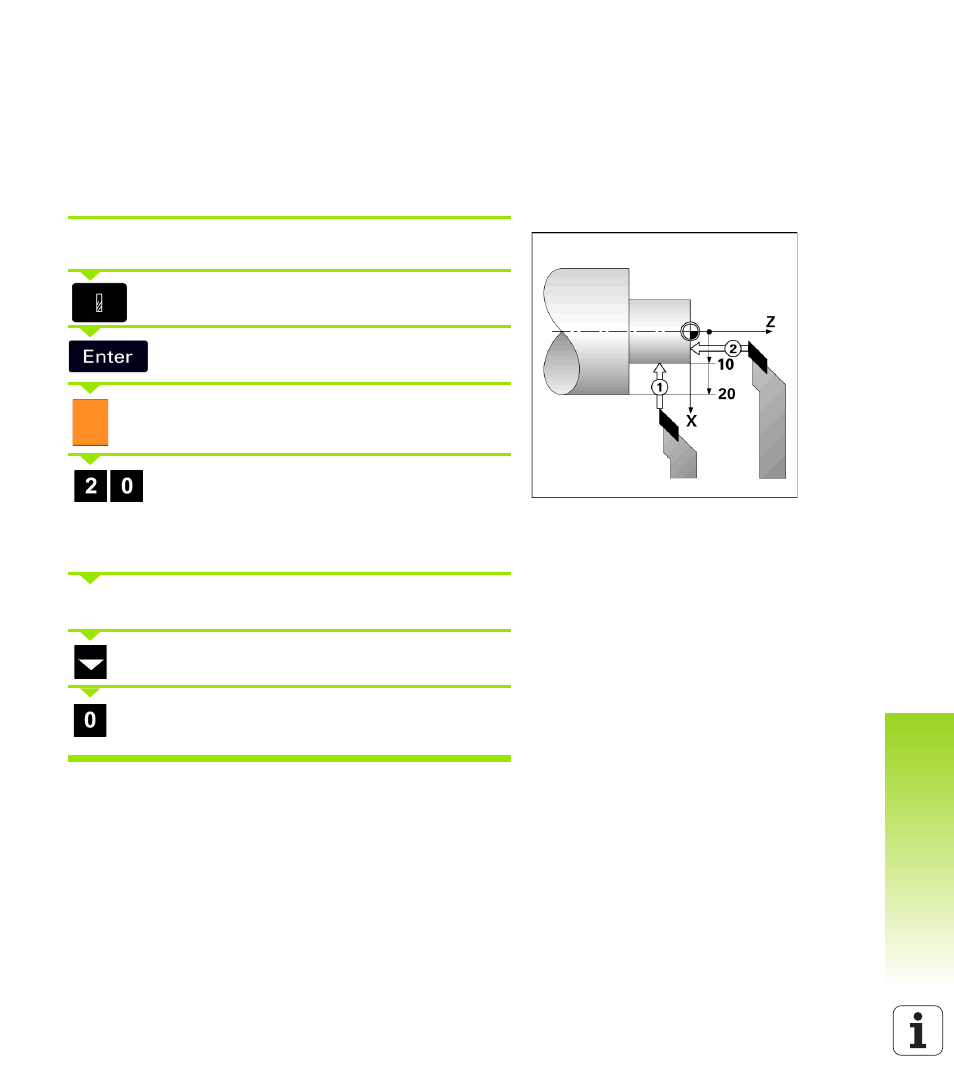

Example: Entering offsets into the tool table
Setting tool offsets using TOOL/SET
The TOOL/SET operation can be used to set a tool’s offset using a tool
when the diameter of the workpiece is known.
Touch the known diameter in the X axis.
Press the TOOL hard key. Scroll to the desired tool.
Press the Enter key.
Select the axis (X) key.
Enter the position of the tool tip, for example,
X=Ø 20 mm.
Remember to ensure the ND 522/523 is in diameter
display mode (Ø) to input a diameter value.
Touch the workpiece face with the tool.
Cursor to the Z axis.
Set the position display for the tool tip to zero, Z=0.
Press Enter.
