SCSI controller adapter removal
SCSI controller adapter removal

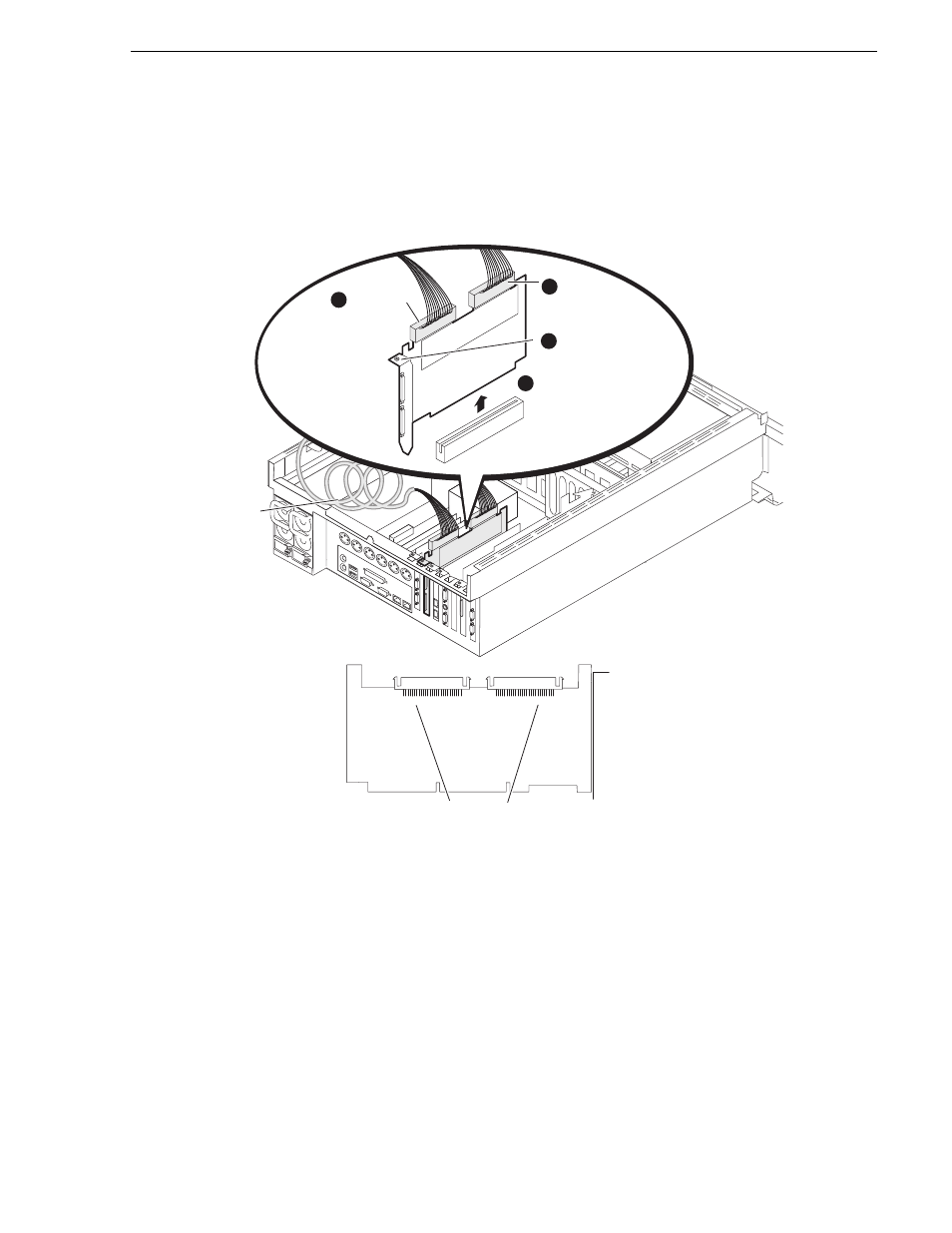

To remove the SCSI controller adapter, first remove the top cover and the codec
board, then proceed as illustrated.
On all models the RAID controller adapter is in rear panel slot six, as shown.
After replacing the RAID controller adapter you must do the procedure at
“Configuring NVRAM” on page 62 .
Remove board 4
Remove
screw 3
Remove
cable
SCSI 0* 1
Remove
cable
SCSI 1* 2
CH 0 CH 1
* Locate connector labeling on board under
SCSI connectors. Cable SCSI 0 connects
to CH 0. Cable SCSI 1 connects to CH 1.
Maintain
three coils
in cables
