122 K2 Media Client Service Manual July 28, 2008
Chapter 5 Removing and replacing FRUs
Dual Ethernet adapter removal
On some models the dual Ethernet adapter is optional.

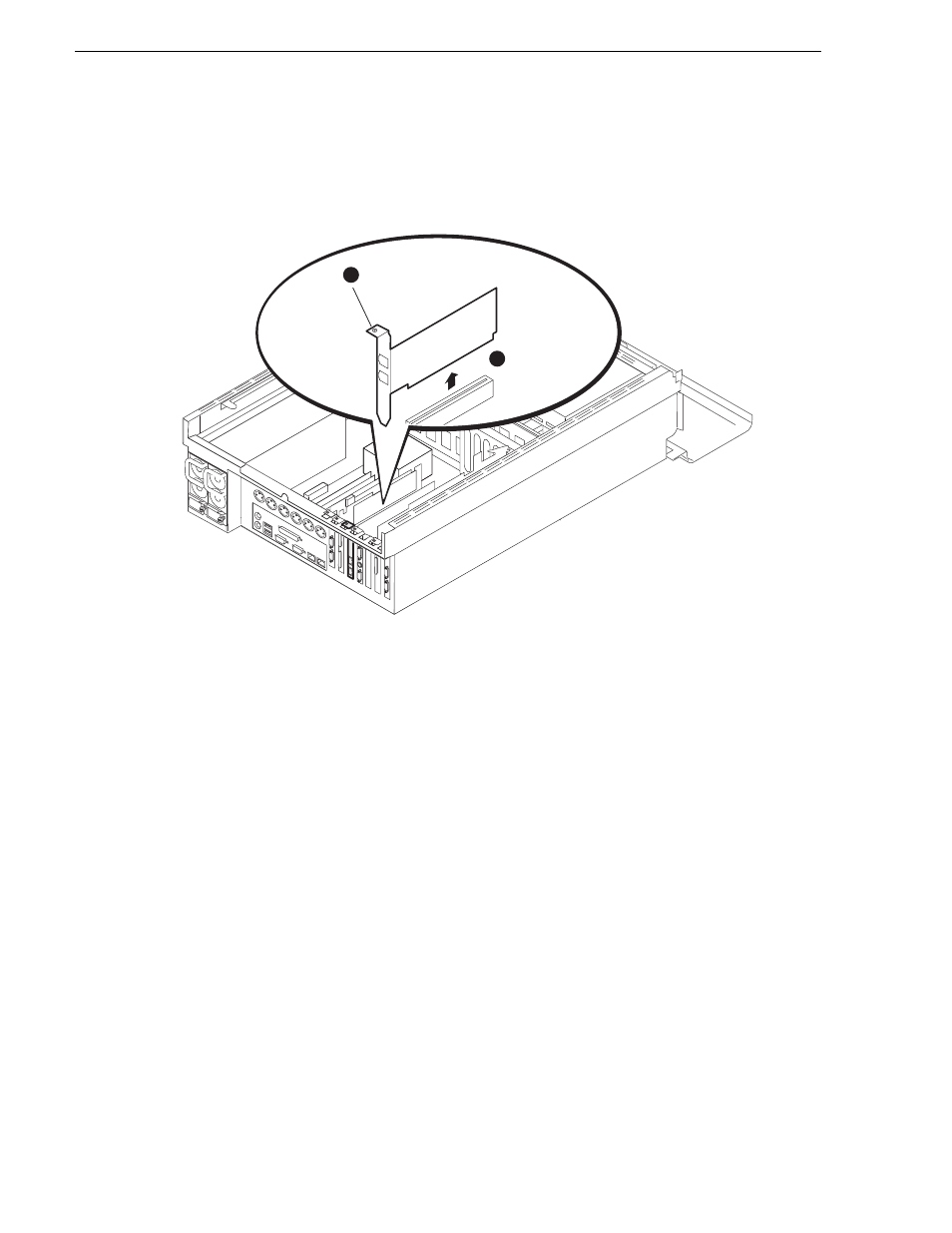

To remove the Dual Ethernet adapter, first remove the top cover and the codec board,
then proceed as illustrated.
On HD-00 models the Dual Ethernet adapter is in rear panel slot five, as shown. On
other models the Dual Ethernet adapter is in rear panel slot two.
Remove board 2
Remove
screw 1
