Chapter 5 Removing and replacing FRUs
Rear card guide removal

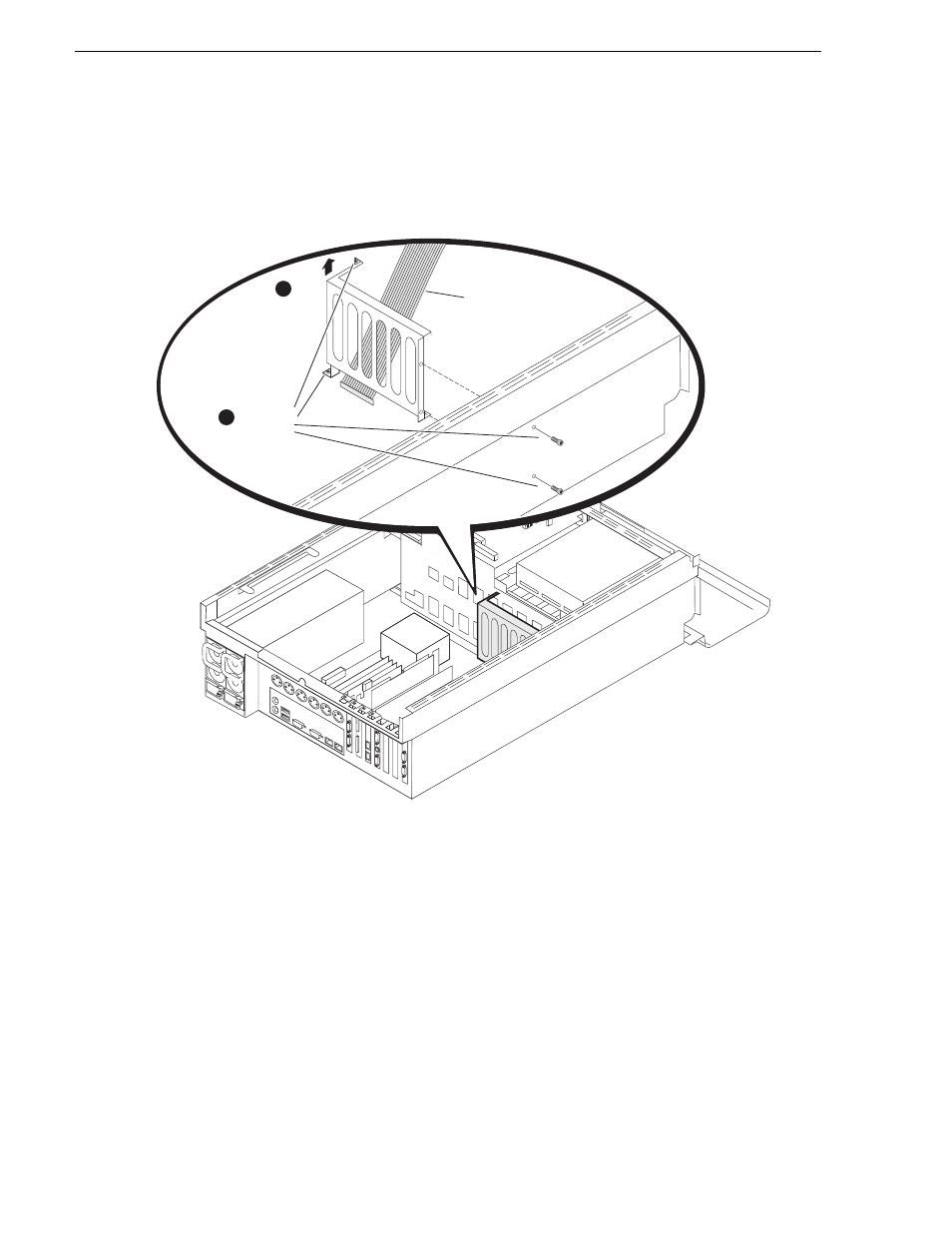

To remove the rear card guide, first remove the top cover, the codec board, and the
RTP board, then proceed as illustrated.
Remove
screws
DVD drive
cable routes
behind card
guide
1
Lift
out 2
