Chapter 5 Removing and replacing FRUs
External Parts Removal
This section provides the following procedures:
• “Opening the front bezel” on page 104
• “Fan module removal” on page 105
• “Front panel removal” on page 106
• “RAID disk removal” on page 107
• “Power supply removal” on page 107
All the parts in this category can be removed and replaced without opening the K2
Media Client cabinet and, except for the power supply, are accessible from the front
of the cabinet.

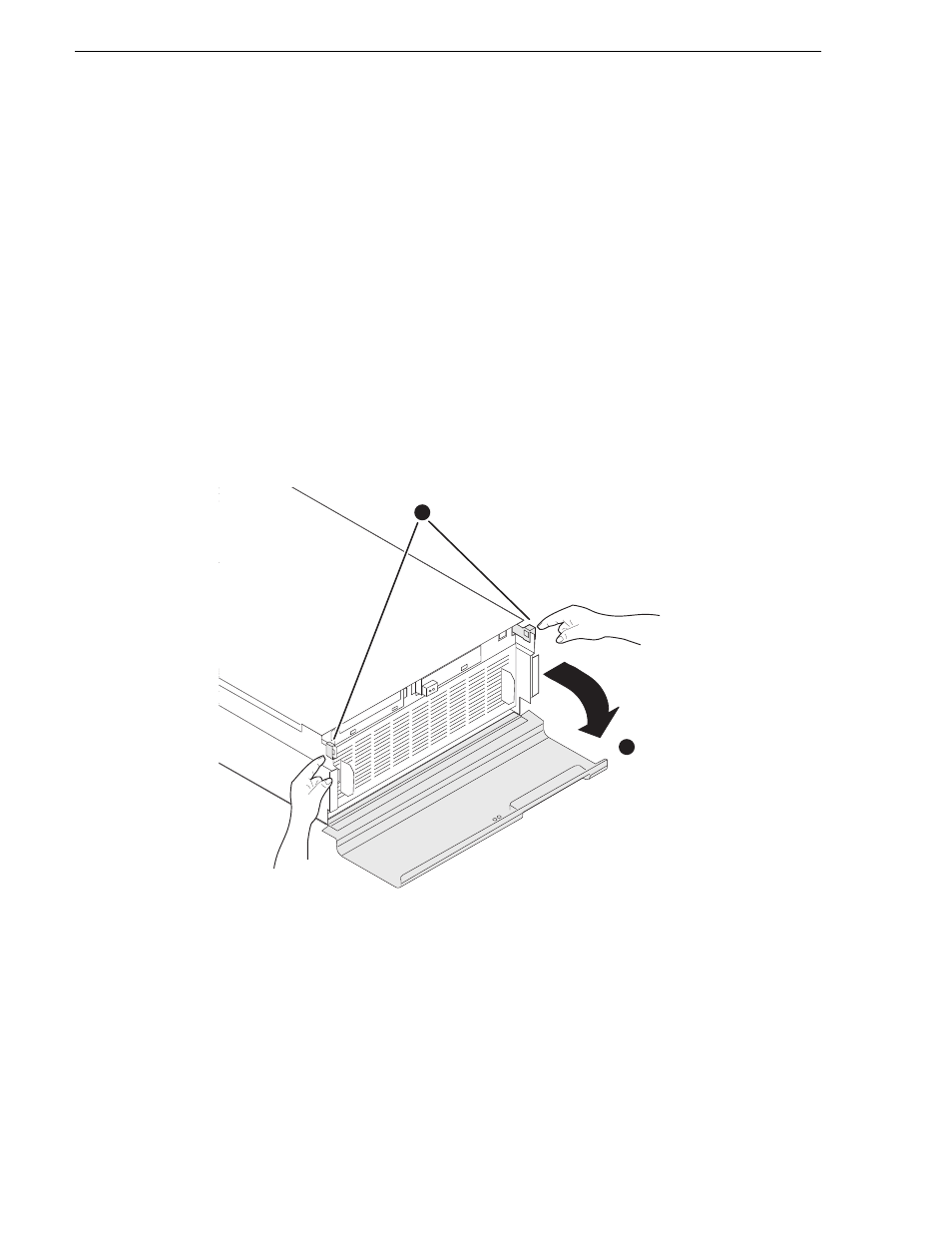

Opening the front bezel
Press latches 1
Flip down
bezel 2
