7555 HD/SD, 9550 3G/HD/SD, and 9550-XA 3G/HD/SD Video Processing Frame Synchronizers
9550-XA
3G/HD/SD
Video Audio
Processor
Video
Audio
SDI In
AES Audio
3:4 In
1:2 In
5:6 In
7:8 In
9:10 In
11:12 In
Ref In
SDI In Video and Audio green
LEDs: One or both LEDs will light
to indicate which type of
signal is currently being detected.
OFF when a signal is not
detected.
Run green LED:
OFF: A power fault or halted CPU
ON: A halted CPU
FAST BLINK: CPU Run error
SLOW BLINK: System OK. (If
SPI control is active from the
main frame System Control
Module, all Run indicators will be
synchronized.)
Pwr green LED:
Indicates the presence (ON) or
absence (OFF) of power (+5V).
AES Audio green LEDs:
For each pair of AES audio
channels, the LED will light when
there is a valid AES input on the
corresponding BNC rear
connector and that AES signal
has been selected as an input to
the mixer or to the decoder.
OFF if a pair of AES audio
channels has no input or if it is
being used as an output.
Ref green LED:
ON when Reference input is
detected and locked.
OFF when no Reference input is
detected.
For the Avenue 9550-XA

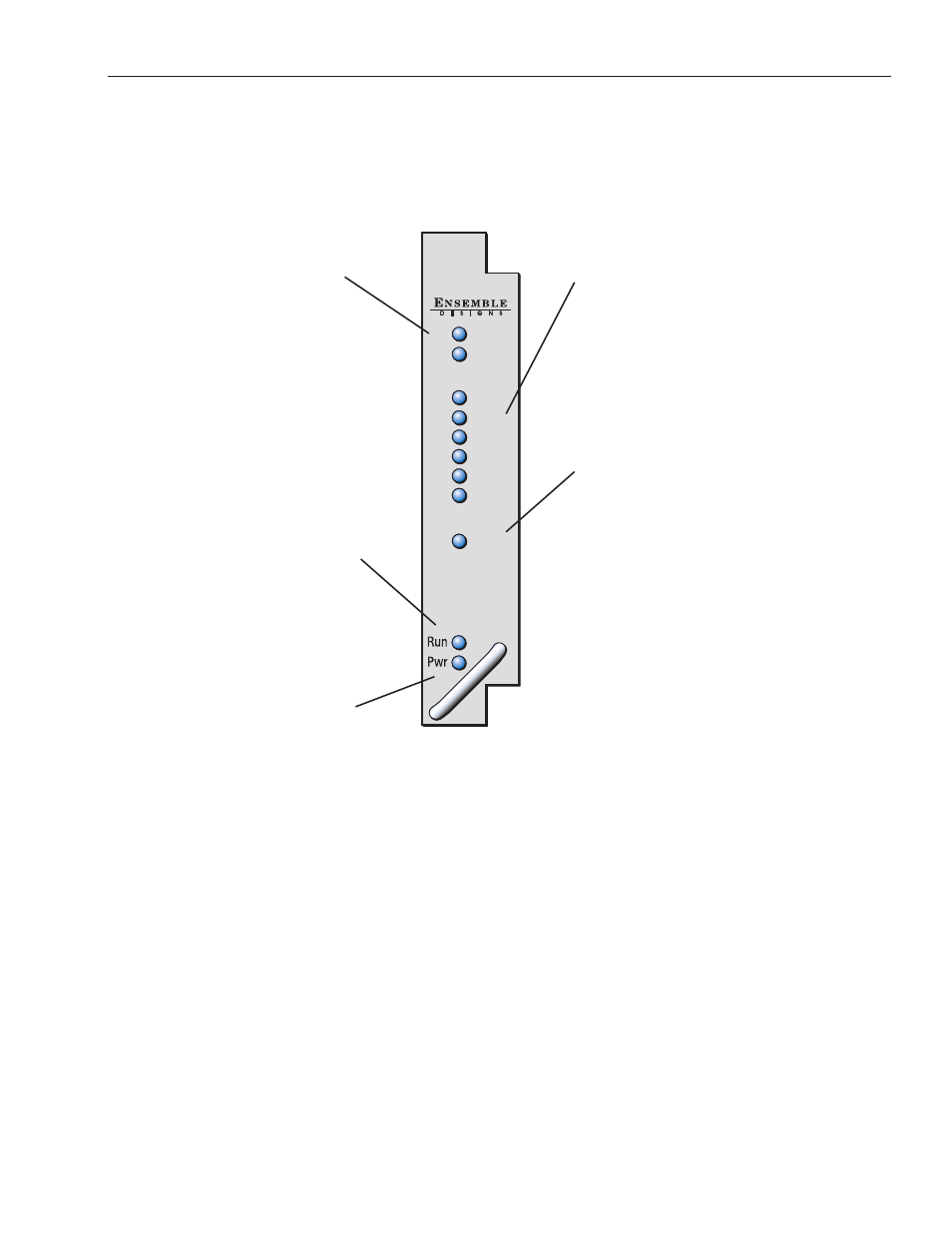

Each front edge indicator and switch setting is shown in the diagram below:
