Module Configuration and Control
Avenue module parameters can be configured and controlled remotely from one or both of the
remote control options: the Avenue Touch Screen or the Avenue PC Application. Once the module
parameters have been set remotely, the information is stored on the module CPU. This allows
the module be moved to a different slot in the frame at your discretion without losing the stored
information.
Avenue PC Option
For setting the parameters remotely using the Avenue PC option, refer to the Avenue PC Remote
Configuration section of this document starting on page 24.
Avenue Touch Screen Option
The Avenue Touch Screen option works with the same menus and controls as the Avenue PC option.
Note: At this time, the mixer menus (Mix 1:4, Mix 5:8, Mix 9:12, Mix 13:16) do not
function with the Touch Screen interface. A pending software update will fix this
issue. However, all the mixer functionality is currently available through the Avenue
PC interface.
Front Panel Controls and Indicators
For the Avenue 7555

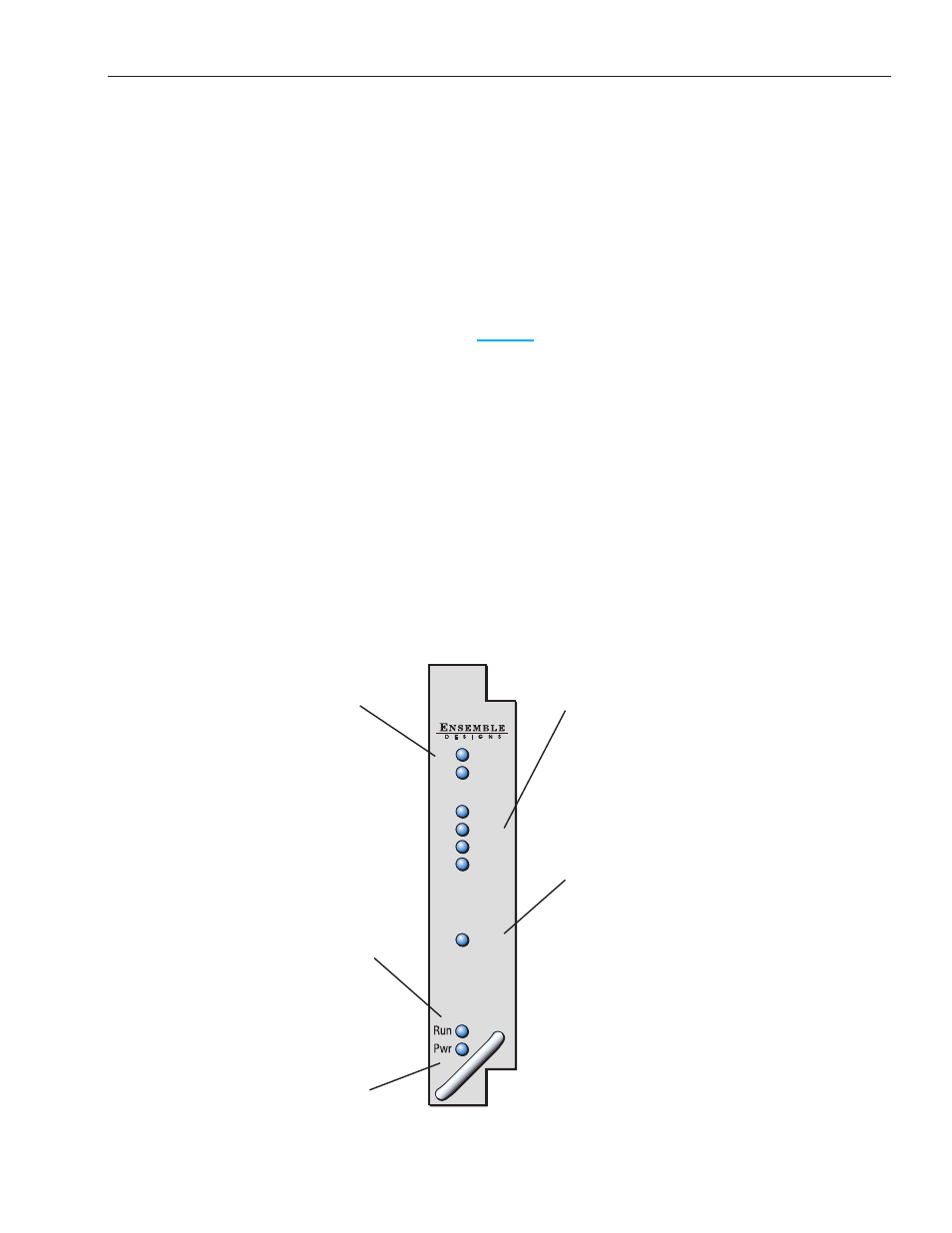

Each front edge indicator and switch setting is shown in the diagram below:
7555
HD/SD
Video Audio
Processor
Video
Audio
SDI In
AES Audio
3/4 In
1/2 In
5/6 In
7/8 In
Ref In
SDI In Video and Audio green
LEDs: One or both LEDs will light
to indicate which type of
signal is currently being detected.
OFF when a signal is not
detected.
Run green LED:
OFF: A power fault or halted CPU
ON: A halted CPU
FAST BLINK: CPU Run error
SLOW BLINK: System OK. (If
SPI control is active from the
main frame System Control
Module, all Run indicators will be
synchronized.)
Pwr green LED:
Indicates the presence (ON) or
absence (OFF) of power (+5V).
AES Audio green LEDs:
For each pair of AES audio
channels, the LED will light when
there is a valid AES input on the
corresponding BNC rear
connector and that AES signal
has been selected as an input to
the mixer or to the decoder.
OFF if a pair of AES audio
channels has no input or if it is
being used as an output.
Ref green LED:
ON when Reference input is
detected and locked.
OFF when no Reference input is
detected.
