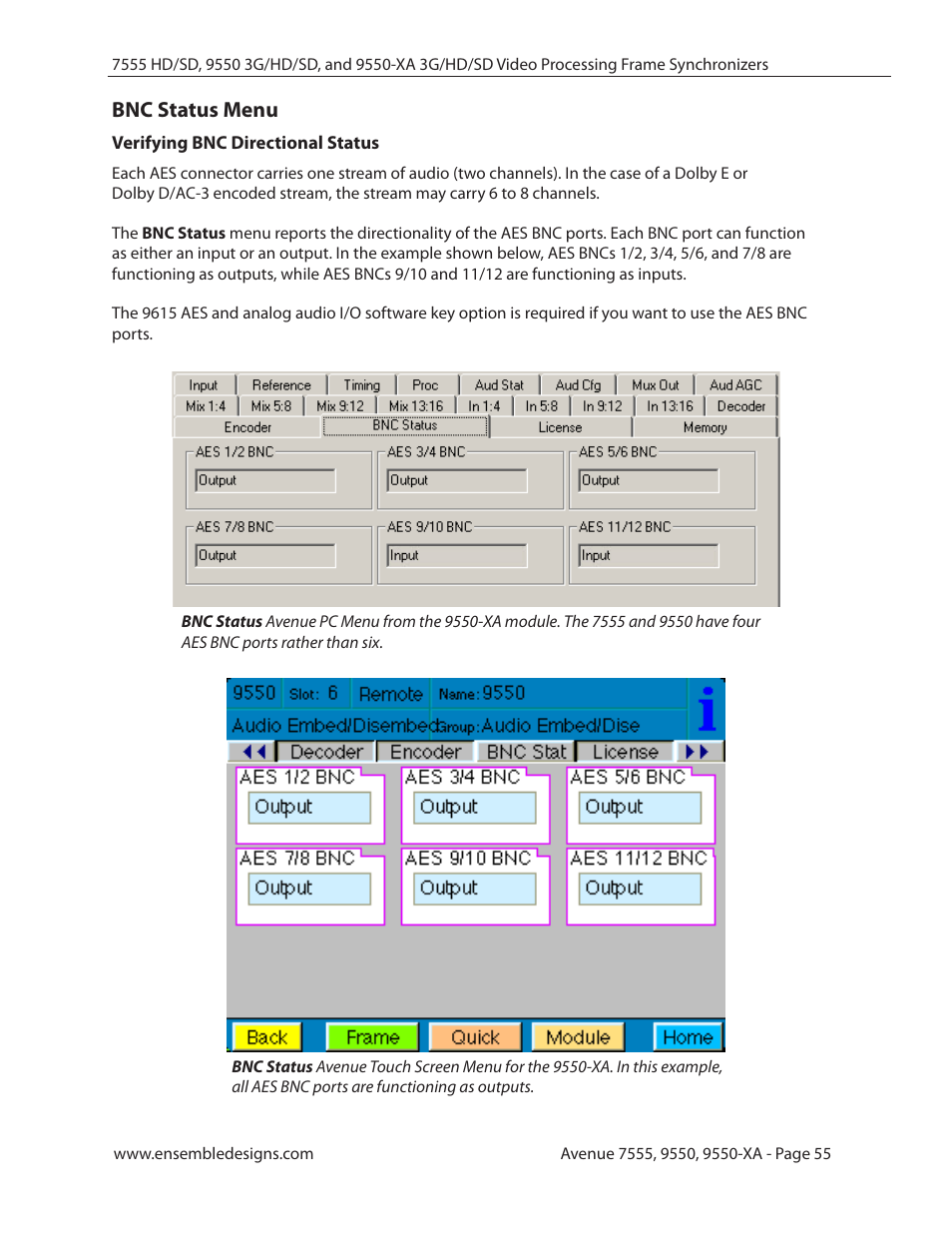

Bnc status menu, Verifying bnc directional status – Ensemble Designs 7555 HD / SD Video Processing Frame Synchronizer User Manual
Page 55
