10.Maintenance and Reference
10
56

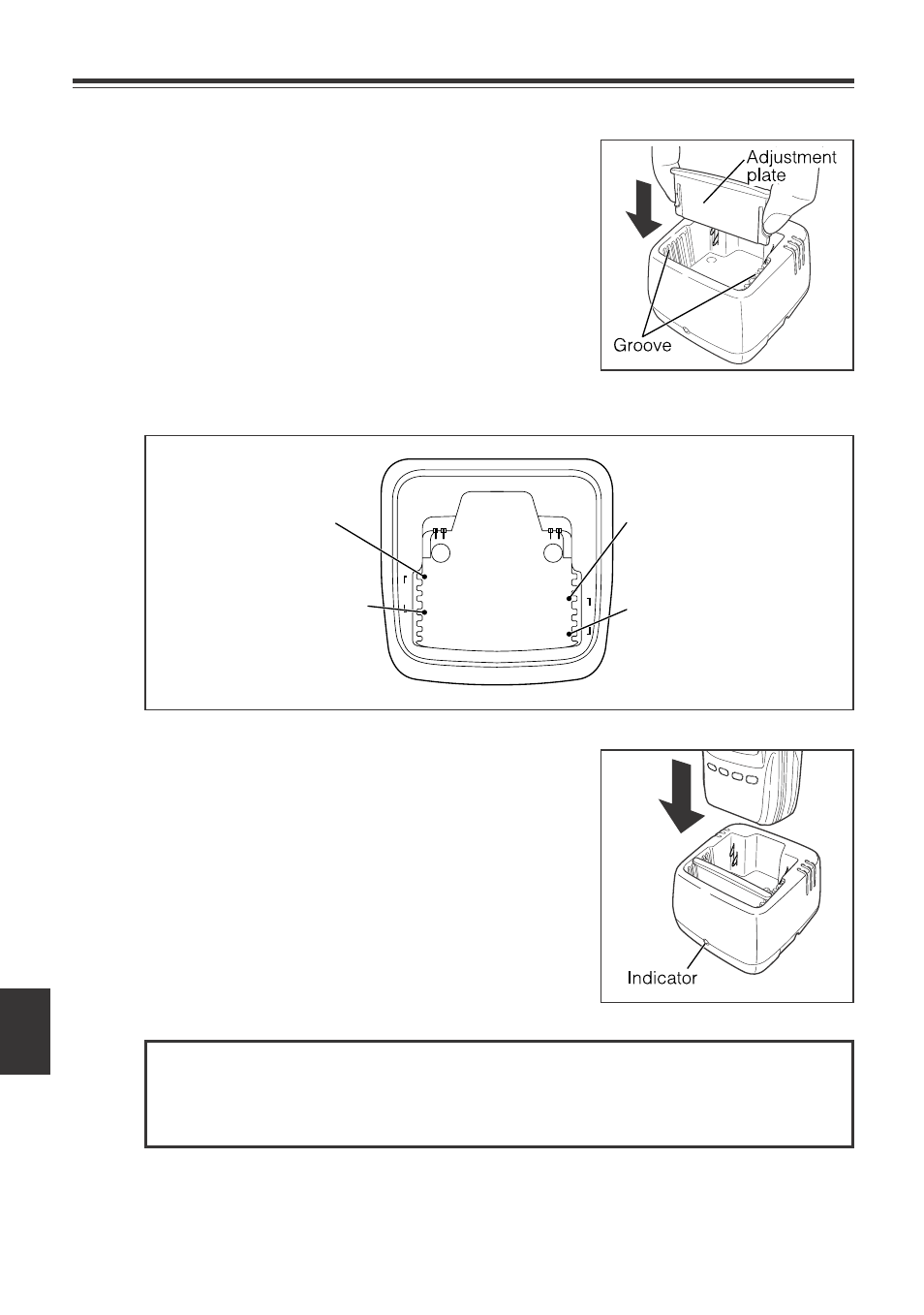

3. Press the sides of the adjustment plate, and attach
it to the proper grooves of the basket according to
the size of the battery pack. Make sure that the
characters A, B and C on both sides of the stand
match each other and the plate is placed all the
way down to the bottom.
Installation Positions of the Adjustment Plate
4. Mount the battery (with or without being attached
to the unit) in the basket as shown. Turn off the
unit while charging.
The red indicator on the basket turns on and
charging starts.
NOTE:
You can charge the battery pack using a basket (EDC-143/144) even if the
battery charge function is set to "CHG-OF".
A
EBP-65
B
C
A
B
C
A
B
C
A
B
C
EBP-66
When mounting only the
battery (EBP-66)
When mounting the battery
attached to the unit (EBP-66) When mounting the battery
attached to the unit (EBP-65)
When mounting only the
battery (EBP-65)
