2.Accessories

Charging the Battery Pack Using DC-Jack on the Unit

The unit can charge the EBP-65 and EBP-66 optional Ni-MH battery packs by

supplying DC power through the DC-jack on the unit using EDC-147/148 wall

chargers or an optional DC power supply (DC 12V~DC 16V, 1A or more: IEC/EN

60950-1 compliant) and a DC cable such as EDC-37.

1. Attach the battery pack by referring to "Battery Pack" (page 15).

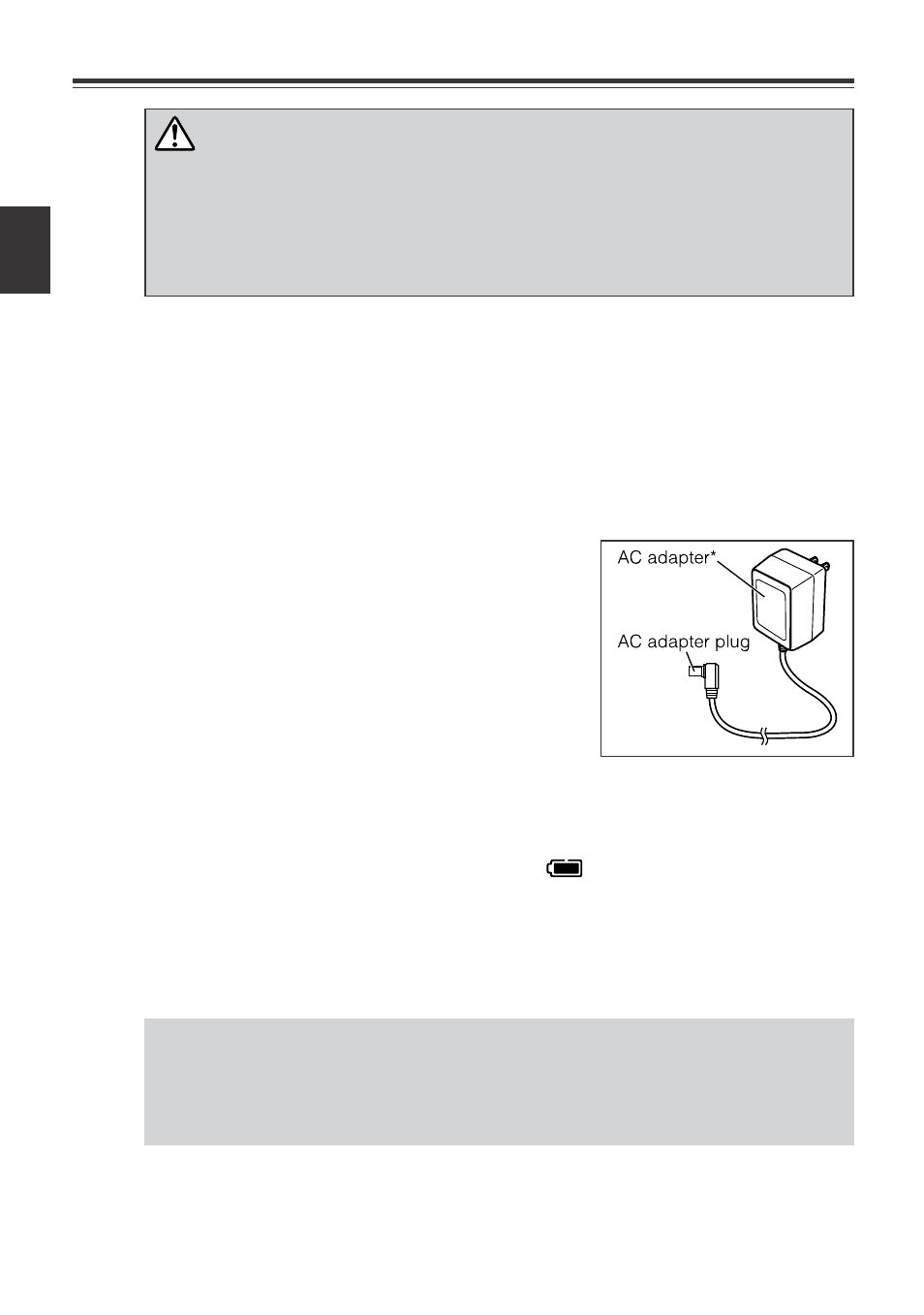

2. Connect the AC adapter plug to the DC-jack on the

unit then connect the charger's adapter to the wall

outlet.

* AC adapter may look different.

3. Turn on the unit and set the battery charge

parameters. Please refer to "Set Mode" (page 42)

then:

* "Battery Charge Function" (page 46)

Select CHG-ON.

* "Battery Type Setting" (page 47)

Select BAT-NI.

4. After completing the settings, a flashing

appears on the display. Make sure the icon is

flashing then turn off the unit. It takes about 10

hours/30hours for EBP-65/66 respectively to

complete the charge.

IMPORTANT NOTE:

While this function is activated, without attaching a battery pack or the remaining
battery level is below the usable range, the unit turns on by just connecting the
DC source such as an adapter or a DC cable (without operating the power key).

■

Caution

• Li-ion battery packs can't be charged using DC-jack on the unit (Only Ni-

MH battery packs can be charged).

• Risk of explosion, generation of heat or leak of chemicals inside if the

battery is replaced by an incorrect type. Use always the recommended

types of batteries in this manual only.
