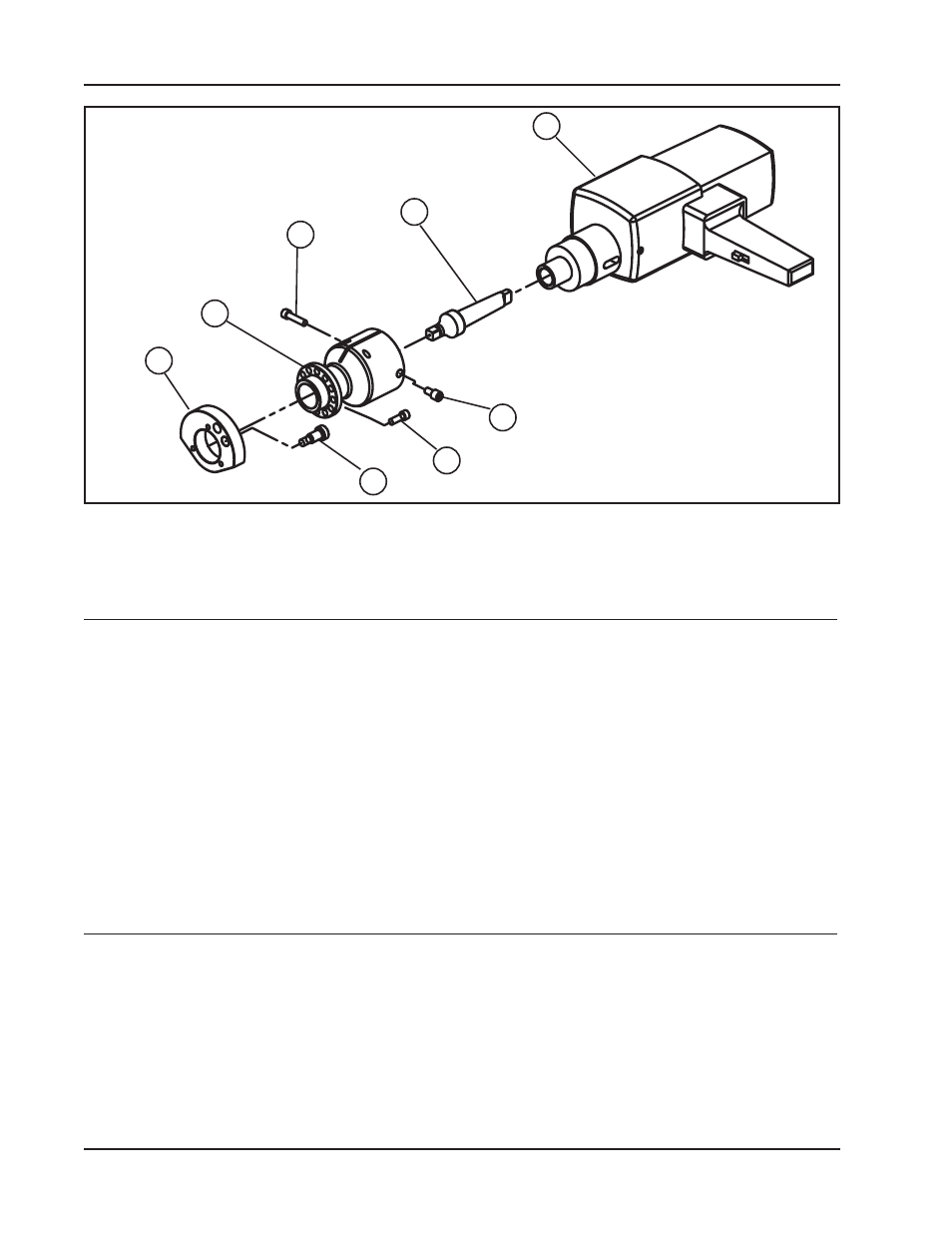

Parts List, HD Electric Drive Kit, 230V (P/N 05-0414)
Item Part
No. No. Description Qty
58-0174 MOTOR ASSY, ELECTRIC DRIVE, 230V 1
1. 27-0826 ADAPTOR, DRIVE 1
2. 30-3143 1/2” SQUARE DRIVE 1
3. 33-0055 SCREW, CAP, 5/16-18 X 7/8 3
4. 33-0057 SCREW, CAP, 5/16-18 X 1 1/4 1
5. 33-1874 SCREW, ANTI-ROTATION 2
6. 58-0173 MOTOR, ELECTRIC, 230V, MOD. 1
7. 27-0846 ADAPTOR, MOTOR 1
8. 33-0945 SCREW, SHOULDER, 1/2 X 3/4 1
1
2
3
4
5
7
6
8
Parts List, HD Electric Drive Kit, 115V (P/N 05-0434)
Item Part
No. No. Description Qty
58-0167 MOTOR ASSY, ELECTRIC DRIVE, 115V 1
1. 27-0826 ADAPTOR, DRIVE 1
2. 30-3143 1/2” SQUARE DRIVE 1
3. 33-0055 SCREW, CAP, 5/16-18 X 7/8 3
4. 33-0057 SCREW, CAP, 5/16-18 X 1 1/4 1
5. 33-1874 SCREW, ANTI-ROTATION 2
6. 58-0192 MOTOR, ELECTRIC, 110V, MOD. 1
7. 27-0846 ADAPTOR, MOTOR 1
8. 33-0945 SCREW, SHOULDER, 1/2 X 3/4 1
