Tri Tool 604SB Clamshell User Manual
Page 19
19
Model 604SB thru 612SB, Clamshells
92-1197 : Rev. 131230

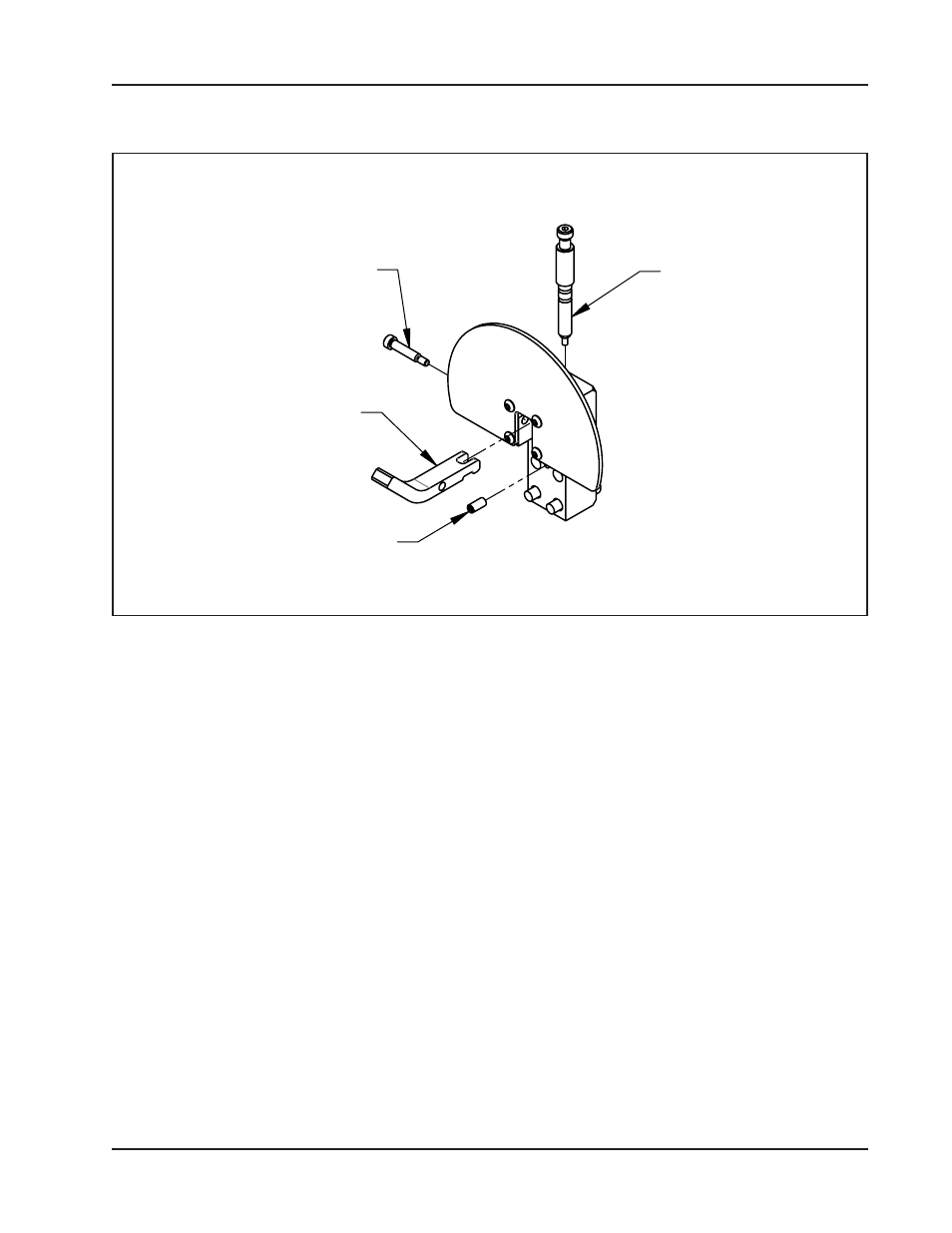

TRIPPER BLOCK ASSY LUBRICATION AND TRIPPER SHAFT ADJUSTMENT
TRIPPER
SHAFT
SHOULDER
BOLT
TRIPPER
LEVER
SET SCREW
Back off the Ball Plunger Set Screw until it disengages from the Tripper Shaft
Assembly.
Remove the Shoulder Bolt, and then remove the Tripper Lever.
Remove the Tripper Shaft Assembly from the block, and then degrease and clean all
parts.
Apply fresh lubrication to the Tripper Shaft Assembly and to the Shoulder Bolt.
Reassemble in reverse order.
Tripper Shaft Installation
