CLAMPING PAD SETS

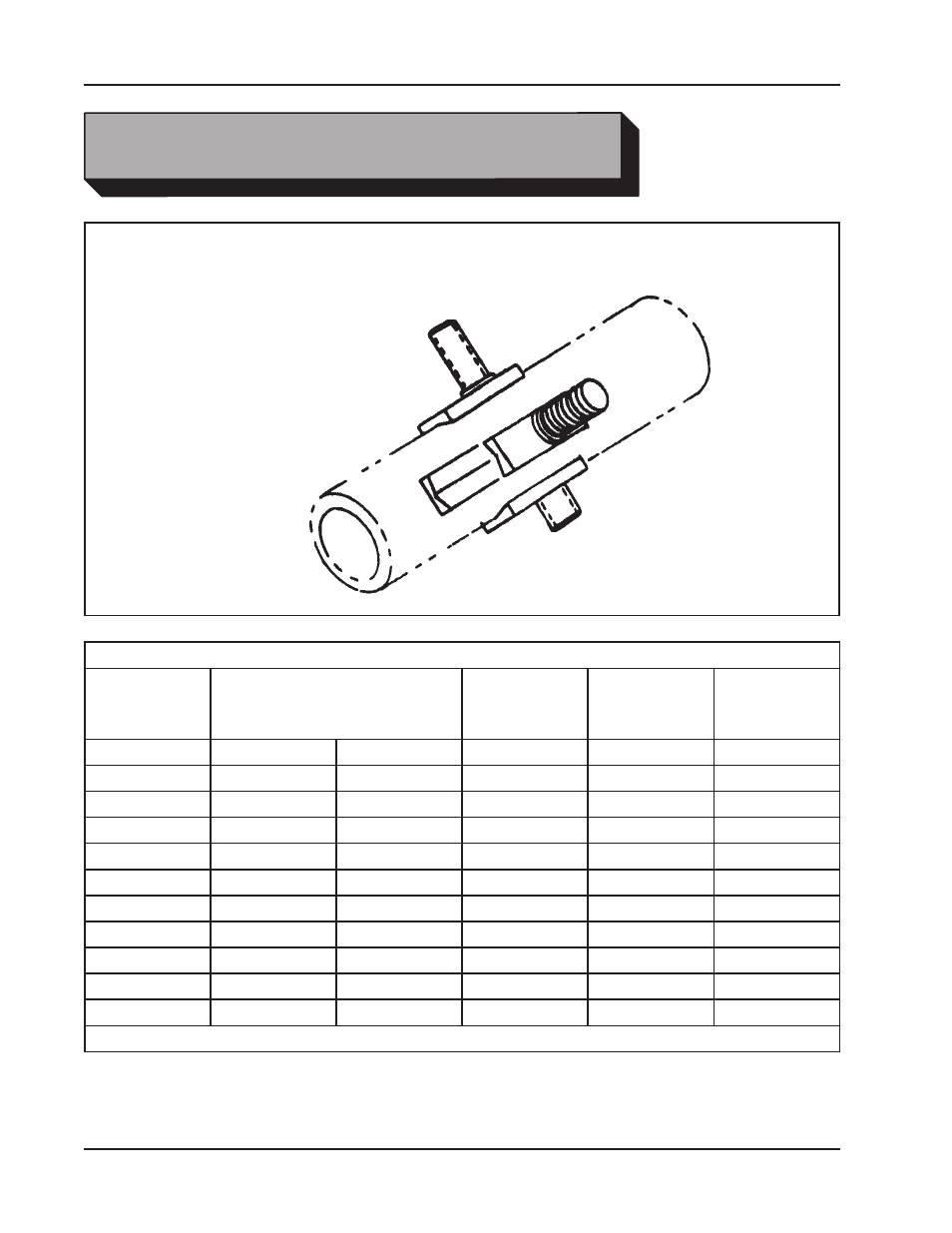

604SB Clamping Pad Sets

604SB Clamping Pad Sets

Pipe Size

True OD

Pad Set

Part No

Adjustable

Bar Assy

(2 req’d)

Fixed Bar

Assy

(2 req’d)

4"

4.500"

114.3 mm

67-3028

26-0246

26-0244

4.250"

108.0 mm

67-3057

26-0290

26-0276

3 1/2"

4.000"

101.6 mm

67-3058

26-0292

26-0278

3.750"

95.3 mm

67-3059

26-0294

26-0280

3"

3.500"

88.9 mm

67-4440

26-0274

26-1546

3.250"

82.6 mm

67-3061

26-0296

26-0282

3.000"

76.2 mm

67-3062

26-0298

26-0284

2 1/2"

2.875"

73.0 mm

67-3036

26-0258

26-0236

2.750"

69.6 mm

67-3063

26-0300

26-0286

2.500"

63.5 mm

67-3064

26-0302

26-0288

2"

2.375"

60.3 mm

67-3038

26-0262

26-0234

Contact Tri Tool Inc. for sizes not listed
