Model 604SB thru 612SB, Clamshells
92-1197 : Rev. 131230

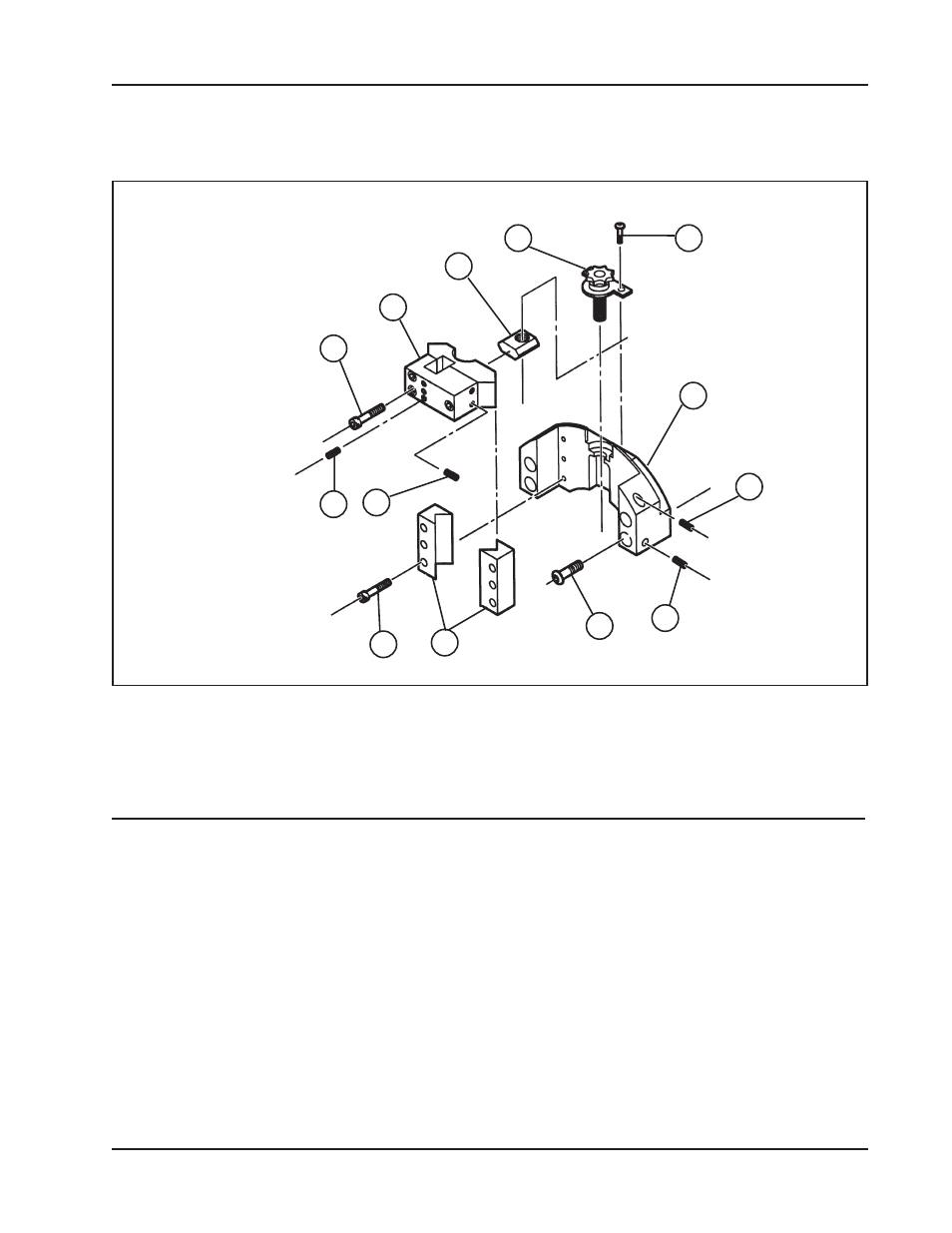

TOOL BLOCK, LOW PROFILE (P/N 08-0037)
1. 33-0042 SCREW, CAP, 1/4-20 X 1 6
2. 33-0279 SCREW, BUTTON, 10-24 X 1/2 2
3. 33-0649 SCREW, SET, 3/8-24 X 3/8, CUP PT 1
4. 33-0653 SCREW, SET, 3/8-24 X 3/4, CUP PT 1
5. 33-1243 SCREW, BUTTON, 3/8-16 X 1 1/2 4
6. 35-0176 NUT, FEED 1
7. 38-0050 SPROCKET ASSY , FEED 1
8. 47-0226 BRACKET 1
9. 48-0194 RAIL, SLIDE 2
10. 49-0018 HOLDER ASSY, TOOL 1
11. 33-0042 SCREW, CAP, 1/4-20 X 1 3
12. 33-0500 SCREW, SET, 1/4-20 X 5/16, CUP PT 3
13. 33-0505 SCREW, SET, 1/4-20 X 3/4, CUP PT 2
Parts List, Tool Block, Low Profile (P/N 08-0037)
Item Part
No. No. Description Qty
1
10
2
3
4
5
7
6
8
9
11
12 13
