Model 604SB thru 612SB, Clamshells
92-1197 : Rev. 131230
Left Hand Sever and Bevel Tool Bit Set
LEFT HAND SEVER AND BEVEL TOOL BIT SETS

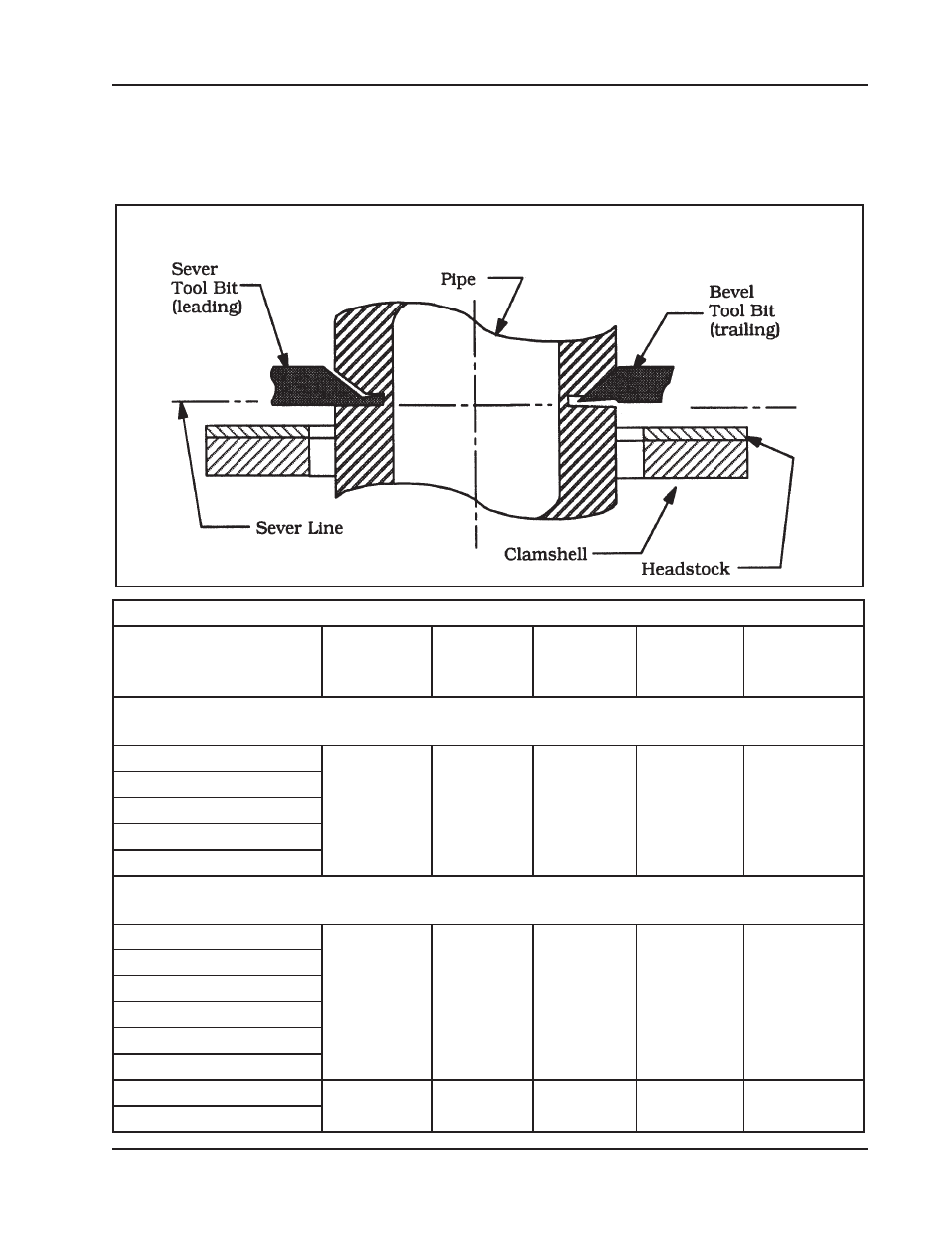

The Left Hand Sever and Bevel Tool Bit Sets bevels the end of the pipe or tube that
is cut from the pipe or tube on which the Clamshell is mounted.
Left Hand Sever and Bevel Tool Bit Sets
Range
Max Wall
Thickness
Pipe or
Tube
Material
LH Bevel
Tool Bit
P/N
LH Sever
Tool Bit
P/N
Tool Bit
Length
Left Hand Sever and 37.50 Bevel Tool Bits for use with the Extended Tool Block
(P/N 08-0040)
2" thru 5" all sch
.800"
(20.3 mm)
CS, SS 99-1256 99-1257
3.00"
(76.2 mm)
6" pipesch 5 thru 160
8" pipesch 5 thru 120
10" pipe sch 5 thru 100
12" pipe sch 5 thru 80
Left Hand Sever and 37.50 Bevel Tool Bits for use with the Low Profile Tool Block
(P/N 08-0037)
2 1/2" pipe sch 5 only
.800"
(20.3 mm)
CS, SS 99-1646 99-1647
2.000"
(50.8 mm)
3" pipe sch 5 thru 80
3 1/2" & 4" pipe all sch
5" pipe sch 5 thru 40
6" pipesch 5 thru 160
8" pipesch 5 thru 120
10" pipe sch 5 thru 100
.800"
(20.3 mm)
CS, SS 99-1264 99-1265
2.38"
(60.5 mm) 12" pipe sch 5 thru 80
