315 hydraulic pump drawing, Par ts – Smithco Spray Star 1600P (sn 0979 – 0991) Parts & Service Manual User Manual

Page 54

background image

52

Par
ts

Torque 75-100 in/lb

(8.25-11Nm)

Torque 75-100 in/lb

(8.25-11Nm)

Torque 190-210 in/lb

(21-23Nm)

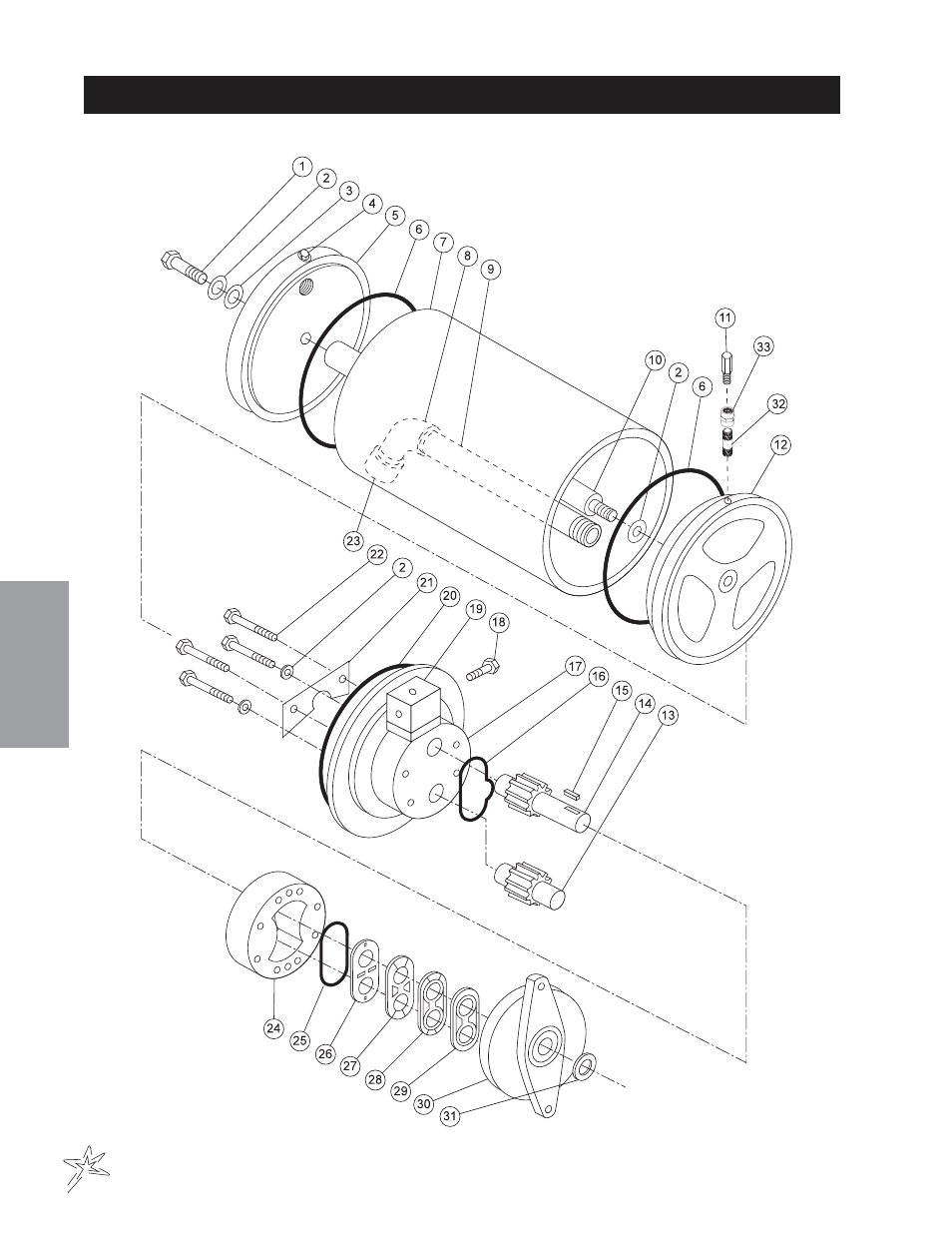

15-315 HYDRAULIC PUMP DRAWING
