99
Accessories
14-100 PLUMBING & 709-422 NOZZLE KIT PARTS LIST
(RAINDROP TIPS)
REF# PART# DESCRIPTION QUANTITY
1 14-100 Boom 1
2 16-795 Square clamp 1 12
3 16-796 Diaphragm Check Valve Single (complete with 8 & 9) 6
4 16-797 Diaphragm Check Valve Double (complete with 8 & 9) 6
5 8888-19 Orange PVC Hose 1 /
2
" 4
6 18-224 Hose Clamp 1 /
2
" 28
7 16-137 Fitting 1 /
2
MPT x 1 /
2
HB 6
8 16-798 End Cap 12
9 16-920-06 Diaphragm 12
10 8888-8 Orange PVC Hose 1 /
2
" 6
11* 16-805 Raindrop Tip 1 /
4
" RA8 (all sizes available) 12
12* 16-800 Gasket 12
13* 16-921 Quick TeeJet Cap 1 /
4
" FPT 12
14* 16-199 45° Street Elbow 1 /
4
" PT 12
15 18-133 Fitting 1 /
2
MPT x 3 /
4
HB 3
18-077 Hose Clamp 3
16 16-200 Ball Valve 1 /
4
FPT 2
16-136 Fitting 1 /
4
MPT x 1 /
2
HB 4
17 8888-9 Orange PVC Hose 1 /
2
" 4
* 709-422 Nozzle Kit 12 each

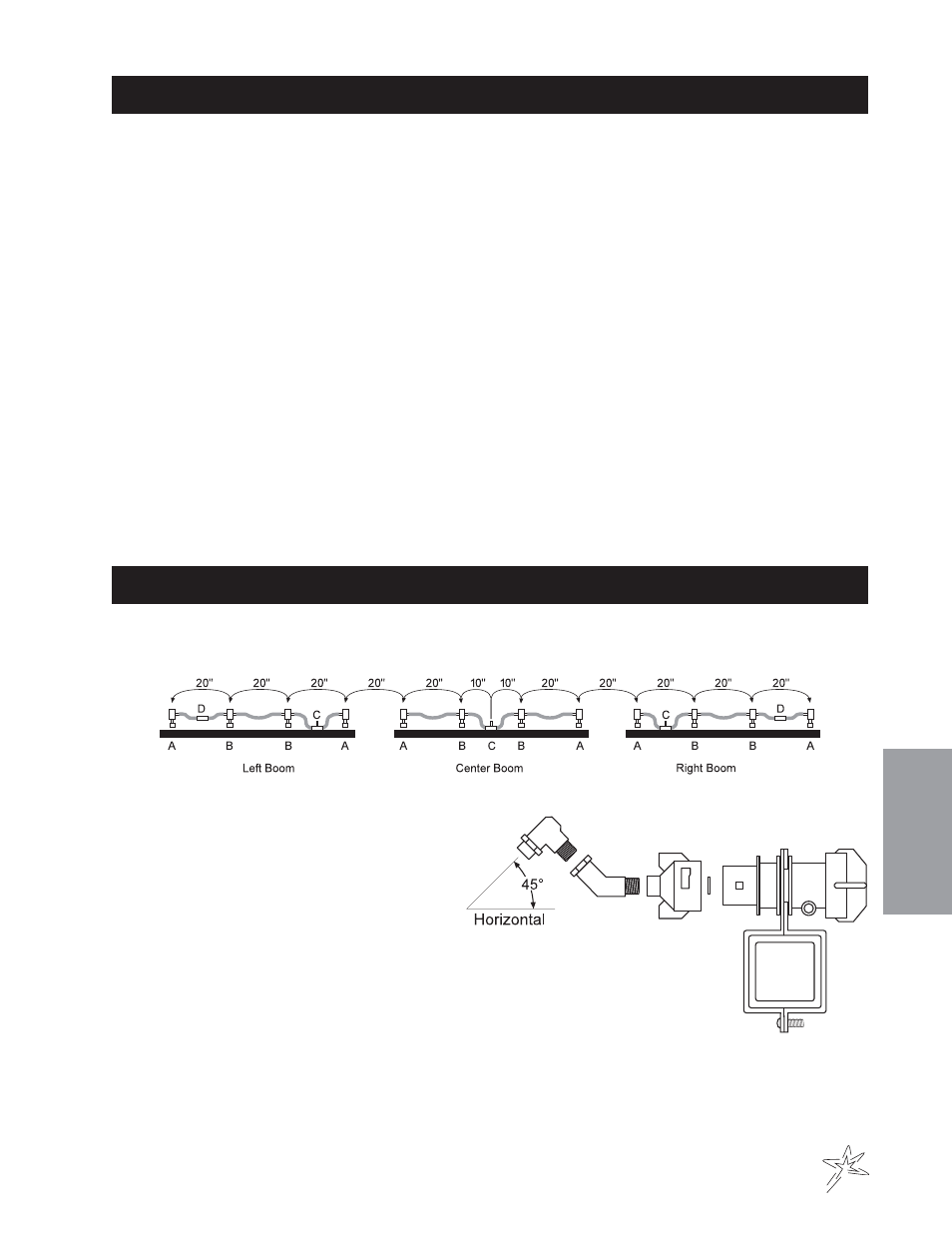

PLUMBING & NOZZLE KIT INSTALLATION
(RAINDROP TIPS)
All measurements are done from the fitting on center boom with booms in-line. Nozzles are exactly 20" apart.
1. Install check valves (A and B) above the square tubing and pointing to the rear.
A. Single Ended Check Valve (Ref# 3) and Clamp (Ref# 2), install with fitting toward middle of boom.
B. Double Ended Check Valve (Ref# 4) and Clamp (Ref# 2).
C. Fitting (Ref# 17)
D. Ball Valve and Fitting (Ref# 15)
2. Place ball valve (D) between the outer check
valves on both right and left booms. Connect
the check valves together using the
1 /
2
" hose
and hose clamps.
3. Install Raindrop nozzles into nylon 45° elbow. Install nylon elbow into threaded
quickjet caps. Attach caps and gaskets to the check valve. Position Raindrop
nozzles so they point to the rear, and 45° down from horizontal.
4. Fill the tank 1 /
2
full of water. Place unit on a hard and level surface. Adjust boom
height according to the Nozzle Selection Chart. Turn on spray and observe the
amount of overlapping spray between adjoining nozzles. There should be 100%
overlap. The edge of the spray from one nozzle should reach to the center of the adjoining nozzle. If
required, adjust boom height until the correct overlap is achieved.
Strainers are not supplied with Raindrop nozzles. Use 50 mesh slotted strainers (16-802) on nozzle tips smaller
than standard.
