PONDEROSA

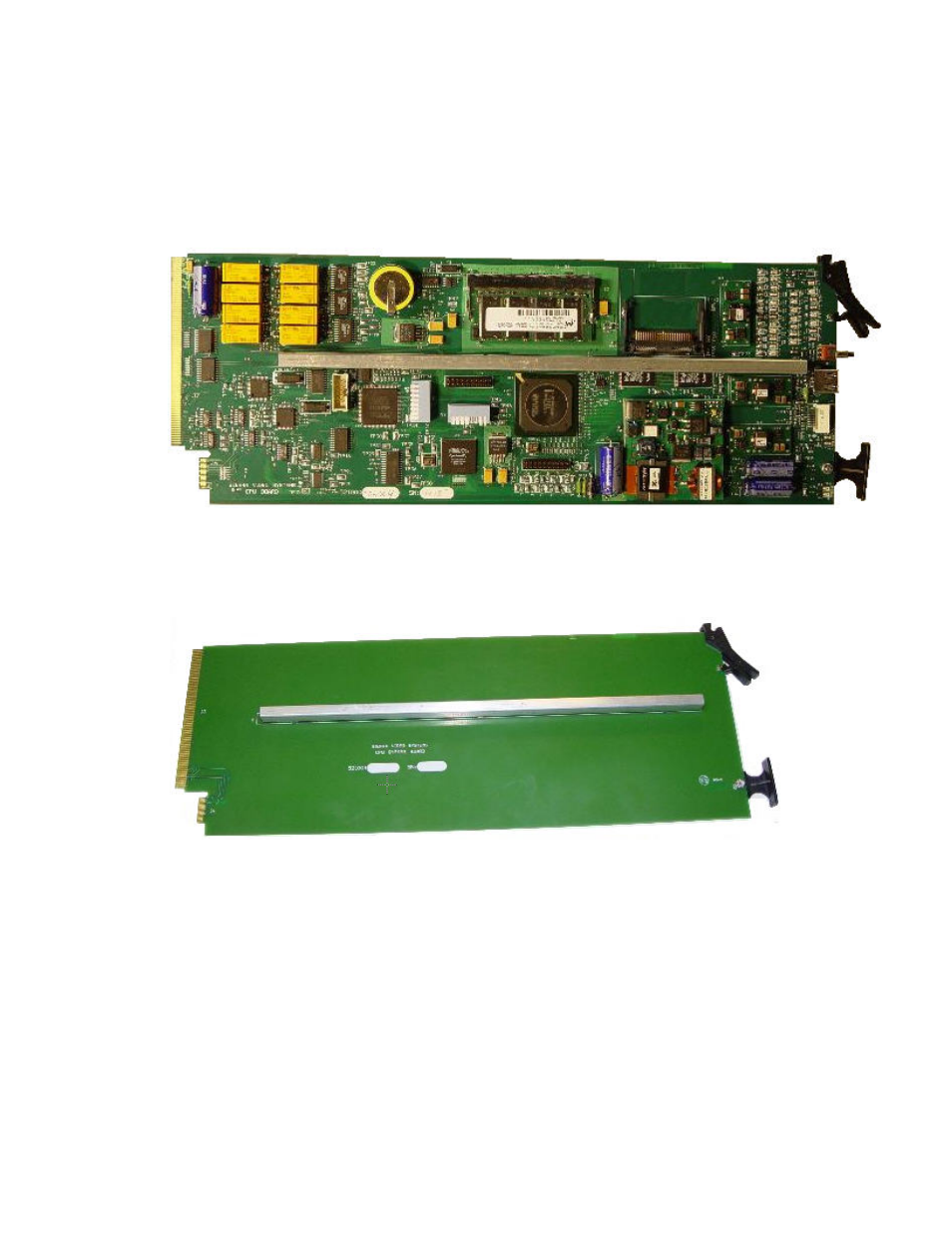

Processor Module

Master

Slave CPU

The “Slave” (bypass) processor module contains no components. The purpose of the PCB is to
transfer switching commands from the “Master” processor to the crosspoint boards and must be
installed in order for the slave frame(s) to operate.
