DeviceNet Slave Communication Module DVPDT02-H2
DVP-PLC Application Manual 6
z Please set up the switch when the power is switched off. After the setup is completed, re-power
DVPDT02-H2.
z When DVPDT02-H2 is operating, changing the setting of the switch will be invalid.
z Use slotted screwdriver to adjust the switch carefully in case you scratch the switch.
2.6 Extension Port
The extension port on DVPDT02-H2 is used for the connection to the next DVPDT02-H2 or extension
modules of DVP-EH2 series PLC MPU.
3 Basic Operation

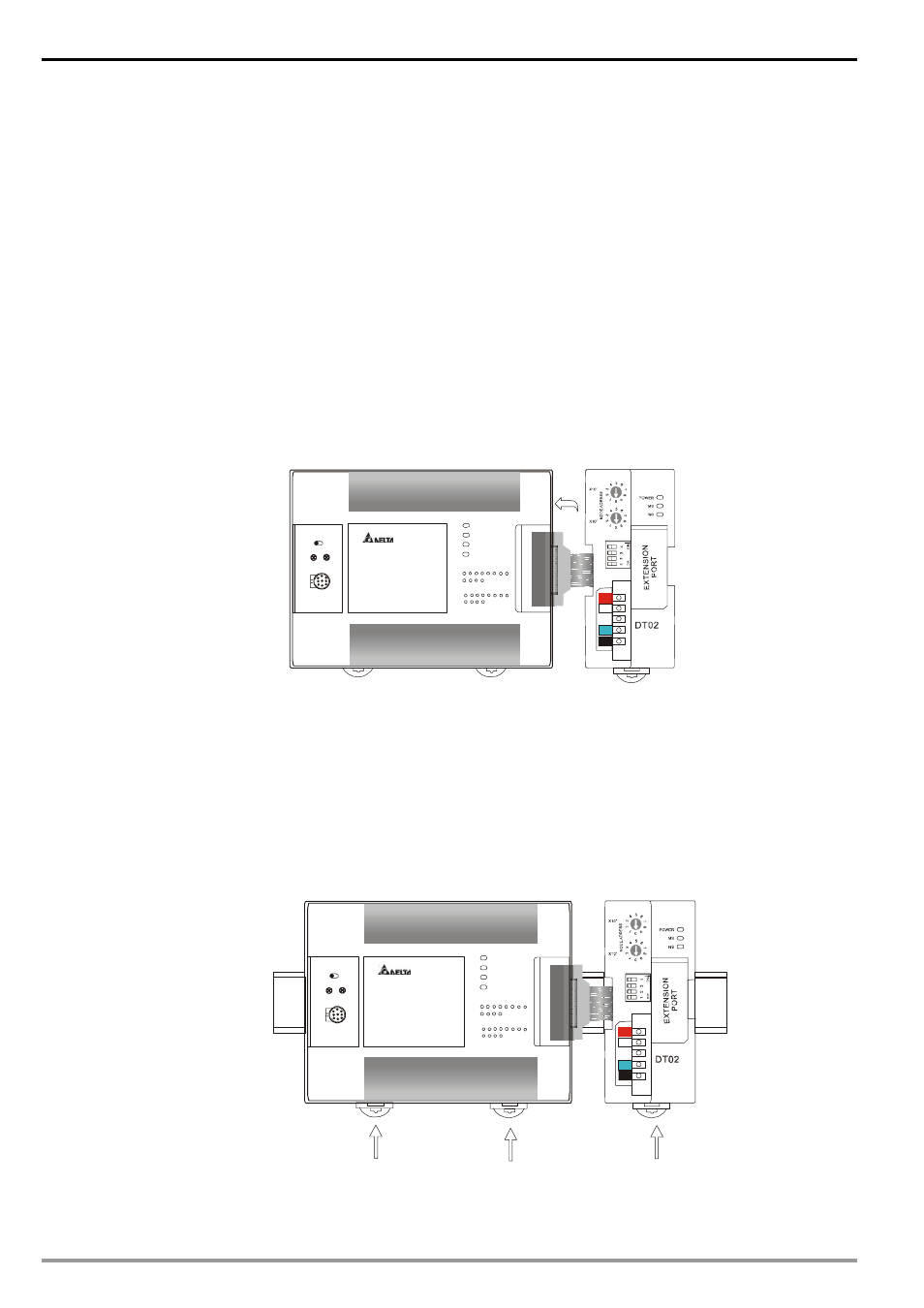

3.1 Connecting DVPDT02-H2 to DVP-EH2 Series PLC MPU
z Open the connection port on the right hand side of DVP-EH2 and connect DVPDT02-H2 to DVP-EH2.
ST O P R UN
0 1 IN
O U T
P O W E R
R U N
E R R O R
B AT. L O W
DVP-20 EH
3.2 Install DVP-EH2 and DVPDT02-H2 on DIN Rail
z Use 35mm DIN rail.
z Open the DIN rail clip on DVP-EH2 and DVPDT02-H2. Insert DVP-EH2 and DVPDT02-H2 onto the DIN
rail.
z Clip up the DIN rail clips on DVP-EH2 and DVPDT02-H2 to fix DVP-EH2 and DVPDT02-H2 on the DIN
rail.
ST OP R UN
0 1 IN
O U T
PO W ER
R U N
ER R O R
BAT. LO W
DVP-20EH
