DeviceNet Slave Communication Module DVPDT02-H2
DVP-PLC Application Manual 11

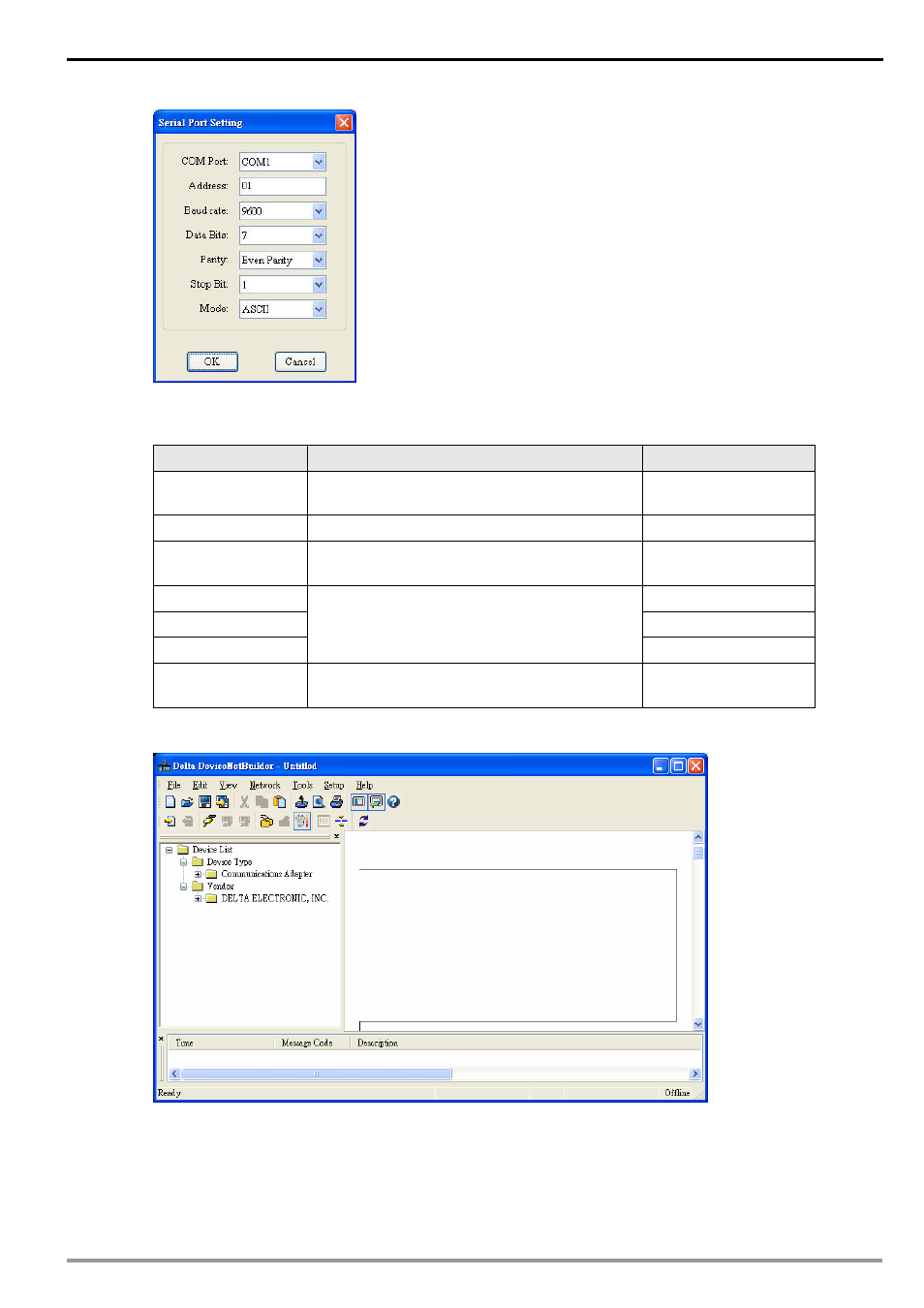

3. Set up the communication parameters, e.g. “COM Port”, “Address”, “Baud rate”, and so on, for the PC and
DVP-28SV in this dialog box.
Parameter Function Default
COM Port
COM port on the PC to be used to
communicate with DVP-SV
COM1
Address Communication address of DVP-SV 01
Baud rate
Communication speed between PC and
DVP-SV
9,600 bps
Data Bits 7
Parity Even Parity
Stop Bit
Communication protocol between PC and
DVP-SV
1
Mode
Communication mode between PC and
DVP-SV
ASCII Mode
4. Click on “OK” and return to the main page.
5. Select “Network" => “Online”, and the “Select Communication Channel” dialog box will appear.
