DeviceNet Slave Communication Module DVPDT02-H2
DVP-PLC Application Manual
15

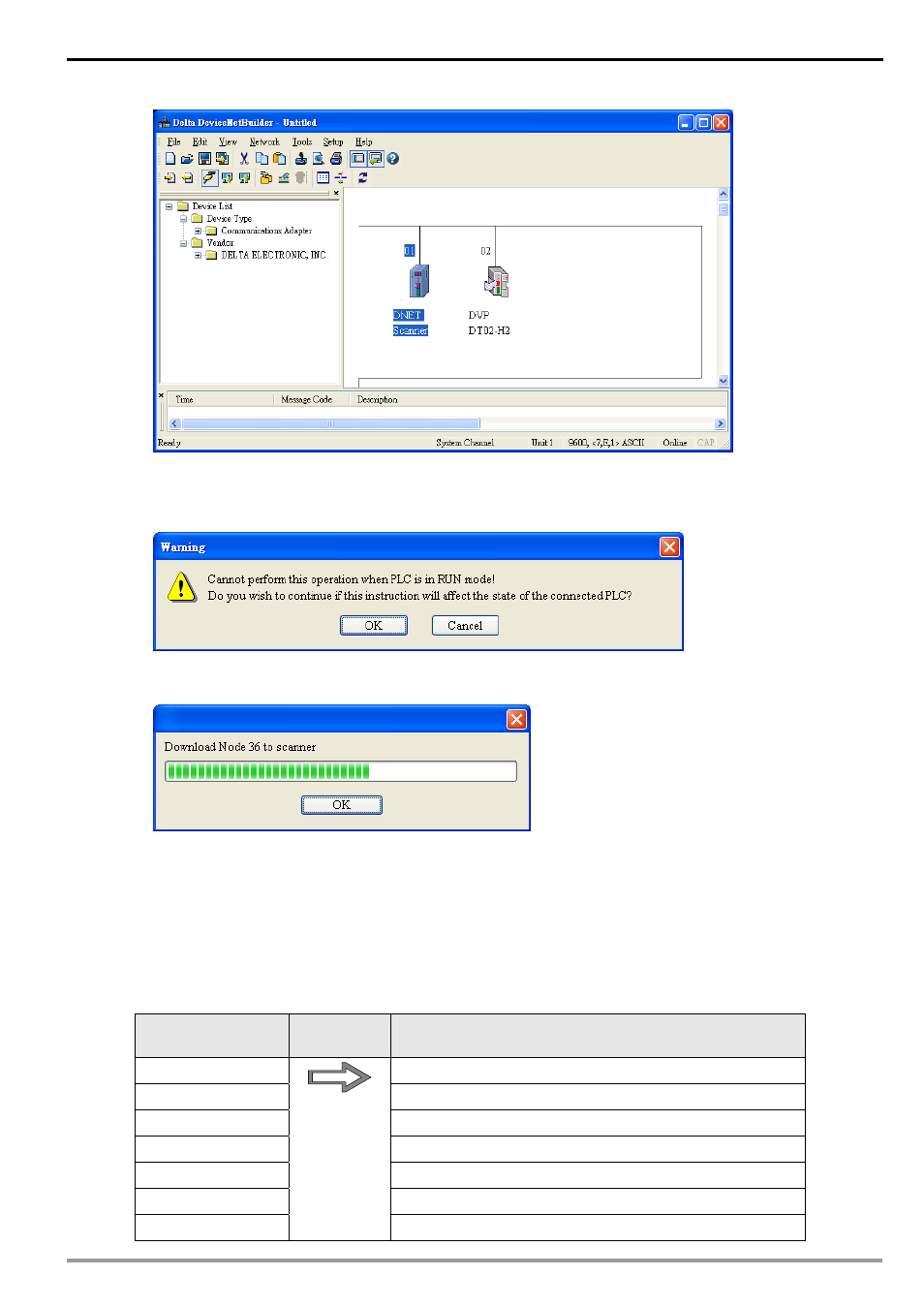

4. Select “Network” => “Download” to download the configuration to DVPDNET-SL. If DVP-SV is in RUN
mode while you are downloading the configuration, a “Warning” dialog box will appear.
5. Click on “OK” to continue the download.
6. Make sure DVP-SV is in RUN mode. You will then see the MS LED and NS LED on DVPDT02-H2 are
steadily on in green color.
Follow the steps above to configure DeviceNet network. See below for the I/O data mapping between
DVPDNET-SL network scanner and DVPDT02-H2.
DVPDNET-SL → DVPDT02-H2
Register in
DVPDNET-SL
CR in DVPDT02-H2
D6287 CR#103
D6288 CR#104
D6289 CR#105
D6290 CR#106
D6291 CR#107
D6292 CR#108
D6293
CR#109
