DeviceNet Slave Communication Module DVPDT02-H2
DVP-PLC Application Manual
18
through DeviceNet network configuration tool is 200 bytes.

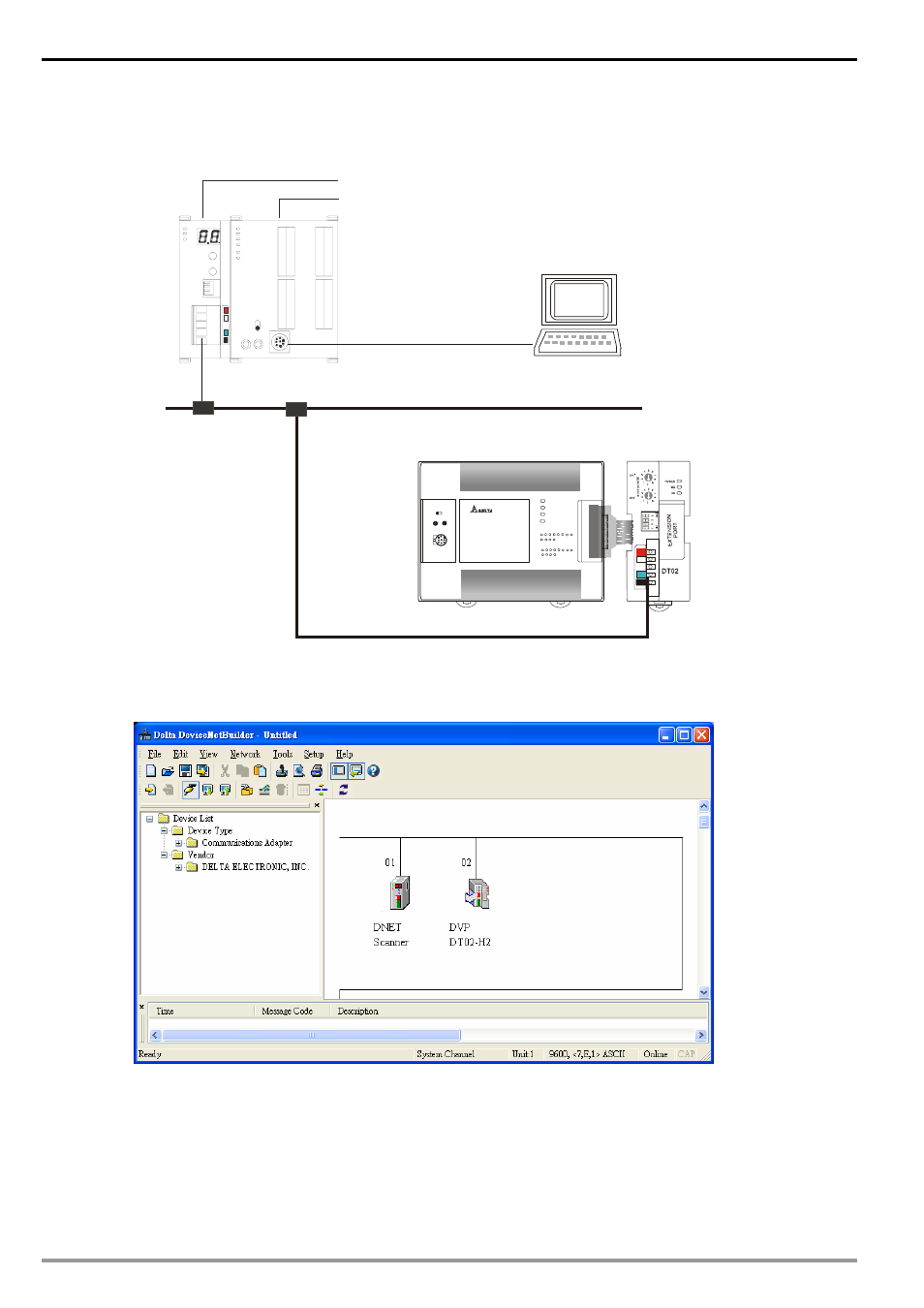

Constructing DeviceNet network:
DeviceNet
DVP28SV
DVPDNET-SL
DVPDNET
DVP28SV
RUN
STOP
Master
DeviceNet
network configuration tool
STOP
RUN
0
1
IN
OUT
POWER
RUN
ERRO R
BAT.L OW
DVP-20EH
1. Scan the DeviceNet network by DeviceNetBuilder. After the scan is completed, the nodes on the
DeviceNet network will appear on the screen.
2. Click on “DVP DT02-H2" icon, and you will see a box as below.
