Devicenet slave communication module dvpdt02-h2, Dvp-plc application manual 10 – Delta Electronics DeviceNet Slave Communication Module DVPDT02-H2 User Manual
Page 12
DeviceNet Slave Communication Module DVPDT02-H2
DVP-PLC Application Manual
10

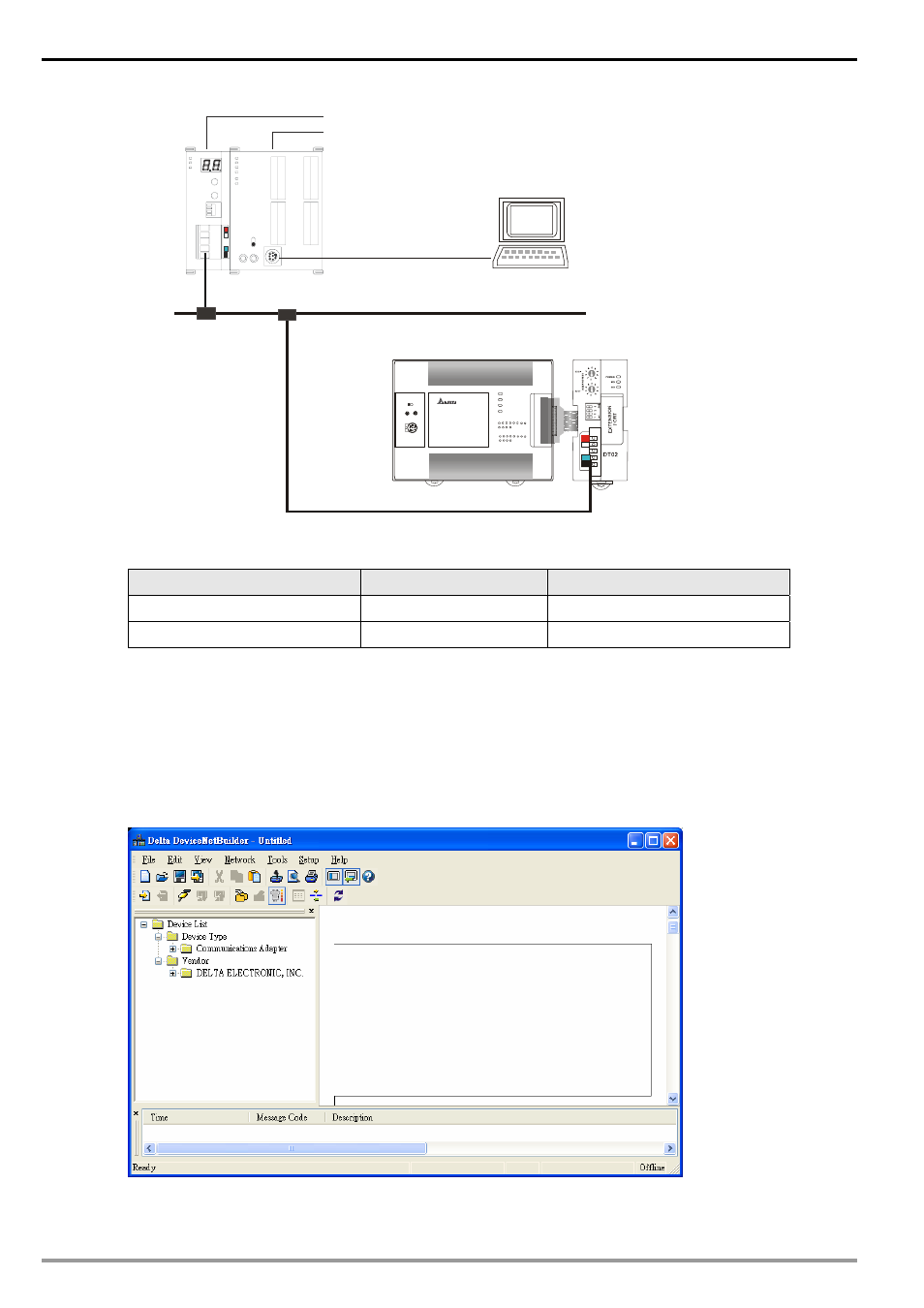

DeviceNet
DVP28SV
DVPDNET-SL
DVPDNET
DVP28SV
RUN
STOP
Master
DeviceNet
network configuration tool
STOP
RUN
0
1
IN
OUT
POWER
RUN
ERROR
BAT.L OW
DVP-20EH
2. Configuring DVPDNET-SL network scanner and DVPDT02-H2:
Module
Node address
Baud rate
DVPDNET-SL 1
500kbps
DVPDT02-H2 2
500kbps
3. Please check and make sure DVP-EH2 PLC MPU and DVPDT02-H2 module both operate normally.
Check also the wiring of the entire network and make sure the power supply on DeviceNet network is
normal.
¡ Configuring the network by DeviceNet network configuration tool
Configuration DVPDT02-H2
1. Open DeviceNetBuilder.
2. Select “Setup“ => “Communication Setting” => “System Channel”, and you will see the “Serial Port Setting”
dialog box.
