DeviceNet Slave Communication Module DVPDT02-H2
DVP-PLC Application Manual 12

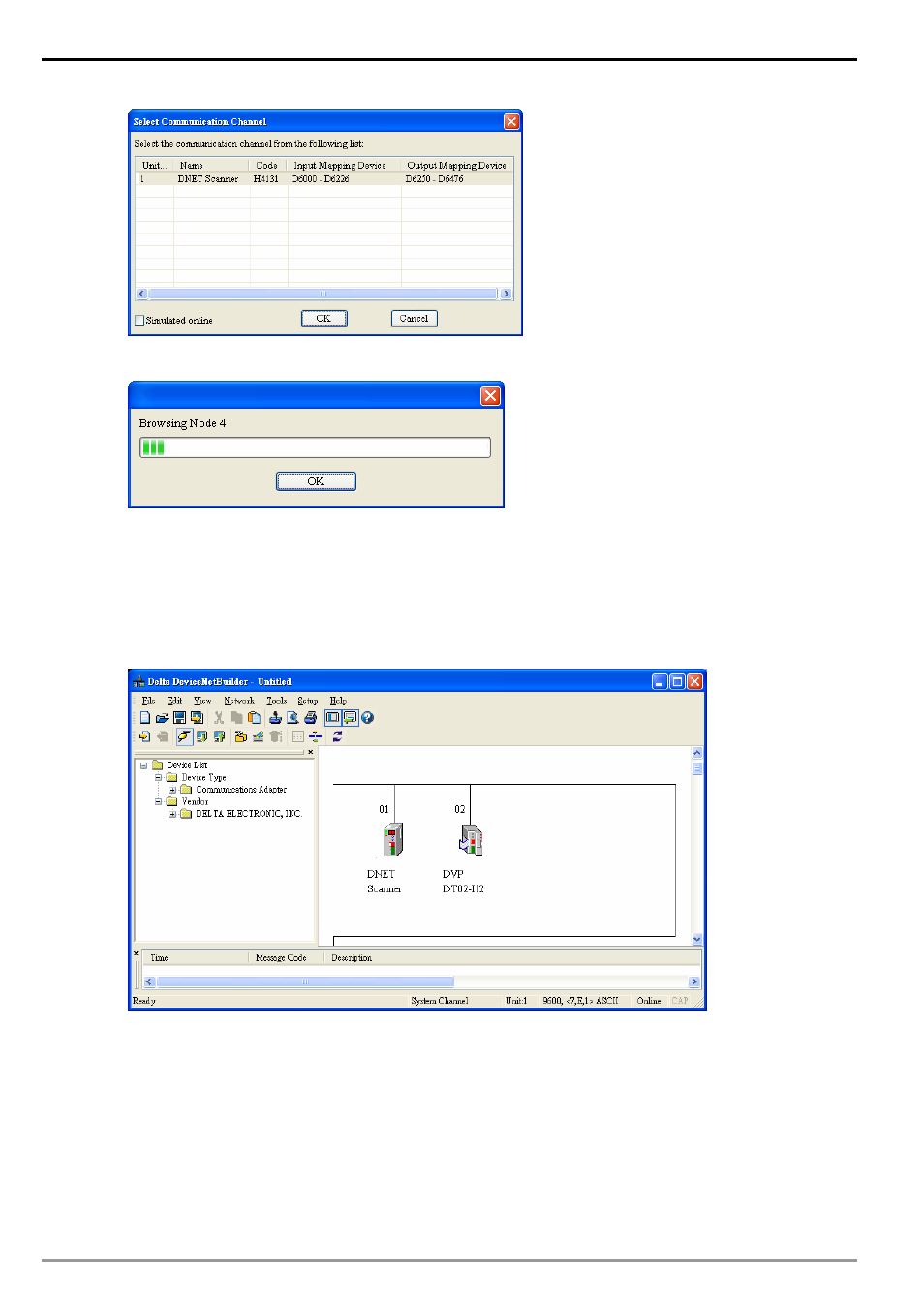

6. Click on “OK”, and DeviceNetBuilder will start to scan the entire network.
7. If the bar on the dialog box does not progress, it means the connection between the PC and DVP-SV is
abnormal, or there are other programs also using the COM port on the PC. After the scan is completed, the
dialog box will tell you that the scan is completed, and the icons and device names of all the nodes
scanned on the network will be shown on the screen. See the figure below, in which the node address of
DVPDNET-SL is 01.
8. Double click on DVPDT02-H2 (node 02), and the “Node Configuration...” dialog box will appear.
