Caution
turn the power oFF at the CirCuit Breaker
BeFore instaLLing the Dimmer.
instaLLation
For ease of installation, manufacturer recommends use of a deep wall box. The
device is equipped with flying leads to simplify installation, however, if desired,
they may be removed by loosening the screw terminals.
1. Disconnect power to circuit by turning circuit breaker OFF before installation.
2. Remove existing wall plate and switch.
3. Strip existing wires 1/2”. If two wires will be connected to the same terminal
on a Miro device, both wires must be the same gauge (12AWG or 14AWG).

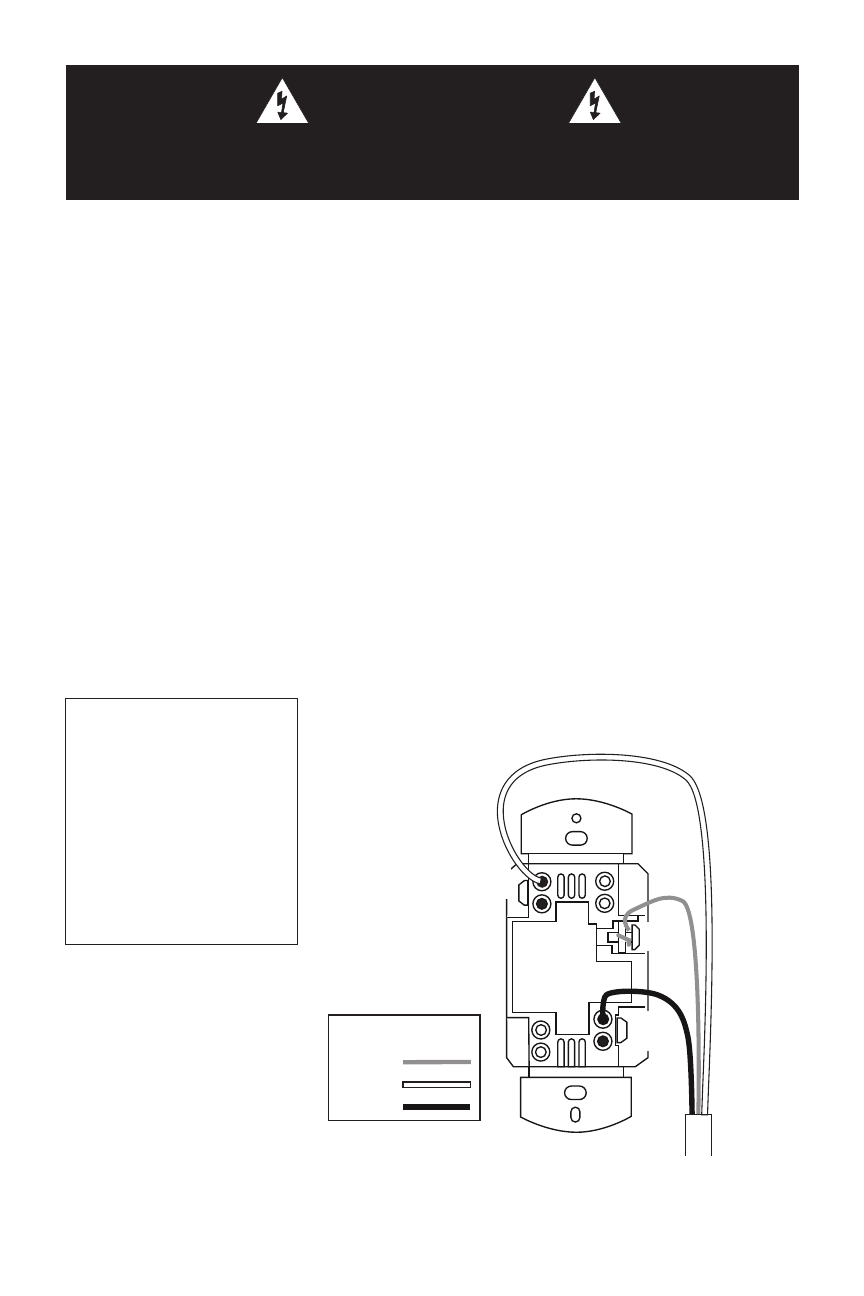

4. Wire the LINE (black), NEUTRAL (white) and GND supply wires to the
correspondingly marked screw terminals, according to the wiring diagram.
5. Attach the wall plate.
6. Switch the circuit breaker back ON.
LINE
GND
Supply
Wires
NEUT
Wire Legend
Ground
Line
Neutral
instaLL in
CompLianCe with
aLL appLiCaBLe
CoDes & stanDarDs.
Failure to follow these
instructions may cause
personal injury or
equipment damage.
