Legrand ADWHRM4 adorne Wireless User Manual
Page 2
1
System Introduction
2-3
Configuring the System
4-9
Setting a House ID
4
Creating Groups
5-6
Setting up Remote Controls
7-9
Custom Settings
10-11
Expanding the System and Interfacing
12-16
with Other Programs
Operating the System
17-20
Designing a System
21
Product Overview
22-25
Specifications
26-28
Frequently Asked Questions
29-30
SAFETY CONSIDERATIONS
TABLE OF CONTENTS

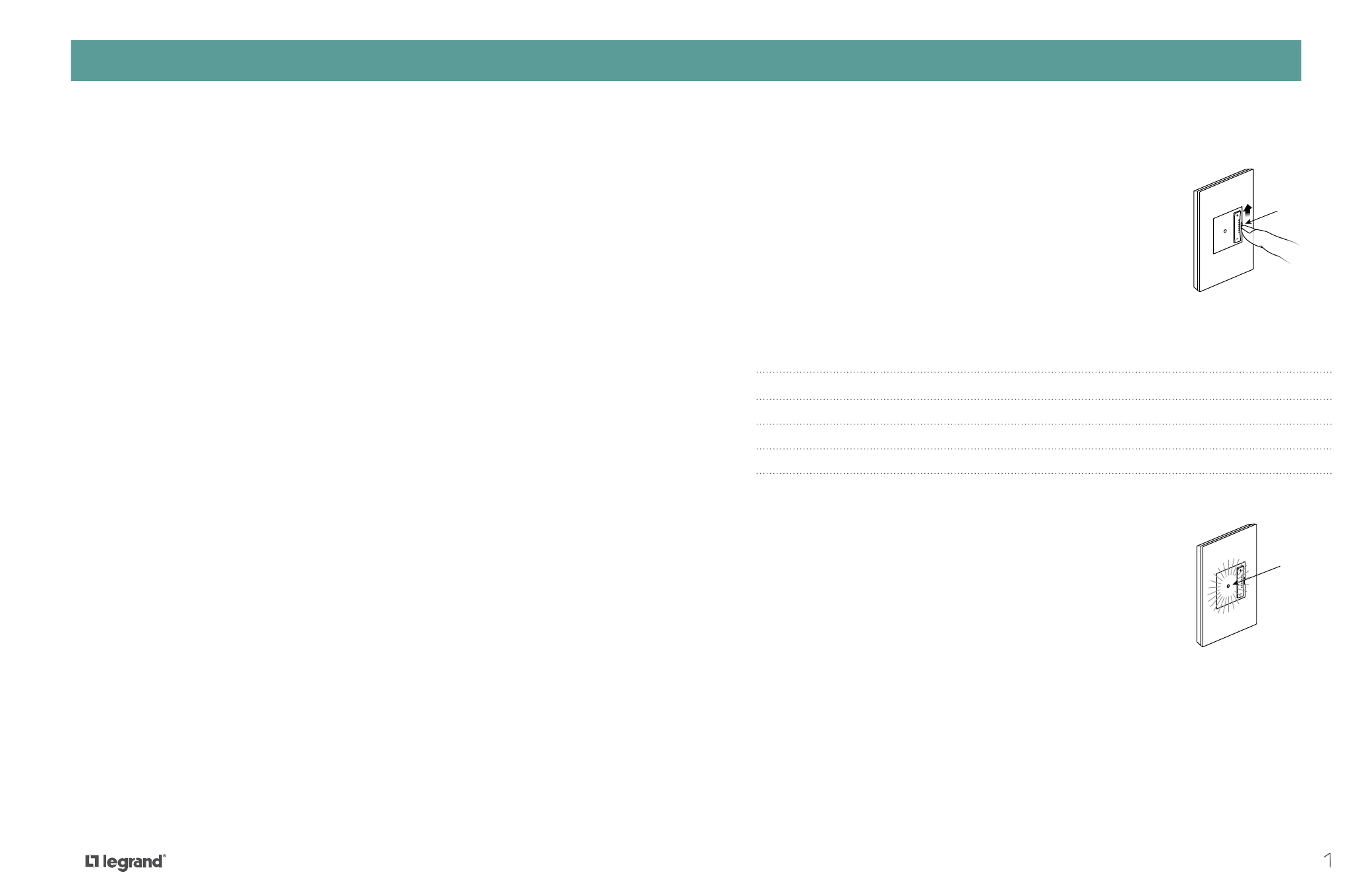

Safety Considerations
Lamp Replacement
It is a safety requirement that lighting loads be electrically isolated for relamping. To
do this, use the air-gap switch to the right of the adorne device as shown and move the
switch upwards. When the LED goes out, the load is safely isolated for relamping. To
restore normal operation, move the switch back to the down position.
Dimmer Derating
For multi-gang installations, use pliers to break off the specified heat sink fins.
De-rate the maximum load according to the following table.
Overload Protection
adorne Wireless Lighting dimmers and switches feature overload and short-circuit
protection. In the event of an overload condition, the device will stop working, and the
status LED will be rapidly flashing red at 2 Hz. Set the dimmer to off, disconnect loads
in excess of the dimmer’s rating, and try again.
Table of Contents
Rated Load
2-Gang Installation
3-Gang Installation
Incandescent/Halogen
700W
600W/600W
600W/500W/600W
MLV
700VA
600VA/600VA
600VA/500VA/600VA
EFL
5.5A
5.5A/5.5A
5A/5A/5A
ELV
700W
600W/600W
600W/500W/600W
Airgap Switch
Flashing Red
