Step 6 Attach electrical conductors to the UL Listed
duplex receptacles (provided by others).
Make sure that any ground leads are
connected to ground screws.
(See Fig. 7.)
Step 7 Attach insulator and faceplate to receptacle
using one #6-32 x 3/8" screw provided. Attach
the receptacle to the receptacle mounting bracket
with two additional screws and nuts (Provided).
(See Fig. 8.) Make sure receptacle ground lug
faces toward inside of floor box. (See Fig. 9.)
Step 8 Make sure receptacles are oriented the same as in
Fig. 9. Neatly compress wires into compartment
and push the face plate back into the box until
the tabs on the bottom of the face plate engage
the slots in the bottom of the box. Attach the
face plate to the mounting tabs of the box
using (1) #8-32 x 3/8" screw provided.
(See Fig. 9.)

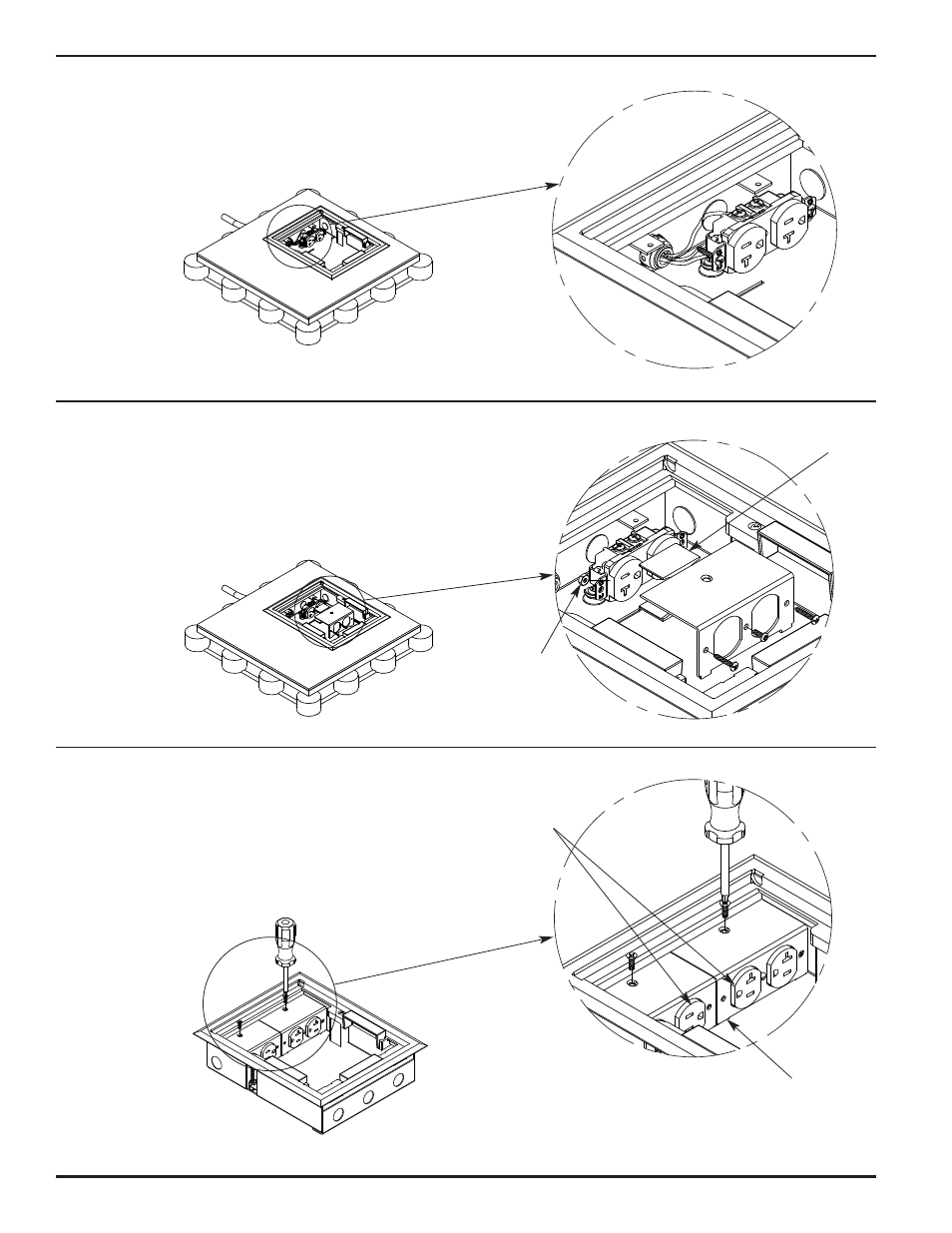

FIG. 7
FIG. 8
FIG. 9
Insulator
#6-32
Hex Nut
Engage tabs
into slots.
Proper Receptacle
Orientation
