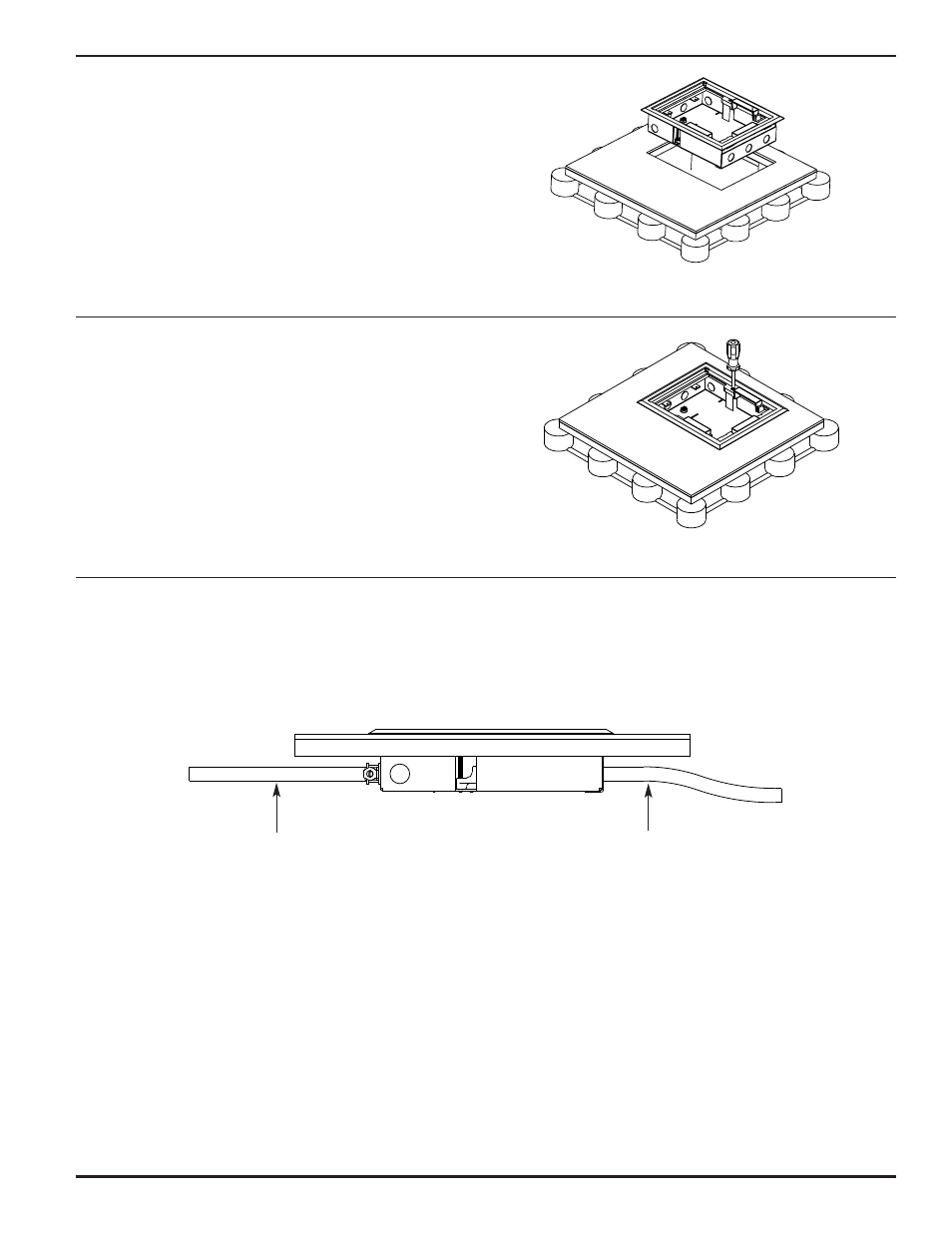

Step 3 Place Walker Shallow Raised Floor Box in
opening created in step one.
(See Fig. 4.)
Step 4 Using a Phillips screwdriver tighten the (2)
#10-24 X 2 1/4" locking tab screws on
both sides of the floor box.
(See Fig. 5.)
Step 5 Remove appropriate knockout(s) and feed
flexible conduit to the floor box. Pull wires
into the box and connect conduit to the
box with a conduit connector. Pull
communication wires into box.
(See Fig. 6.)
FIG. 4
FIG. 5
FIG. 6
Power Conduit,
not supplied by
Walker Systems, Inc.
Communication Cables,
not provided by
Walker Systems, Inc.
NOTE: The communication conduit plate does not need to be attached behind
a compartment used for low voltage. Where required by local codes,
connect conduit to the communication conduit plate. Type CMP
communications plenum cable is required in raised floor plenums when
wiring methods as described in NEC Article 300-22 are not followed.
CAUTION: Flange is an integral part of the box
assembly. DO NOT REMOVE.
Separating the Flange from the Box
may cause damage to the Flange and
Box, prevent reattachment, and may
also cause the Box to not sit properly
in the opening.
