2/2.5 Carbon Furler

May 2002

SPECIFICATIONS

■

Rod SizeS

-12, -17, -22 (7.14mm, 8.38mm, 9.53mm)

■

CLeviS Pin SizeS

" (15.9 mm, 19.1 mm)

■

LUFF TAPe Size

#6,

", (5mm)

■

Rigging, ATTACHmenT To LoWeR UniT

If no turnbuckle is required, attach the rod marine eye directly

to the integral toggle on the 2.5.
If a turnbuckle is required, it must terminate in a marine eye

that will fit directly to the integral toggle. Use a Navtec C560

turnbuckle or similar for rod with either a

" (15.9mm) pin

" (19mm) pin diameter.

■

ReTRoFiTS, FiTTing Rod

If you plan to reuse the existing rod and turnbuckle:
Lower end—If you are using a standard Navtec turnbuckle

with integral toggle, the lower body must be replaced with a

standard Navtec marine eye body. Check to make sure that

this eye will mate with the Harken integral toggle. Two cross

pin sizes are available. They are the same size as the clevis

pin. See above.
Upper end—You must take apart the marine eye so that you

are left with a threaded nosepiece. Check to see if this is pos-

sible. If necessary, contact Navtec or Riggarna for correct pro-

cedure. You will slip carbon foils over this threaded nosepiece.

If you cannot remove this fitting you will need to cut the rod.

■

TooLS ReqUiRed

Sharp Hacksaw, Sandpaper, Small Triangular File, Heat Gun,

Razor Knives, Sandpaper.

■

SUPPLieS ReqUiRed FoR gLUing FoiLS

Rigging tape, blue masking tape, 9430 Hysol Epoxy

(supplied), Scissors, mixing cup, mixing stick, glue brushes,

acetone, paper towels cut into quarters, plastic to cover

splint area, clear packaging tape, wood alignment stick

and placemat-sized table covering.

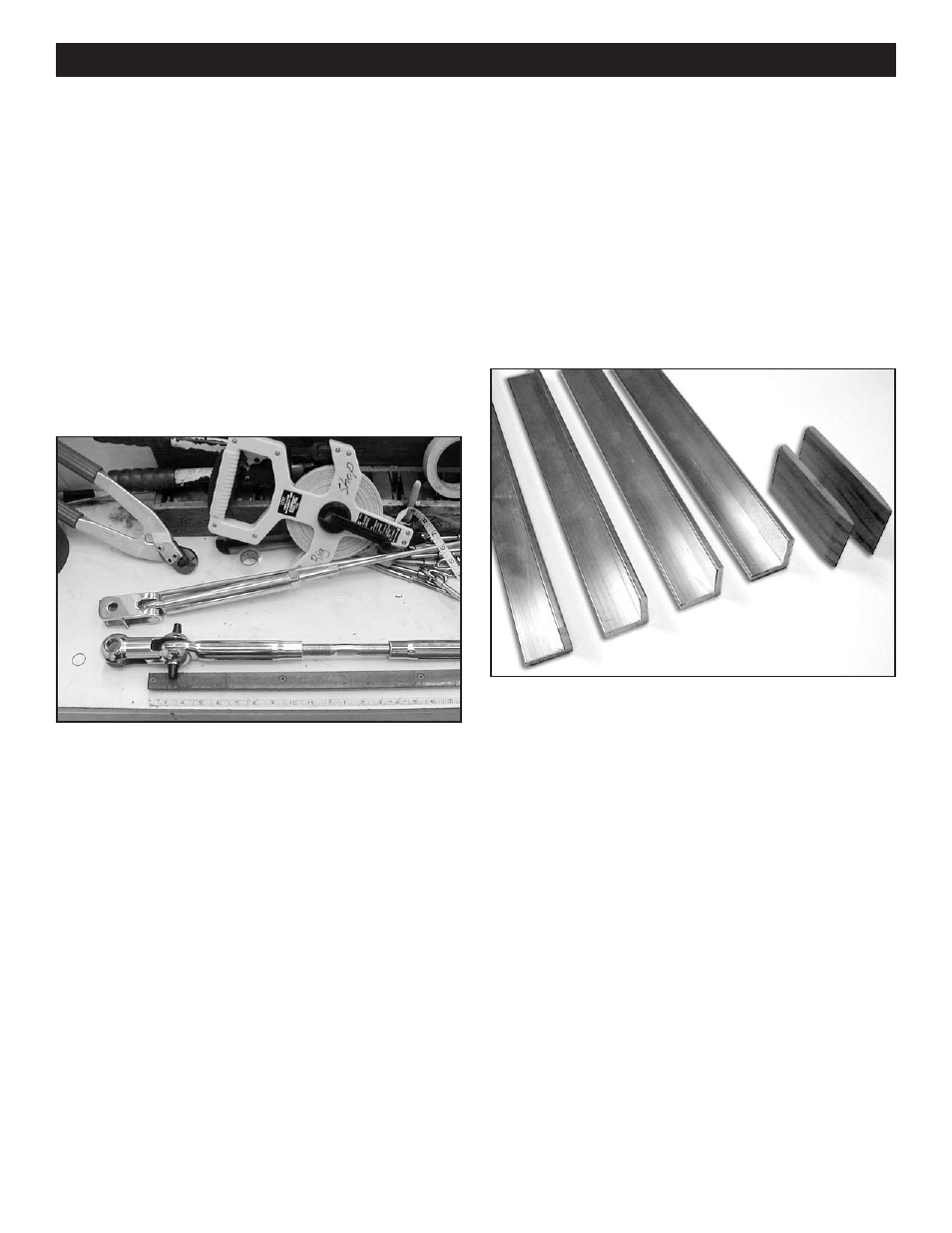

Alignment Splints - Use 90° angle extrusion to make splints.

Sides to be about

" (19mm). Cut extrusion into 8" (203mm)

lengths and remove burrs from cutting.

■

HeAdSTAy LengTH

Note: When cutting rod to length or making up new rod, make

sure that you can take apart the rod terminal (usually the top

eye) so that you are left with a threaded nosepiece.
Make up the rod headstay or adjust the turnbuckle so the
