ASSEMBLY
December 2001 2/2.5 Carbon Furler 11

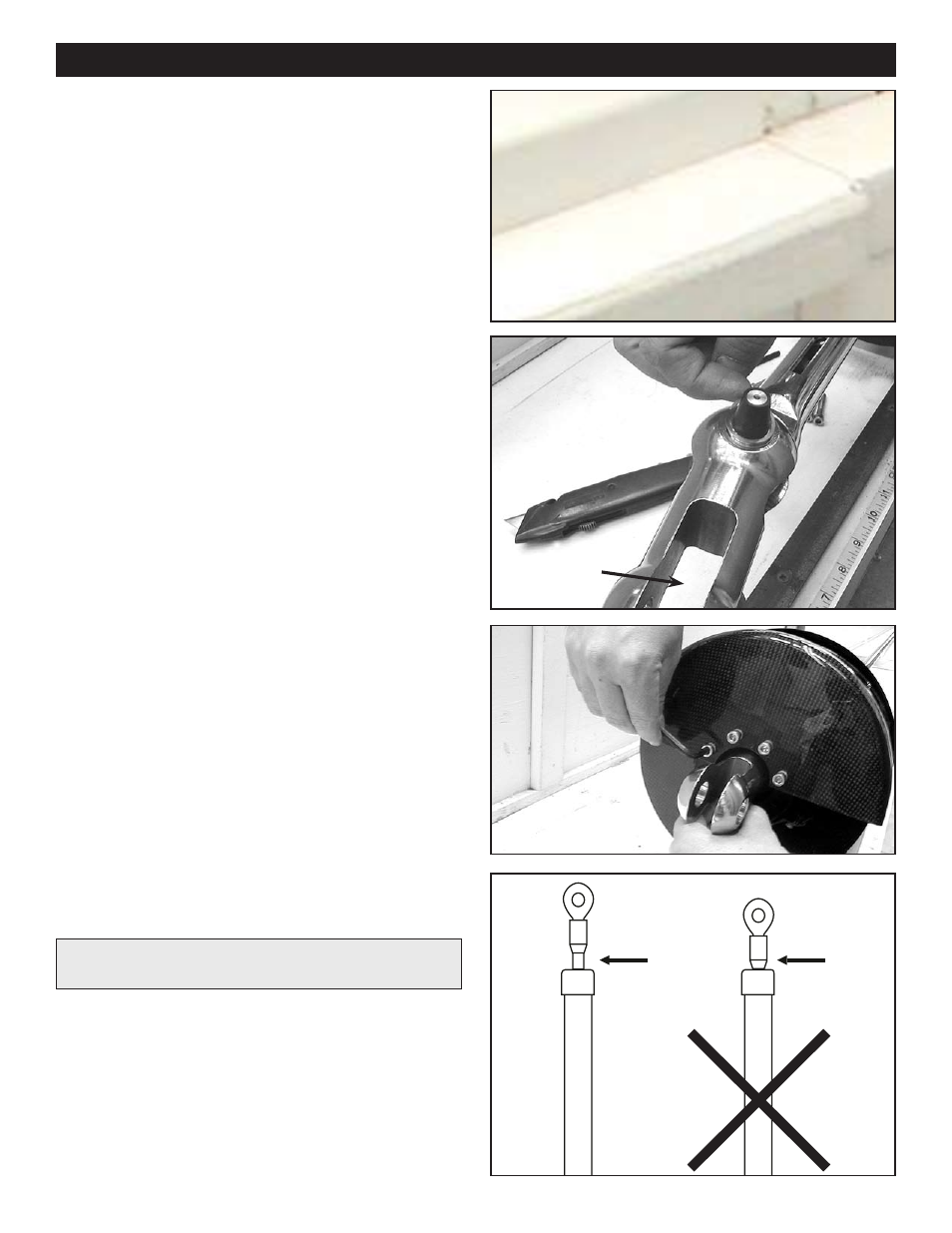

Slide lower unit onto bottom foil.
Assemble turnbuckle. Attach turnbuckle eye to toggle using
cross pin with tapered ends. Secure Cross Pin using Circlip
(Smalley Rings) supplied. Note: Make sure the end of the
toggle with the long slot is towards the bottom.
Bring the lower unit down so that Cross Pin seats in the
housing. Install cap using Blue Threadlocker ® on the
eight screws.
Long Slot
■ FoiL HeigHT
Check the clearance between the top of the foil and top
terminal.
WARning: It is critical to have clearance between the top
foil and the top rigging fitting when the stay adjuster is in
the fully closed position. If the fittings touch, the unit will
jam or in the case of a Sta-Lok fitting, the terminal may
become unscrewed. This could cause catastrophic
failure to the spar and a life threatening situation
It is the responsibility of the rigger to check clearance.
TIP: Check clearance when the unit is on the ground,
before raising the headstay into position.
