VT 520 Terminal Setup
Page 4 MDE-4974A Boundless® VT 520 Terminal and Okidata® Printer Setup for Gasboy® Fuel Management Systems · October 2012
VT 520 Terminal Setup
Install and complete the setup of the terminal as specified in the manufacturer’s setup
instructions and enter the SET-UP mode to change parameters on several screens. This enables
the terminal to function with both the Okidata printer and Gasboy Fuel Management System.
When setting up the terminal, use the following keys as required.
Key(s) Usage
CAPS LOCK and PRINT SCREEN Press these keys simultaneously to enter or exit the SET-UP mode.
(Up/Down/Left/Right arrows)
Press these keys to move among menus or within lists or to highlight a
parameter.
ENTER Press this key to start action or choose the currently highlighted parameter
value.
Setup parameter values described in the following steps are critical and must be
configured as shown. All other parameters must be left at their default values.
IMPORTANT INFORMATION
1 Press CAPS LOCK to activate the caps lock feature. Lock appears in the lower right-hand
corner of the screen.
2 Press CAPS LOCK and PRINT SCREEN simultaneously to enter SET-UP mode
(see Figure 1 ).

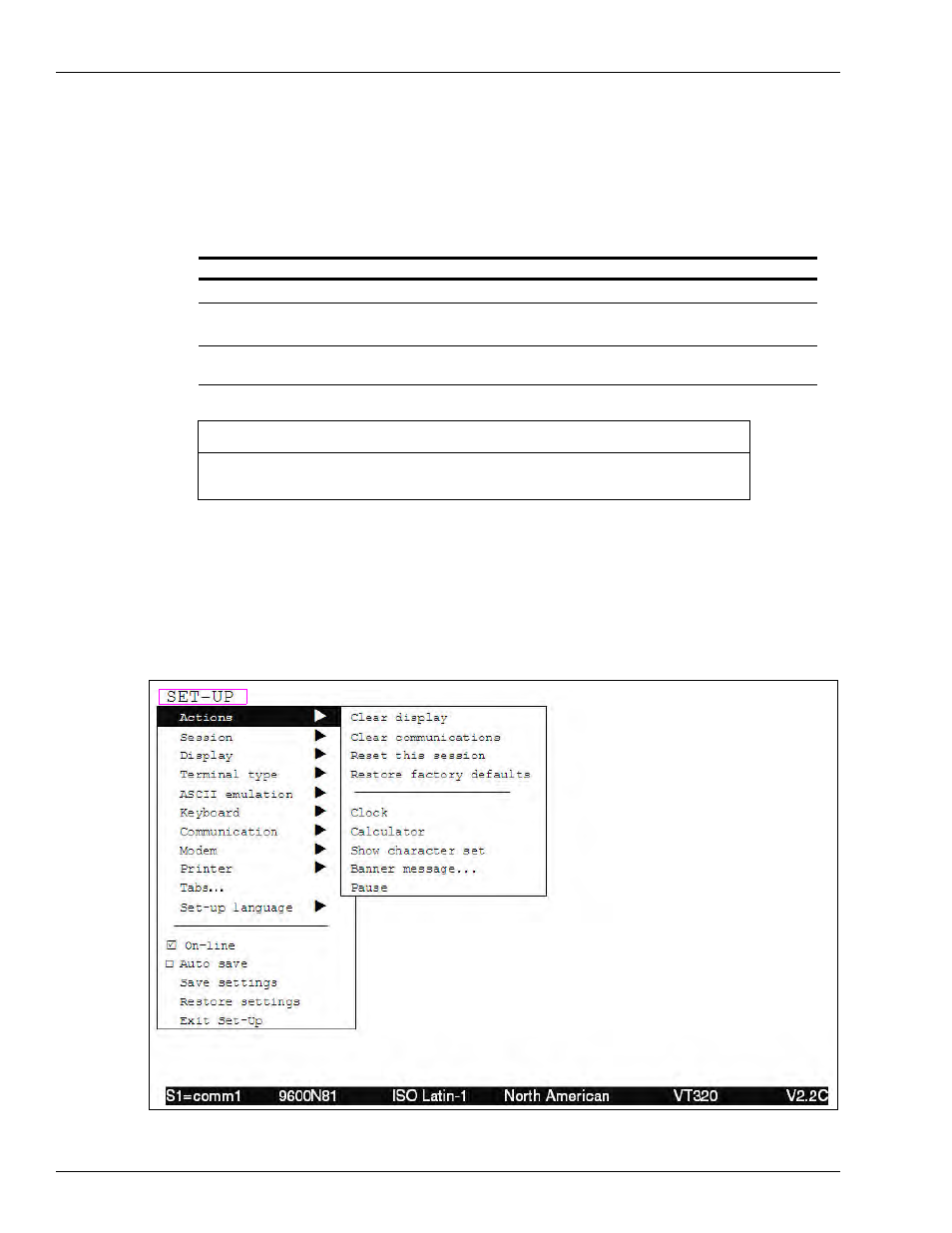

Figure 1: SET-UP Mode
Note: The status line at the bottom of the screen shows the current terminal settings.
