OUTPUT: Announcer Monitor
The OUTPUT: Announcer Monitor area is used to send data to the announcer’s monitor.
Give the output device a descriptive Name.
Select a previously configured Port.
Set the Protocol to Terminal.
5.2 Editing Ports
To edit an existing port, double-click it in the Configure Ports area.
5.3 Deleting Ports
To delete a port, click on the port number to highlight the both the Name and Settings values,
and then press the [Delete] key on the keyboard.
5.4 Monitoring Ports
1. Exit the Input/Output Configuration
window (Figure 32).
2. Go to View > Monitor Ports.
3. In the Monitor Ports window (Figure 34),
select one or more configured ports, and
then click OK.
4. The chosen port(s) will appear in the
DLStream Monitoring window. Use these
windows to view incoming and outgoing
data. If there is no data coming into or
going out of the software, there may be a
connection problem between devices.
Refreshing Outputs
Go to File > Refresh Outputs to resend all chosen data from the configured outputs.

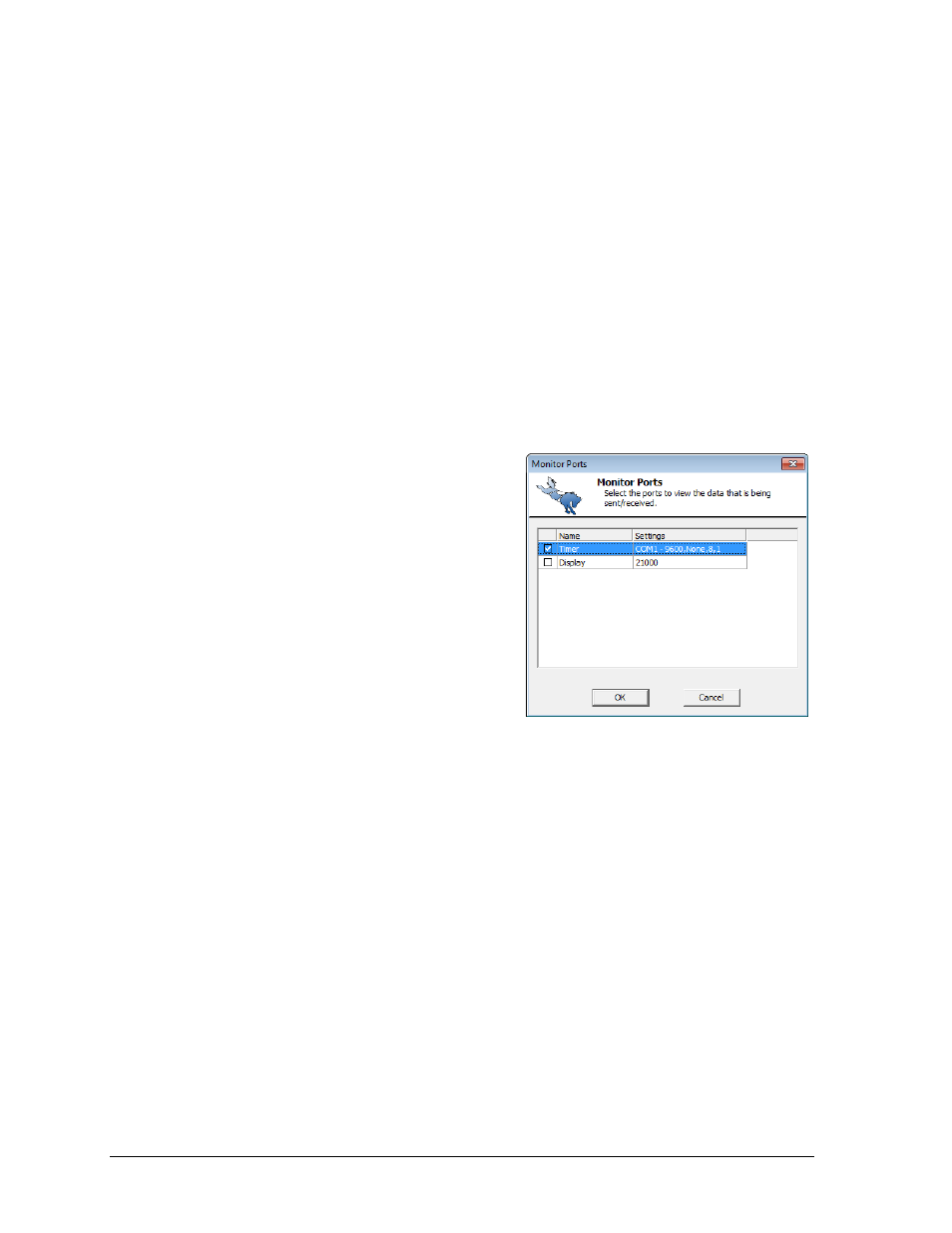

Figure 34: Monitor Ports
