Comtech EF Data SDR-54A User Manual
Page 51
SDR-54A Satellite Demodulator
Revision 4
Reed-Solomon Option
MN/SDR54A.IOM
CAUTION
Do not overtighten the securing screws. Damage to the top chassis can
occur.
5. Position the top chassis in place ensuring the tabs are aligned. Press the top chassis
into the bottom while ensuring the LED light tubes and push-button switches are
aligned. Secure the top chassis with the six screws, using a driver.

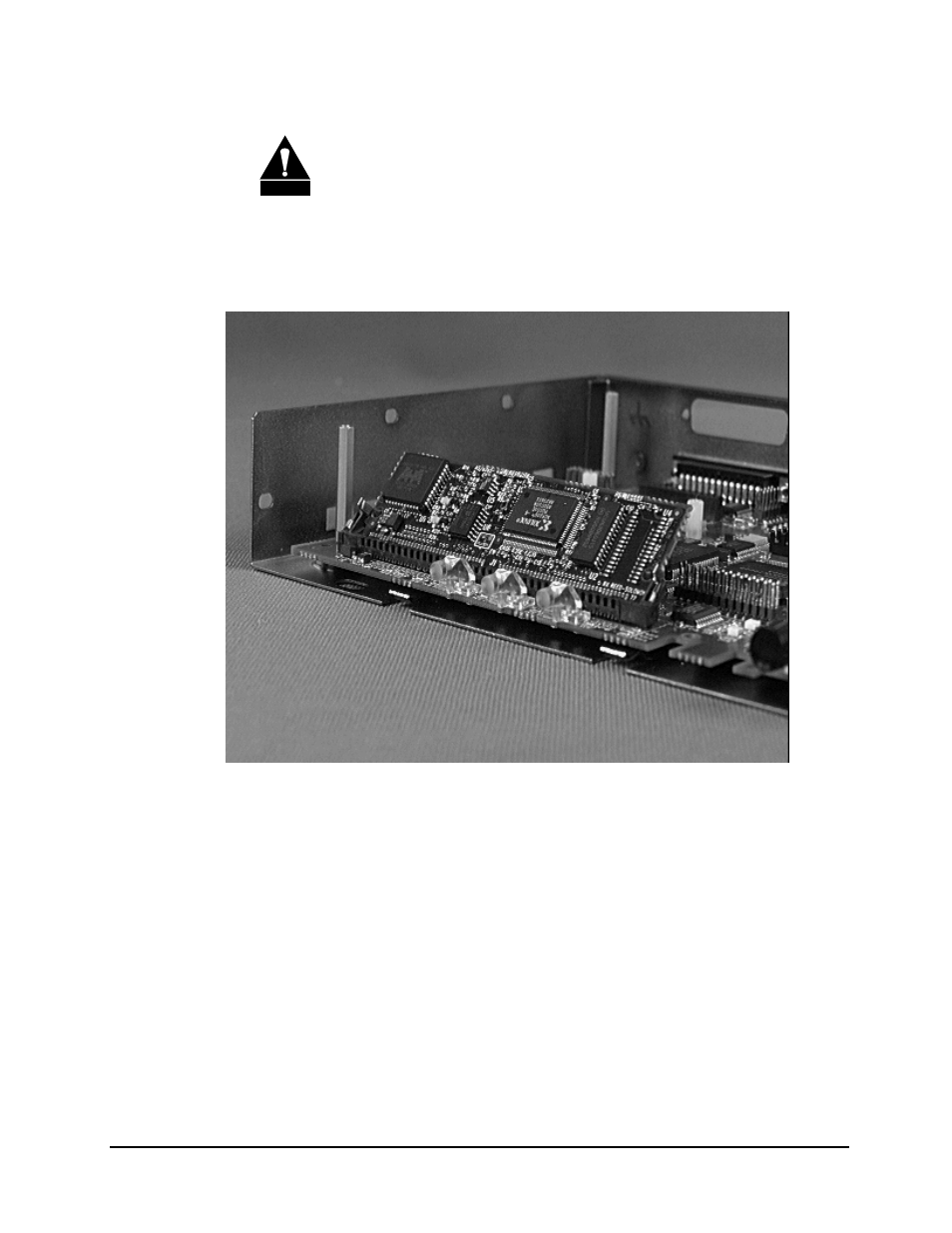

Figure 6-4. Installation of Reed-Solomon Card (AS/6285)
6–5
