Chapter 4. Operation
This chapter describes the operation of the indicators and controls located on the unit.
4.1 Front
Panel

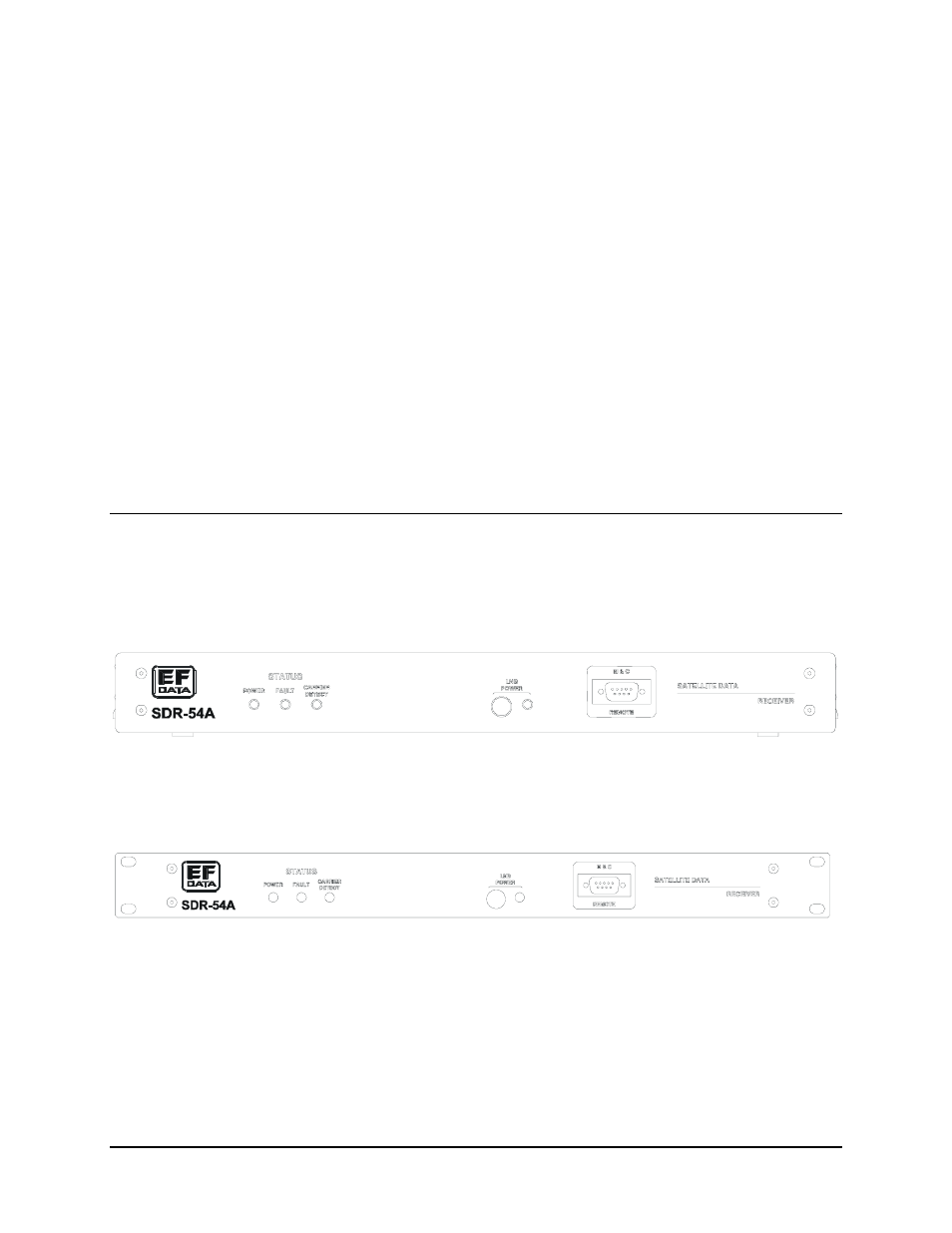

Refer to Figure 4-1 and Figure 4-2 for front panel views of the Desktop and Rack Mount
versions of the demodulator.
Figure 4-1. SDR-54A Desktop Unit (Front Panel)
Figure 4-2. SDR-54A Rack Mount Unit (Front Panel)
4–1
