CST-5005 C-Band Satellite Terminal

Single Thread System Installation

Rev. 1

2–25

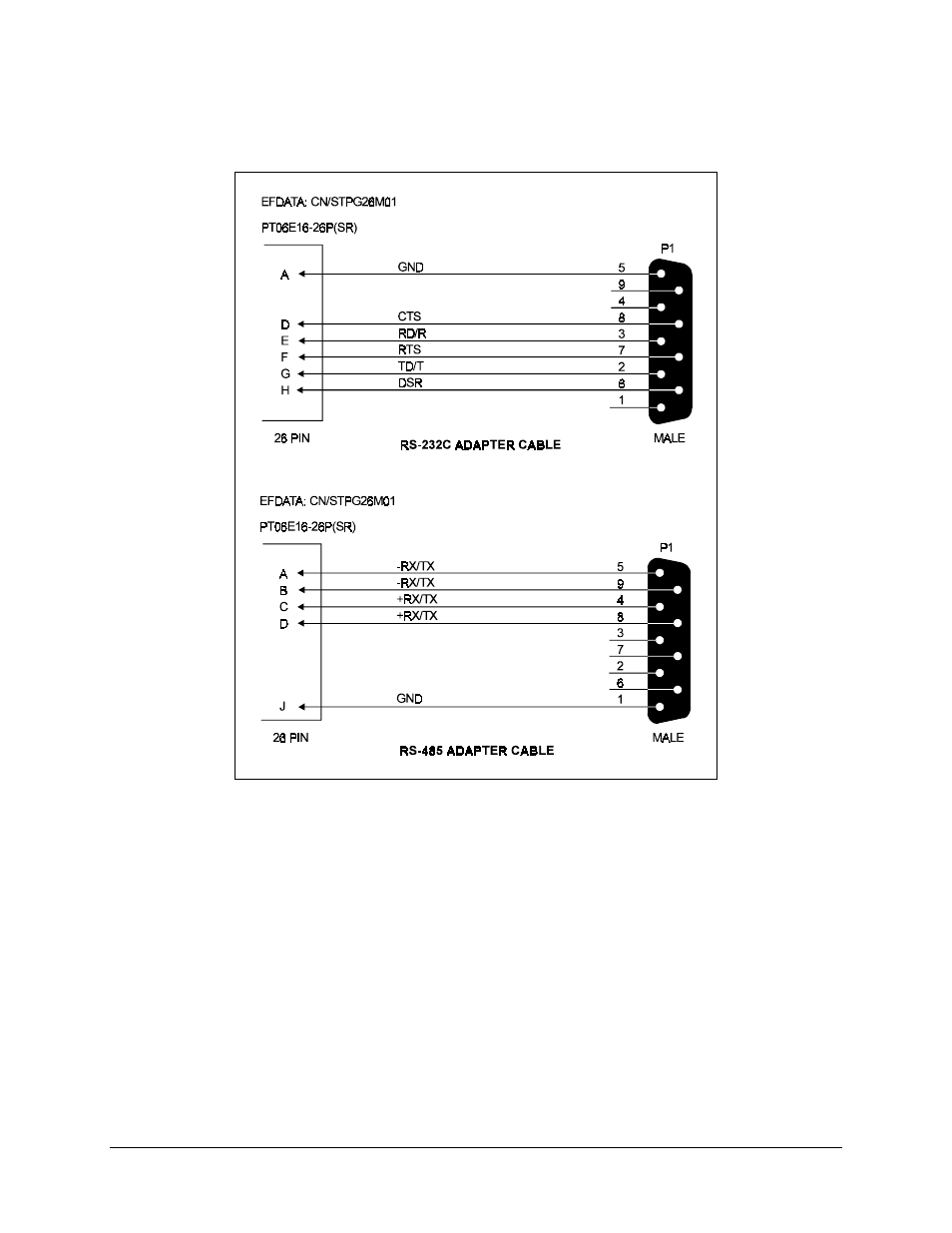

Figure 2-2. Serial Adapter Cables

2.5.7 GND

A #10-32 stud is available on the rear for the purpose of connecting a common chassis
ground between all of the equipment.
