InstallatIon
J11 Annunciator Outputs
18.1 Description
The four programmable annunciator outputs can be programmed to indicate the activity of the panel zones
or conditions occurring on the system. Annunciator outputs do not provide a voltage but instead switch-
to-ground a voltage from another source and are rated at a maximum 30 VDC @ 50mA. The outputs can
respond to any of the conditions listed in the Description section of Dry Contact Relay Outputs.
18.2 Model 300 Harness Wiring
Access the open collector outputs by installing DMP 300 Harness on the 4-pin header labeled J11. The
output locations are shown below.
Note: For UL applications, devices connected to the outputs must be located within the same room as
the panel.
Output Color Wire Output Color Wire
3 Red 1 5 Green 3
4 Yellow 2 6 Black 4
18.3 Model 860 Relay Module
Connect a Model 860 Relay Module to the J11 on the XR2500F panel to provide relays for outputs 3-6. Use
these relays for electrical isolation between the alarm panel and other systems or for switching voltage
to control various functions. Power is supplied to the relay coils from a single wire connected to the
panel auxiliary power terminal 7. The module includes one relay and provides three additional sockets for
expansion of up to four relays. Mount the 860 inside the panel enclosure using the 3-hole pattern and plastic
standoffs. Refer to the 860 Module Install Sheet (LT-0484) as needed.
Model 305 Relay Contact Rating:
1 Amp at 30 VDC (allows .35 power factor)
J23 6-Pin Header
19.1 Description
The XR2500F Command Processor™ panel supports RS-232, LX-Bus and Wireless Bus expansion operation.
These operations cannot function at the same time. Install a jumper on one pair of J23 headers to indicate
how the panel is programmed to operate. Refer to the table below when installing a jumper on J23. When
a jumper is installed or moved on the 6-pin header, briefly reset the panel using the J16 jumper to activate
the selected operation.
J23 6-Pin Header
Letter Operation
R Standard RS-232
L LX-Bus
X Wireless Bus
LEDs
Xmit
Rec
J22
LX
J23
J21
RS-232
R
L
X
Overcurrent
(OVC) LED

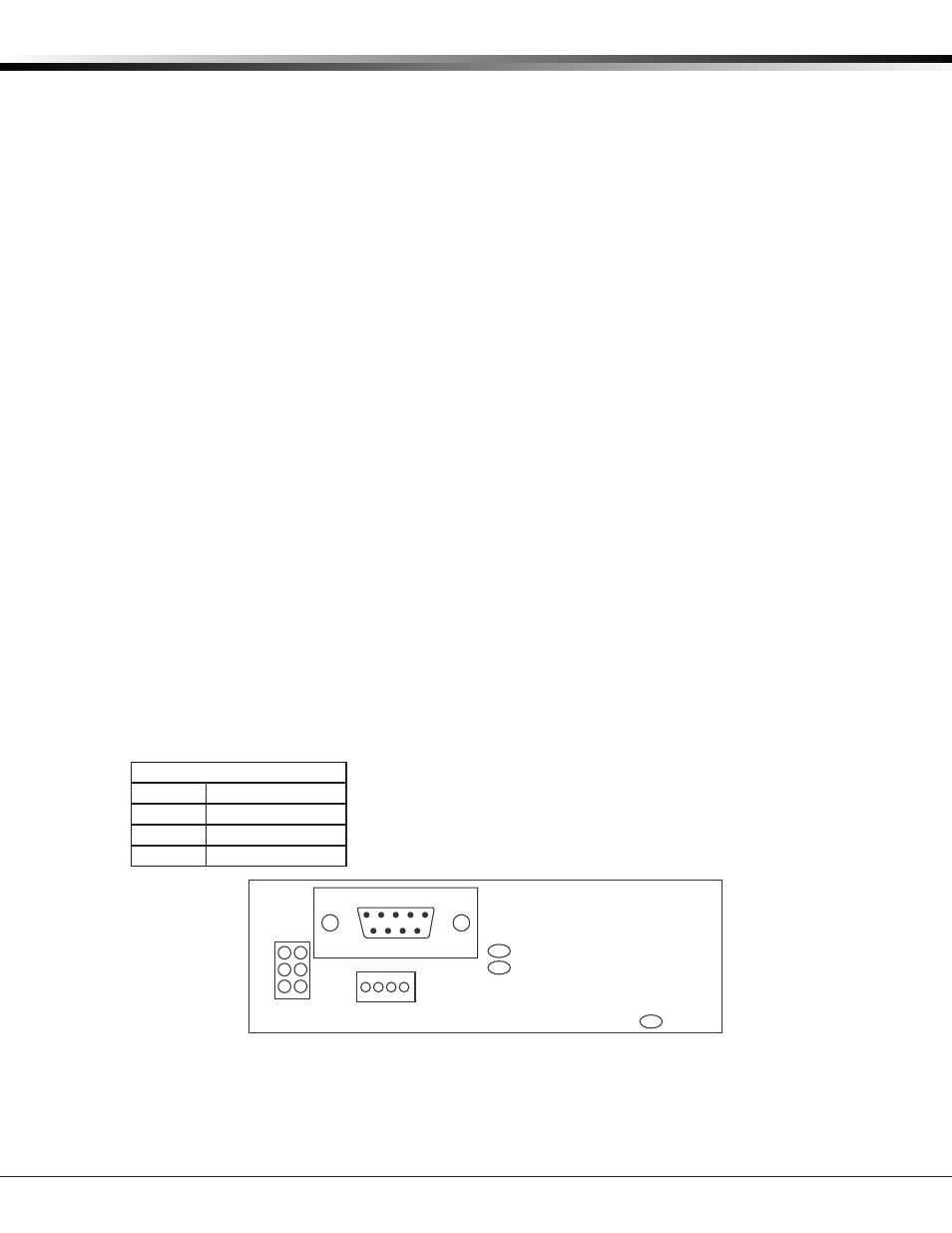

Figure 14: J23 6-Pin Header
