J1 ethernet connector, 1 description, 2 ethernet leds – DMP Electronics XR2500F User Manual

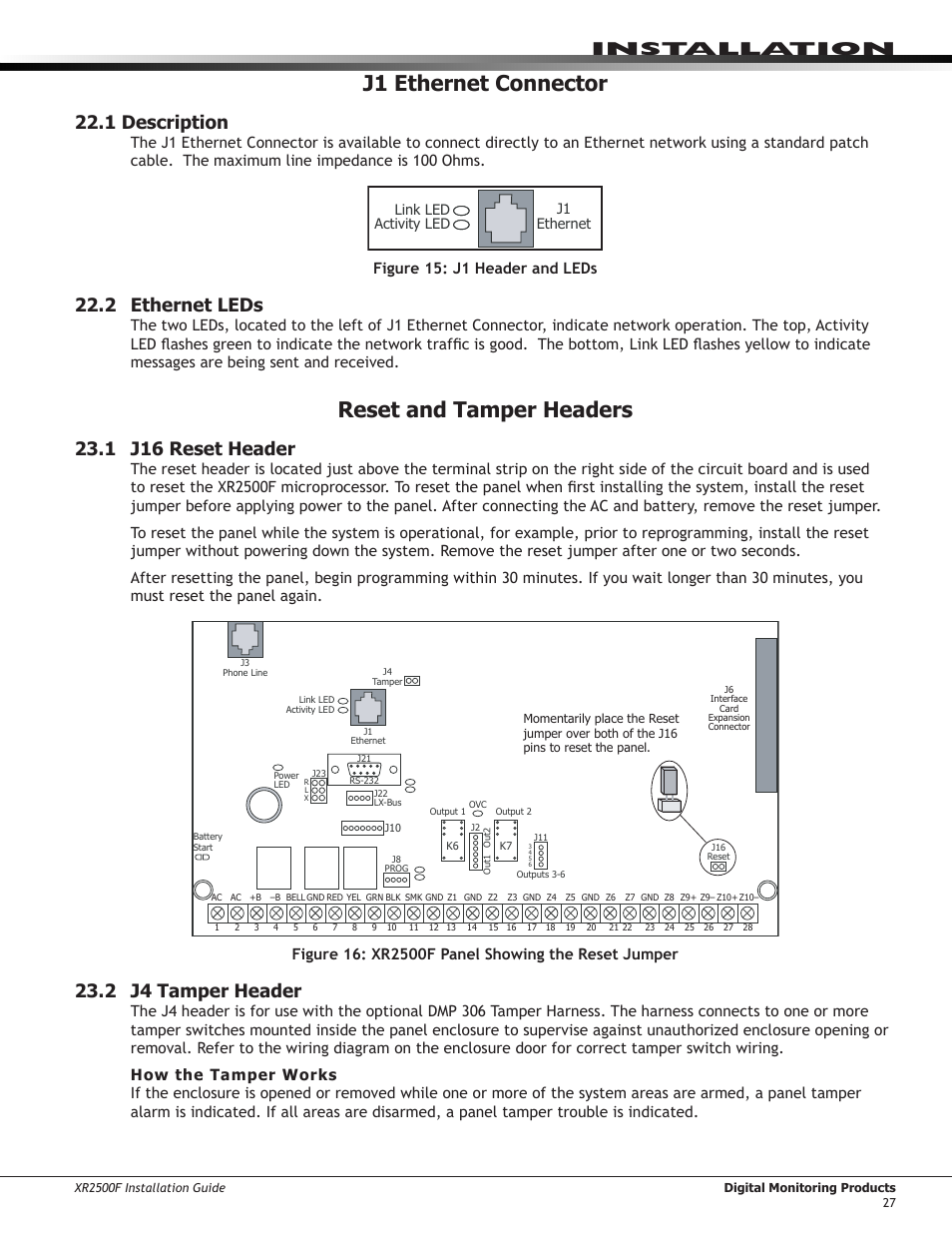

Page 35: Reset and tamper headers, 1 j16 reset header, 2 j4 tamper header, Installation, Figure 15: j1 header and leds

J1 ethernet connector, 1 description, 2 ethernet leds | Reset and tamper headers, 1 j16 reset header, 2 j4 tamper header, Installation, Figure 15: j1 header and leds | DMP Electronics XR2500F User Manual | Page 35 / 60 J1 ethernet connector, 1 description, 2 ethernet leds | Reset and tamper headers, 1 j16 reset header, 2 j4 tamper header, Installation, Figure 15: j1 header and leds | DMP Electronics XR2500F User Manual | Page 35 / 60
