The Z8051 OCD In-System Programmer
Z8051 On-Chip Debugger and In-System Programmer
User Manual
75
3. The ISP checks whether the target device is locked or unlocked. If the target is locked,
the Blank Check function is canceled.
4. The ISP determines if the code area is entirely erased.
5. The ISP determines if the configuration area is entirely erased.
Set Configuration
Because each device in the Z8051 Series is configured differently, use the Set Configura-
tion function to configure the target device’s I/O pin functions, oscillation method, code
protection, etc.; see Figure 84 for an example.
Window Menu
The Window menu, shown in Figure 85, can be used to modify the arrangement of child
windows or to directly select a child window.

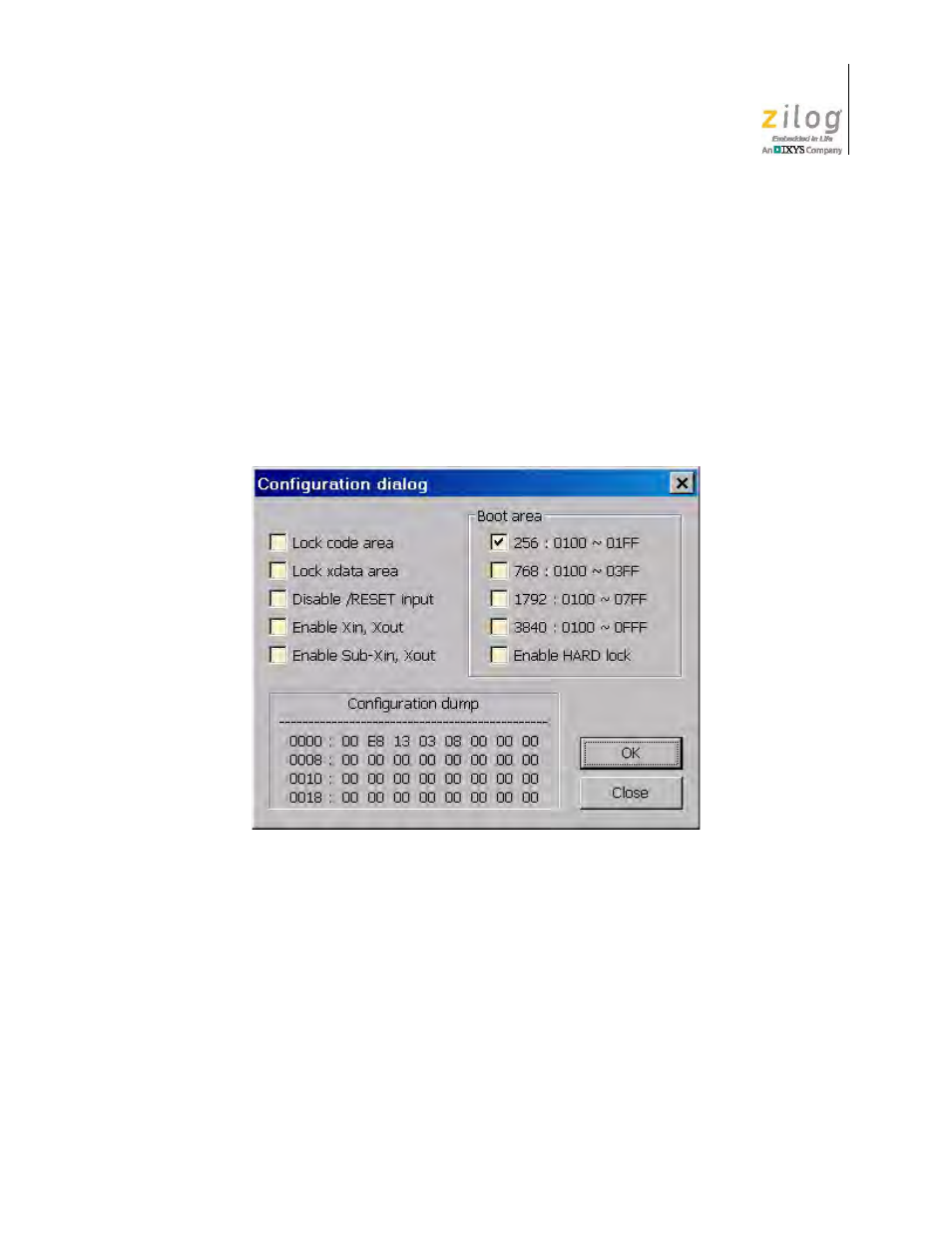

Figure 84. Configuration Dialog
