System setup – NEXCOM VMC 1000 User Manual
Page 43
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
30
VMC 1000 User Manual
Chapter 3: System Setup

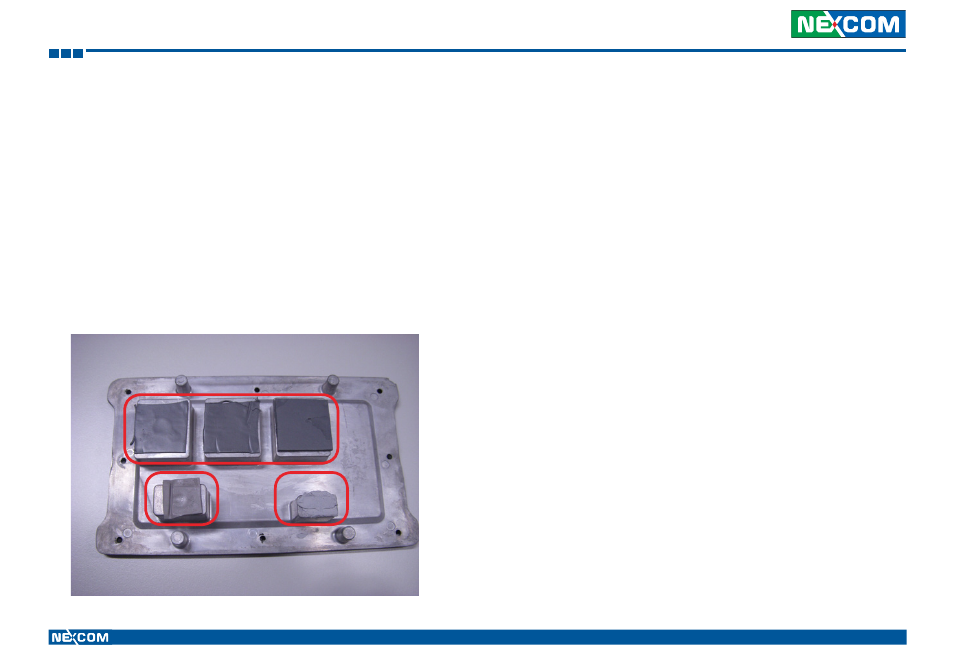

4. Before you install the rear cover, please check the all thermal pads are on
the heatsink.
System Setup
3. Insert the module into the Mini PCI Express slot at a 45 degrees angle
until the gold-plated connector on the edge of the module completely
disappears inside the slot. And then attach RF cable to the module.
