Chapter 2: Jumpers and Connectors

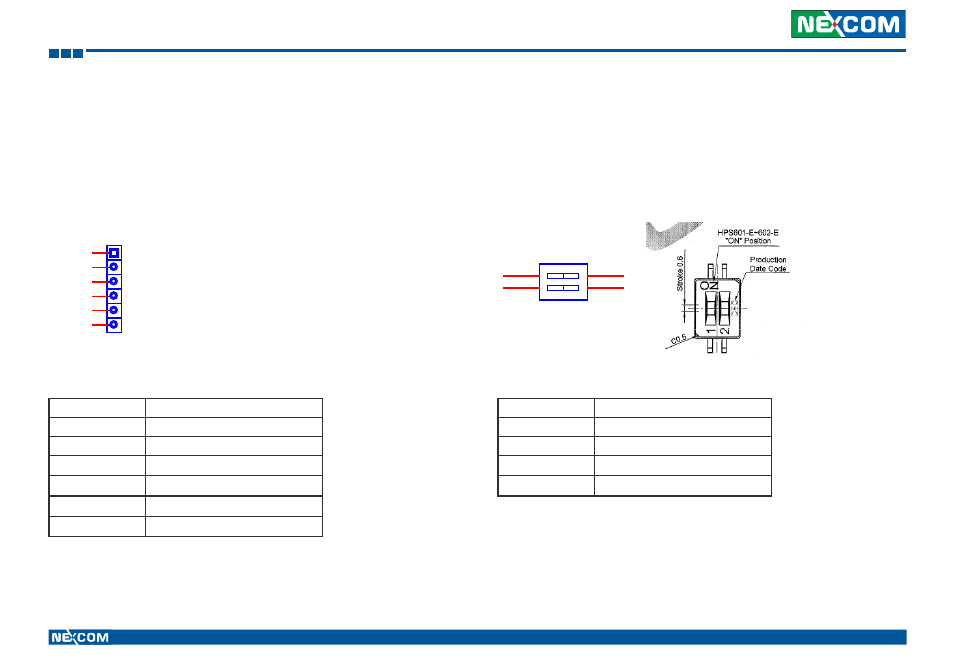

GAL Download Connector
Connector size: 2.54mm PIN HEADER 6Pin 180

O

Connector location: JP2

PIN

Definition

1

V3P3_G

2

GND

3

TCK

4

TDO

5

TDI

6

TMS

JP2

PIN-M-180-2.54mm

1

2

3

4

5

6

Input Voltage Control Switch
Connector size: 2x2 DIP SWITCH 180

O

Connector location: SW3

PIN

Definition

1

POWERSW

2

12V24V

3

GND

4

GND

ON

SW3

1

2

3

4
