Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved 21 VMC 1000 User Manual
Chapter 2: Jumpers and Connectors

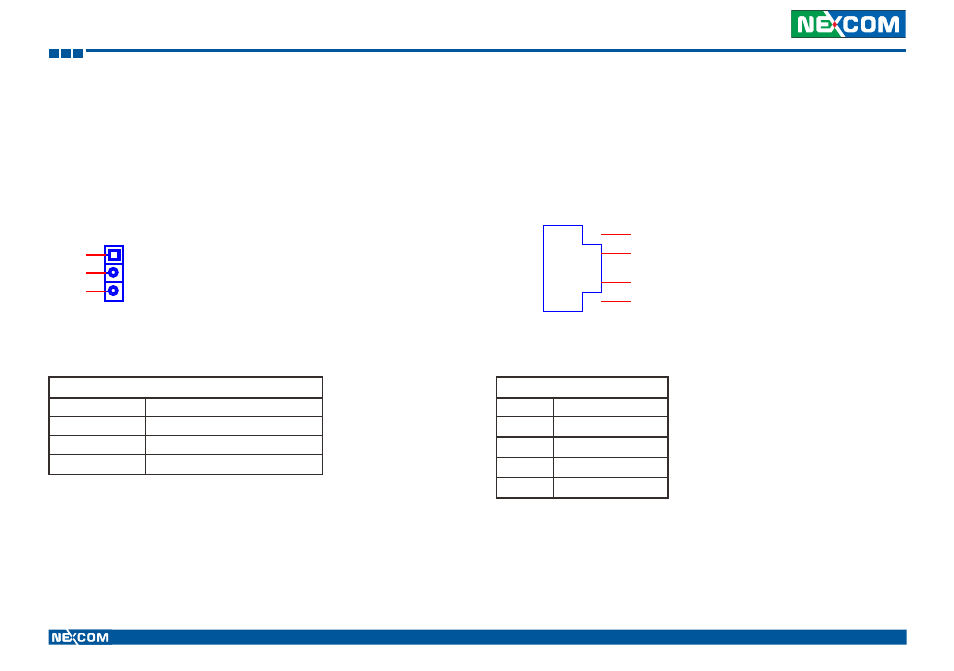

RTC Control Connector
JP1
PIN Definition
1 RTCRSTN
2 RTC_CLR
3 RTCGND#
JP1
PIN-M-180-2.54mm
1
2
3
RTC Battery Connector
Connector size: WAFER-M-180-1.25mm
Connector location: J4
J4
PIN Definition
1 GND
2 VBAT1
MH1 GND
MH2 GND
J4
WAFER-M-180-1.25mm
G1
MH1
G2
MH2
1
1
2
2
